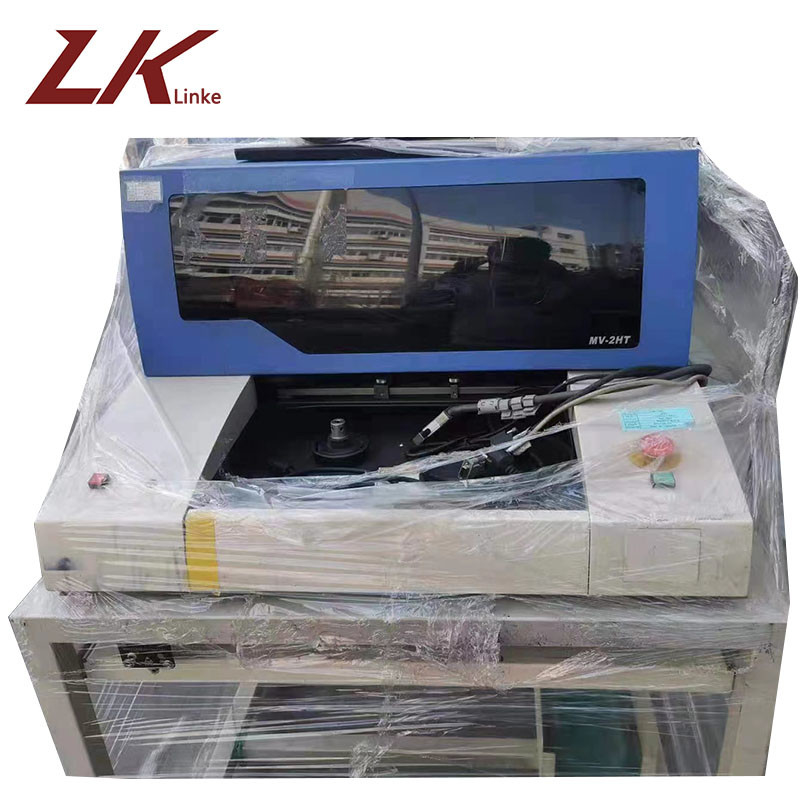

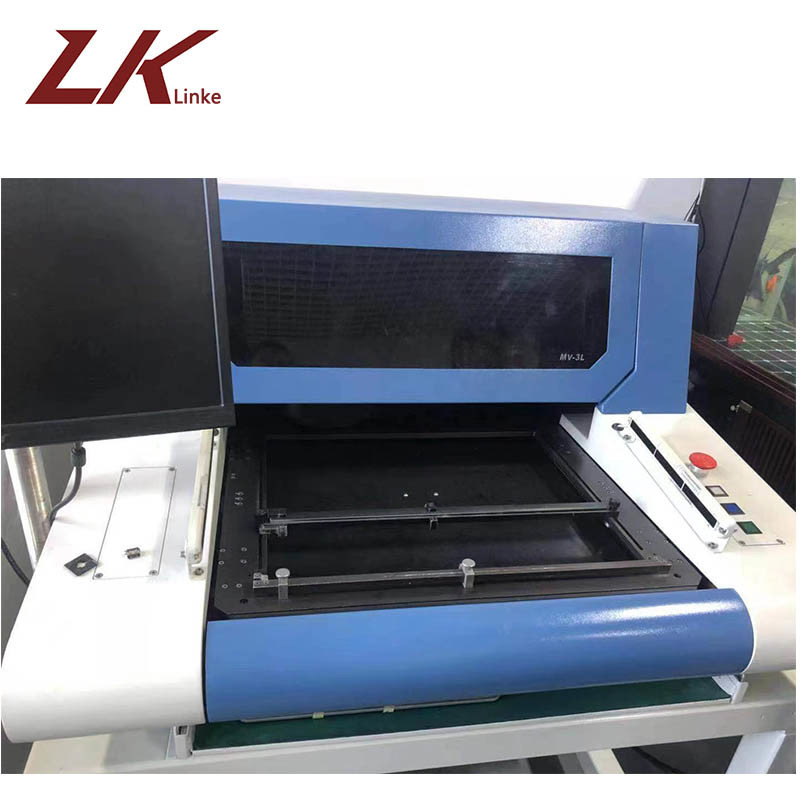

AOI machine brand new status

AOI hardware structure: 1. Equipment body 2 The main body of AOI equipment is composed of transmission track, 1.3 million phase-speed camera, X-Y axis motor and computer.

Product Description:

Functions of AOI,

1. AOI, as a useful supplement to online testing (ICT), accurately confirms and identifies the variability of components on printed circuit boards (PCBs) and improves the quality of PCBs.

Advantages of AOI:

1. The cost of checking and correcting the mounting defects of the pcb board during the process inspection is far lower than that after the final test and inspection

2. The trend of process performance, mounting displacement and incorrect tray installation can be found and corrected at an early time in the whole process, and the same defective PCB board with repeated soot detection will be rejected during the function test and final inspection.

3. AOI after reflow soldering can find the soldering effect of pcb board as early as possible. For example, the loss' displacement 'and skewing' polarity of the element and the tin eating effect of the element.

Features:

1. The CAD file includes X, Y rotation angle position and material number (must be complete).

2. Adjust the width of the rail type to be the same as the PCB, so clamp it

3. When making the program, PCB should be visually inspected and confirmed as OK by quality assurance (first article).

4. When adjusting the program, it is necessary to use a good product board for debugging (multiple pieces) and check the parts backhanded and polarity

AOI Introduction
