1428L Industrial Nitrogen Electronic Dry Cabinet IC Moisture Proof Cabinet
IC moisture-proof cabinet, drying cabinet,1428L industrial nitrogen cabinet, electronic component cabinet
Name: Moisture-proof box/drying cabinet
Brand: CNSMT
Model: FCM1428(20-60%)/ FCD1428(10-20%)/ FCDE1428(1-10%)
Volume: 1428L
Humidity range: 20-60% / 10-20% / 1-10% digital display

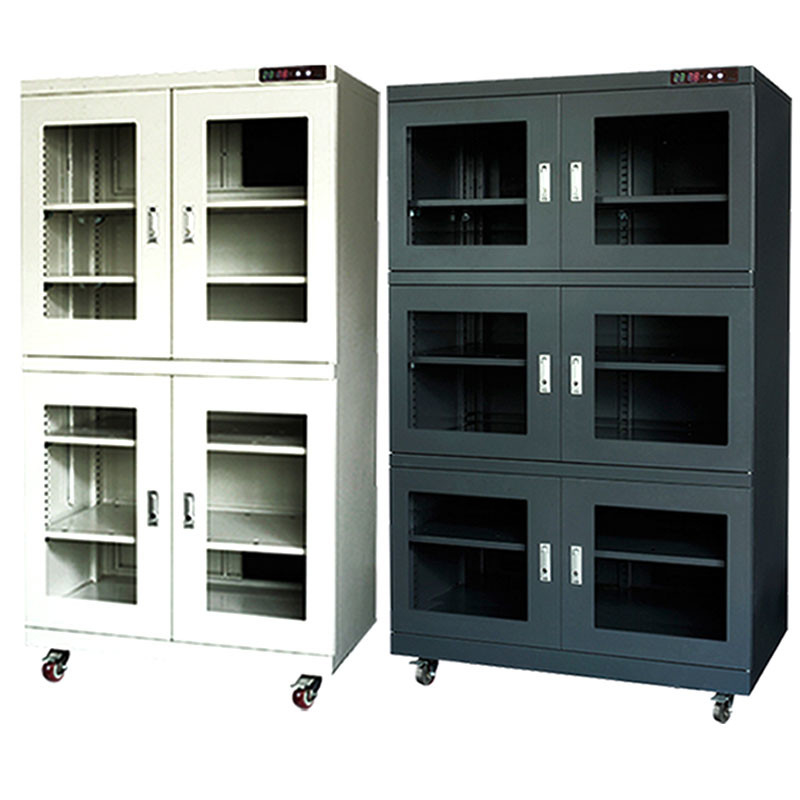

Color: black model/off-white model optional
Shelves: standard 3 adjustable shelves, load-bearing 100kg/layer
Size specification: length * width * height: 900*600*1000mm
Surface treatment: pickling and phosphating-electrostatic spraying-high temperature baking
| FCM1428B |
Humidity range: 20-60%RH |
| FCD1428B |
Humidity range: 10-20%RH |
| FCDE1428B |
Humidity range: 1-10%RH |
| DG1428B |
Humidity range: 1-60%RH |
| Volume: 1428L Material: 1.2mm cold rolled steel |
|
| External dimensions: W1200*D710*H1940mm |
|
| Internal size: W1198*D680, H1840mn |
|
| Shelves: 5 movable shelves |
|
| Color: black (anti-static type) white (normal type) |
|
In a space that can ensure "airtightness", use dehumidification and dehumidification technologies that can "effectively reduce" the original moisture in a specific volume space to achieve "moisture resistance", "mildew", "antioxidation", and "anti-oxidation". Requirement functions such as rust, anti-deterioration, and quality change prevention. Such boxes and cabinets are called "moisture-proof boxes" or "moisture-proof cabinets".
However, the use of this form requires plugging in the power supply and long-term use of the moisture-proof box and moisture-proof cabinet of the electric device, which are called "electronic moisture-proof box" or "electronic moisture-proof cabinet"
Industrial application
Living consumption
1. Camera moisture-proof box
2. Keep moisture-proof cabinets for collectibles, antiques, calligraphy and painting
3. Wardrobe, shoe cabinet, moisture-proof cabinet
4. Other general storage and storage moisture-proof boxes and cabinets
5. Valuable leather goods (bags), etc.
6. Precious metals, gold and silver jewelry, etc.
Examples of storage of cameras, etc.
Examples of storage of cameras, etc.
Example of storing precious items
Example of storing precious items
Industry and commerce, technology industry
1. Nitrogen moisture-proof box
2. IC, chips, wafers, semiconductors, electronic components... etc. Keep moisture-proof and dehumidifying drying cabinet
3. Archives, important documents, preservation and custody Moisture-proof cabinet
4. Special moisture-proof cabinet for storage and storage of precision instruments and meters
WELCOME TO SELECT THE DRY CABINET OF OUR COMPANY.
PLEASE READ THIS CAREFULLY BEFORE TO USE.
Important Notice
.
When first using, please carefully read the instruction. If you do not operate
according to the instruction and cause problems, the factory will not bear any
responsibilities.
Please do not put the cabinet nearby air outlet (such as beside the air-conditioning
and extractor fan, under the fan, at the door,etc. ) and in the place of heavy smog
and high moisture, which will affect the effect of humidity control.
Please put the cabinet in the room with no direct sunlight.
To keep good effect of humidity control, there should be about 20cm between
cabinet and wall.
When electrifying at first time or using again after leaving unused for a long time,
please run more than 12 hours with empty container, and affirm that humidity has
moved down to lower level.
Notice of placing things:
.
When putting items in the cabinet, please pay attetion: not close to the
dehumidification unit and the exhaust vent should not be jammed by tiny things, to
leave certain dehumidification space for the unit and avoid affecting the
dehumidifying effect.
When first putting items in the cabinet, due to the large quantity of items or high
moisture in them, the cabinet needs longer time to reach the humidity you have set.
In addition, when taking or putting items, please minimize the time of opening the
door, to prevent the inner humidity from rising too high.
When placing the foods and chemicals, please pack them closely, to avoid taint
of odour and to affect the effect of moisture absorption.
In the digital cabinet, red means temperature, green means humidity .
Functions and Features
The dehumidification unit is durable and silent because of advanced technology
of dehumidification.
Capable of low humidity adjustment using the humidity control.
Super low power consumption.
Maintains low humidity and normal temperature. No harm to the quantity of the
items instored.
The height of the shelf is adjustable for the convenient of storage , and prevent
the items from falling.
Special drying agent, no need for replacement.
No vibration .No dust.
♠ (Set-up Location)
Place the dry-cabinet on a level and strong surface .Turn the adjuster to be
balance.
Leave a space of at least 5cm behind the unit for ventilation.
Attach the signal cable in series, then offer AC supply (220V50Hz).
When electrifying at first time or using again after leaving unused for a long time,
please run 12 hours more with empty container , and affirm that humidity has
moved down to lower level.
For LED cabinet, if the red and green indicator lights are flash, it is a normal
phenomenon, which means the working condition of dehumidification unit.
There are two sets of LED display after power on. The left green display is the
current temperature, which cannot be adjusted.The red on the right shows the
current humidity, which can be adjusted.If you need to adjust the humidity,
press the [HUM] button to enter the state (HS humidity setting). In the state of
HS, press the UP or DOWN button, and a set of Numbers will appear in the red
LED. This is the current humidity setting.The LED displays the current
humidity value of the box after opening the fixed button.
Do not place the dry-cabinet in the any of following locations:
.
Areas where there is the direct of air flow, such as in front of a conditioner.
Hot areas.
Areas where have in direct sunlight.
Areas where have smokes or stream.
:(Note)
Let the dry-cabinet run empty for 8 hours before putting any items in it, and make
sure whether the humidity has lowered.
Of opening the door every time should be as short as possible, you’d better control
it in one minute.
Please try not to let the power off, so as to avoid impairing its use.
During dehumidification, the outer shutter of the storage units opens, and the
surface of dehumidification unit, and the area around it will get warm, however this
is normal and there is nothing wrong with the storage unit.
Do not cover the electronic unit’s exhaust vent located on the back of storage units.
After setting the humidity, the product has the function of memory which is setted,
even if cut off the power, we do not set it again.
When the environment humidity is lower than the design values, and the
environment humidity is same as the inside box, this is normally condition
If the power cut off more than 12 hours, we suggest move the goods in the cabinet
to safe places.
(applications and reference humidity of storing items)
Humidity
Suitable storage of items
40％RH－50％RH
Tape, magnetic disc, VCD, camera, lens, slide projector, VCR,
telescope, photo, musical instrument, microscope, film, slide, digital
camera, audio tape, antique painting, watercolor painting, oil
painting, stamp, coin, antique, CD, LD, photo album, mechanical
drawing, advertisement design, fur and industrial design drawing,
etc
20％RH－40％RH
Precision instruments, electronic appliances, measuring tools,
precision molds, semiconductor products, capacitors, tungsten
filament, batteries, optical film and instruments, printed circuit
boards, sensors, chargers, optical lenses, etc.
25RH
Experimental medicinal materials, chemical powder, samples,
filters, models, seeds, pollen, dried flowers, tea, coffee, seaweed
products, spices, dried food, etc.
15RH
,BGA,IC, Special
chemicals, precision electronic components, chips, BGA, IC, etc.
(Put in mind of good- fellowship ):
(Before requesting servicing):
Is the plug in properly? Has the power supply been cut off? Has the fuse
broken?
(change the fuse)
When operating cabinet for the first time or having a long time not use for a long
time, did you switch on and let it works for at least 8 hours with the door shut?
If after checking the above items the electronic dry unit fails to operate ,Please
remove the 6 screws in the outside of the unit and send us the unit only.
