SMT LINE EQUIPMENT.CO.LTD 86-755-33160259 Lizzy@smtlinemachine.com
160L SMT Electronic Dry Cabinet Moisture Proof Electric Dry Box CNSMT

160L SMT Electronic Dry Cabinet Moisture Proof Electric Dry Box CNSMT

  • High Light

    160L Electronic Dry Cabinet

    ,

    110V Electronic Dry Cabinet

    ,

    160L Electric Dry Box

  • Product Name
    SMT Electric Dry Box
  • Product Model
    FCM160
  • Supplier
    CNSMT
  • PCB Size
    50mm X 70mm-330mm X 250mm
  • Humidity Range
    20-60% / 10-20% / 1-10% Digital Display
  • Color
    Black Model/off-white Model Optional
  • Shelves
    Standard 3 Adjustable Shelves, Load-bearing 100kg/layer
  • Lead Time
    3-5days
  • Machine Size
    450*450*1010mm
  • Weight
    51kg
  • Power
    AC220V/110,
  • Place of Origin
    China
  • Brand Name
    CNSMT
  • Certification
    CE-SMT Electronic Moisture-proof box
  • Model Number
    FCM160
  • Minimum Order Quantity
    1
  • Price
    1000
  • Packaging Details
    Standard woodenbox
  • Delivery Time
    3-4days
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union, MoneyGram
  • Supply Ability
    5perday

160L SMT Electronic Dry Cabinet Moisture Proof Electric Dry Box CNSMT

160L SMT Electronic Dry Cabinet Moisture Proof Electric Dry Box CNSMT​

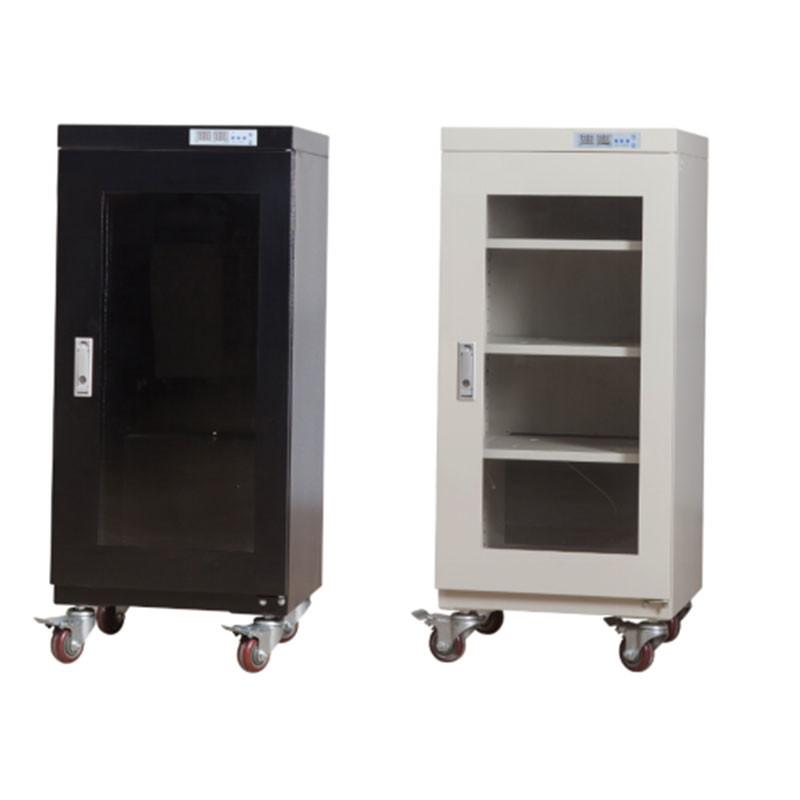

SMT Electronic Moisture-proof box/drying cabinet 160L




Name: Moisture-proof box/drying cabinet
Brand: CNSMT
Model: FCM160(20-60%)/ FCD160(10-20%)/ FCDE160(1-10%)
Volume: 160L
Humidity range: 20-60% / 10-20% / 1-10% digital display
Color: black model/off-white model optional
Shelves: standard 3 adjustable shelves, load-bearing 100kg/layer
Size specification: length * width * height: 450*450*1010mm
Surface treatment: pickling and phosphating-electrostatic spraying-high temperature baking



Usage overview: CNSMT moisture-proof box is a dehumidification platform established according to the development of military high-tech equipment to meet the humidity requirements for storage of various precision accessories and electronic devices.



Specially used to store and manage precision accessories, advanced lenses, photographic equipment, optical equipment, electronic components, integrated circuit boards, SMT, chips and other electronic materials and accessories to prevent mold, fog, oxidation, corrosion, material deformation, aging and fracture , Electronic device failure, etc.



In order to improve the reliability and service life of storage products, intelligent microcomputer management is used to improve the maintainability and integrity rate of accessories, so that various precision accessories and electronic devices are always in a good performance state.
Material description: 1.2mm cold-rolled steel plate is used for stamping and bending, and argon arc precision welding. The inner and outer surfaces are all treated with pickling and phosphating, electrostatic spraying, and high-temperature baking.


Glass window: 4MM anti-riot tempered glass, double-layer door frame structure, flat and beautiful, equipped with concealed door lock, with key, with insurance function.


Control technology: adopts microcomputer intelligent fuzzy humidity inertial system control technology; the sensor is imported from the United States, the brand is Honeywell, the digital frequency output port, strong versatility, convenient replacement, high precision, low annual drift, strong anti-interference ability .


Humidity control movement: The shell is made of engineering plastic imported from South Korea, with a temperature resistance of more than 300 degrees, and a designed service life of more than 30 years.



The molecular sieve is imported from Germany, and the double memory alloy spring is imported from Sweden to ensure the durability and fatigue resistance of the movement; The moisture-proof box has no motor drive, heat insulation, magnetic isolation, anti-static, dust-proof, anti-theft, low power and no consumables. Therefore, the CNSMT moisture-proof box is environmentally friendly, energy-saving, silent, pollution-free, and drip-free.


Display screen: 3-window digital display (LED digital tube: 1 group of temperature, 1 group of humidity, 1 group of dynamic humidity display), the humidity changes in the cabinet are intuitive and visible.


Power-off protection memory function: After power-off, the system can ensure that the humidity rise in the box is less than 10% (within 24 hours), and there is no need to reset the memory function after power-off.


Working principle: humidity sensor (humidity and temperature signal) → microcomputer (CPU central processing unit) → heater (high polymer material PTC constant temperature heating module heating) → smart shape memory alloy (alloy shape changes with temperature) → balance spring ( Ordinary balance springs are the same alloy).
