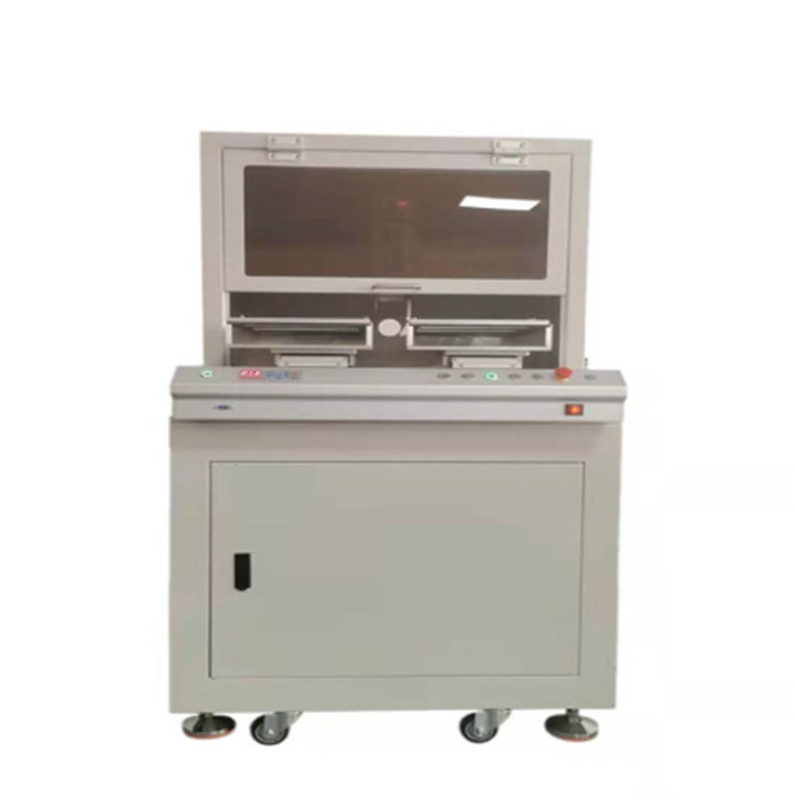

Small Offline PCB Coating Machine 0.6KW AC 220V For Laboratory
Small coating machine for laboratory,Offline pcb coating machine
| Product number | DM441 | Remark | |
| Operating range | X axis | 300mm | Customizable stroke range |
| Y axis | 300mm | ||
| Z axis | 100mm | ||
| Machine size | L900*W900*H700 (unit: mm) [including sheet metal cover] | Customizable size | |
| Drive method | Stepper motor + synchronous belt control | ||
| Repeatability | ±0.02mm | ||
| Movement speed | X, Y: up to 500mm/s, Z: 300mm/s | ||
| Spraying area | (Scope of fixture: 250*250mm) | Free 2 adjustable fixtures | |
| Processing table | Double countertop | ||
| Number and type of valve body | 1 precision small atomization valve + 1 plunger type dispensing valve | 2 valves switch mutually | |
| Number of barrels type | 1 10L pressure tank + 1 2L stainless steel cleaning pressure tank | ||
| Teaching mode | Manual teaching, high-definition teaching box interface operation | ||
| Control System | HAIPAI | ||
| Input power | AC220V, 50Hz, 0.6KW | ||
| Gas source | 4-6kgf/cm2, | ||
| power supply | 220V |
Equipment function description:
1) X, Y, Z, three-axis motion can accurately realize the selective spraying process of various circuit boards to avoid non-coated areas such as connectors.
2) Accurately realize the selective area spraying of various circuit boards.
3) It can realize multi-track spraying such as dot coating, linear spraying, curved spraying, etc., and can complete the high-density and complex circuit board spraying process.
4) The edge of the device can be effectively and uniformly coated, and the shadow effect of spraying can be eliminated.
5) The accuracy of the system is ±0.02 mm.
6) Transmission and control system with high speed, high reliability and high stability.
7) The standard equipment carries 2 valves at the same time. The 2 valves can realize automatic switching and coordination of spraying actions, and can realize high-density and complex circuit board spraying and dispensing processes.
8) The device has an intelligent automatic width adjustment function (the input board width can be automatically adjusted in place).
9) Programming mode: The software program has data input automatic programming; the handle manually enters any trajectory automatic programming mode.
Scope of application
◆Applicable boards: electronic components, integrated circuits, circuit boards.
◆Applicable products: It is required to be able to do curve, point, arc, optional arbitrary shape dispensing track coating operation and other products.
◆Application industry: widely used in automotive electronics, household appliances, industrial control, power supply industry, photovoltaic inverters, charging piles, LED display and lighting, security and fire protection, rail transit, smart meters, national grid, military, aviation and other industries .
◆Application examples: military industry, computer motherboards, inverters, battery protection boards, power meters, water meters, gas meters, and other high-precision spraying operations.
