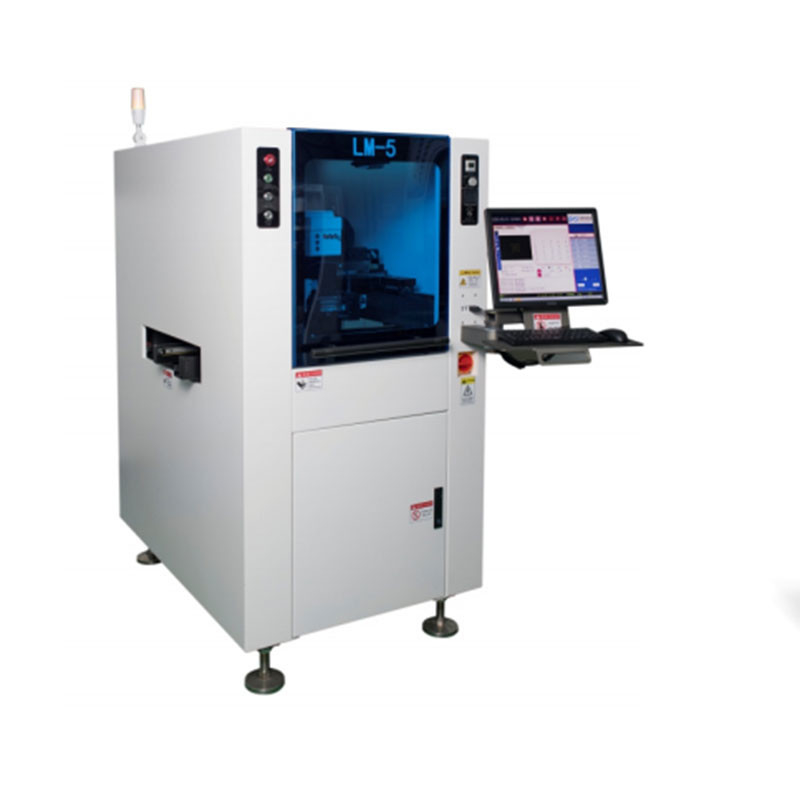

300mm/S PCB Automatic Glue Dispensing Machine Online 3.5kw
CNSMT-LM-5 , High-end Inline PCB Glue dispensing machine,Online glue dispenser
High Speed, High Precision, Full Function |
|||||||||||||||||||||||||||||||||||||||||||||||||||||
| it has the advantages of maintenance-free, no wear, low noise and high reliability | |||||||||||||||||||||||||||||||||||||||||||||||||||||
| servo motor drive to achieve high precision positioning, with high precision laser sensor height measurement, measurement accuracy of 1μm automatic compensation for height deviation, with over-limit alarm function, to efficiently deal with workpiece deformation and avoid ultra-high devices |
|||||||||||||||||||||||||||||||||||||||||||||||||||||
| - capable of mark identification and compensation for various workpieces and scenes, including multi-panel/yin-yang plate reference point identification |
|||||||||||||||||||||||||||||||||||||||||||||||||||||
Master key technologies |
|||||||||||||||||||||||||||||||||||||||||||||||||||||
for the mobile phone narrow frame, camera and other precision dispensing process, simply usingMark positioning can not compensate for the position deviation intelligent visual edge grab positioning function, independently generate correct glue coordinatepath, effectively deal with the scene of poor consistency of the workpiece 3D scanning positioning technology, automatic calculation of 3D glue path, effectively avoid glue deviation 3D detection technology: after dispensing, the leakage point, glue breakage and glue width and height of theglue line are detected and a report is generated |
|||||||||||||||||||||||||||||||||||||||||||||||||||||
| - dispensing quality warning - glue residual calculation and warning - maintenance and consumable early warning - remote centralized monitoring |
|||||||||||||||||||||||||||||||||||||||||||||||||||||
| - built-in micro-weighing module, with optional weighing accuracy of 0.1mg/0.01mg | |||||||||||||||||||||||||||||||||||||||||||||||||||||
| automatic calculation of glue weight and real-time correction of deviation | |||||||||||||||||||||||||||||||||||||||||||||||||||||
| - head rotation axis, valve head tilt axis - bottom preheating module - dual head synchronous/asynchronous - double track dispensing |
|||||||||||||||||||||||||||||||||||||||||||||||||||||
| MOTION CONTROL SOLID |
MOTOR DRIVE SERVOTRONIX/PANASONIC |
CAMERA BASCER |
LENS RICOH |
||||||||||||||||||||||||||||||||||||||||||||||||||
| LIGHT APT |
LINEAR GUIDE RAIL THK |
SERVO MOTOR PANASONIC |
STEP MOTOR SHINANO |
||||||||||||||||||||||||||||||||||||||||||||||||||
| SENSOR OMRON OPTEX LASER HEIGHT PANASONIC/OPTEX |
TEMP CONTROL OMRON SCAN CODE COGNEX/OMRON |
PNEUMATIC SMC MICRO WEIGH SARTORIUS/METTLER |
ELECTRIC SCHNEIDER COMPUTER ADVANTECH/EVOC |
||||||||||||||||||||||||||||||||||||||||||||||||||
| OPERATION SIZE | 330*330mm | 420*300mm |
| MAXIMUM ACCELERATION XY | 20g | 2.0g |
| MAXIMUM OPERATING SPEED | 2000mm/s SMART CONTROL | 2000mm/s SMART CONTROL |
| XYACCURACY | 0.005mm | 0.005mm |
| Z AXIS DRIVE | SERVO MOTOR | SERVO MOTOR |
| VISION RESOLUTION RATIO | CCD ,FLYING CONTROL | CCD ,FLYING CONTROL |
| THE LIGHT SOURCE | CNC TRICHROMATIC UGHT | |
| STANDARD SPRAY VALVE AND HEATING | PNEUMATIC INJECTION VALVE | PNEUMATIC INJECTION VALVE |
| VALVE MOUTH CLEANING DEVICE | AUTOMATIC GLUE CLEANING VACUUM/ROLLCft | AUTOMATIC GLUE CLEANING VACUUM/RQL1ER |
| SUITABLE FOR MATERIAL PACKAGING | 30/55cc | 30/SScc |
| BOTTOM PREHEATING SYSTEM | TWO-STAGE PREHEATING MODULE. OPTIONAL | TWO-STAGE PREHEATING MODULE. OPTIONAL |
| ACCURACY OF WEIGHT SYSTEM READING | 0.1/0.0K | 0.1/0.01 |
| HEIGHT MEASUREMENT ACCURACY | 0.005mm | 0.005mm |
| CONVEYOR SPEED | 300mm/s | 300mm/s |
| WIDTH ADJUST | SELF-CCWTROLTHE PROGRAM MEMORY | SELF CONTRCXJHE PROGRAM MEMORY |
| SPLINT WAY | THE STANDARD SIDE CLIPS | THS STANDARD SIDE CUPS |
| THE CONVEYING TRACK BEARS THE LOAD | 3.5kg | 3.5kg |
| APPLICABLE SUBSTRATE THICKNESS | >0.5mm | >0.5mm |
| OPERATION SYSTEM | Windows? | Windows? |
| OPERATION VIEW | CHINESE/ENGUSH | CH1NESE/ENGLISH |
| MACHINE SIZE | L850*W1230*H1600mm 30mm ) | L900*W1280*H1600mm 30mm) |
| WEIGHT | 1180kg | 1400kg |
| ALARM | ACOUSTOOPTICAL TYPE | ACOUSTOOPTICAL TYPE |
| COMMUNICATION INTERFACE | SMEMA | SMEMA |
| VOLTAGE | 220V 50~60Hz | 220V 50~60Hz |
| AIR PRESSURE | 0.6Mpa | 0.6Mpa |
| POWER | 3.5kw | 3.5kw |
