400mm Whole plate PCB Coating Machine Touch Screen PLC Control

400mm Whole plate PCB Coating Machine Touch Screen PLC Control

  • High Light

    400mm PCB Coating Machine

    ,

    ODM PCB Coating Machine

    ,

    400mm pcb conformal coating machine

  • Product Name
    Whole Plate PCB Coating Machine
  • Product Model
    CNZ-Vision1
  • Manufacturer
    CNSMT
  • PCB Size
    450*450mm/400mm/500mm Or Customize
  • MAXIMUM OPERATING SPEED
    400-600mm/s
  • XY ACCURACY
    0.002mm
  • Z AXIS DRIVE
    SERVO MOTOR
  • Load Directtion
    Left To Right/right To Left
  • Lead Time
    1-2days
  • Size
    L1060*W930*H1680mm
  • Weight
    790kg
  • Place of Origin
    China
  • Brand Name
    CNSMT
  • Certification
    CE- Whole plate PCB coating machine
  • Model Number
    CNZ-Vision1
  • Minimum Order Quantity
    1
  • Price
    20
  • Packaging Details
    Standard woodenbox
  • Delivery Time
    3-4days
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union, MoneyGram
  • Supply Ability
    5perday

400mm Whole plate PCB Coating Machine Touch Screen PLC Control

400mm Whole Plate PCB Coating Machine Touch Screen PLC Control

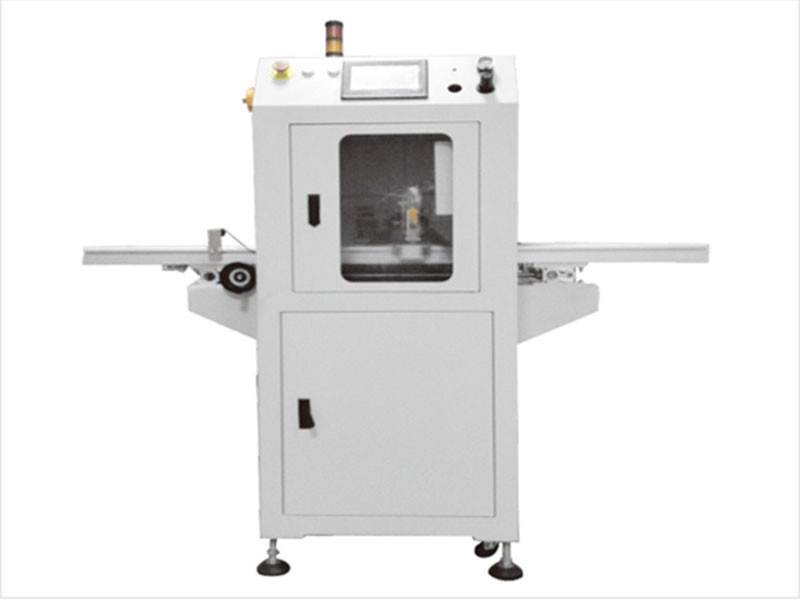

Whole plate PCB coating machine CNZ-Vision1


Specification Z-Visionl
PCB spraying range (including fixture) Y=450mm
Component height 70 rings on the top and bottom of the chain
PCB edge space
Y-axis drive mode Stepper motor + belt module
Y axis maximum operating speed 400-600mm/s
Y repeat accuracy ± 0.05mm
Work stupid Standard L-R (R-L)
Conveying height 920±20mm
transfer speed 0_3.5m/min
Transmission motor Speed control motor
Modulation method Manually edit parameters
Valve distribution Single precision atomization valve
Dimensions L1060mm*W930mm*H1680mm
equipment weight Approx, 350Kg
Equipment air pressure 0.4-0. 6Mp&
Exhaust requirements 900n?/h
Equipment power AC220V 50Hz
Total power of equipment 1.2KW
control method Human-machine touch screen PLC control
Coating software Control Li software + touch screen system
Programmatically Manually edit parameters





Technical features:


a. Control part: PLC+touch screen control, simple programming and convenient operation; self-developed operating software, convenient maintenance. When editing the working spraying program, the operator can manually adjust the height of the spray valve according to the height of the components on the PCB, and set the spraying range in the software according to the different dimensions of the PCB. The soaking glue valve can be selected when spraying without a workpiece, which can effectively prevent the glue gun and hose from being blocked due to the drying up of the glue.


b. Frame part: The frame is made of full sheet metal bending design, which is strong and durable; the sheet metal is completed by electrostatic powder spraying and baking powder technology, which is beautiful and easy to clean.


c. Working part: Servo motor drives the working part of the synchronous belt module to move, which is more stable and precise. The upper and lower working parts of the rubber valve are fixed, and the height can be adjusted manually. The spray valve uses a high-precision small atomizing spray valve, and the spray width is adjustable.


d. Conveying part: The conveying direction is from left to right. The power adopts electronic speed control motor with reduction box, and the conveying speed range is 0-3.5 m/min. The self-developed aluminum conveying line is convenient and beautiful, and the conveying method is chain Transmission, the conveying width can be manually adjusted by linear guide rail, with higher adjustment accuracy, the adjustment range is 50-450 mm; the chain is a 3-point stainless steel chain with a stopper and a long pin.


e. Gluing device: 10L plastic storage tank with manual mixing function and 2L stainless steel cleaning tank made in Taiwan.


f. Soaking device: using ordinary stainless steel cups, ingenious design and easy to replace.


g. Lighting detection part: the equipment is equipped with a lighting system.

400mm Whole plate PCB Coating Machine Touch Screen PLC Control 0



PCB online Coating machine is specially designed to control the spraying, spin coating and other methods of liquid coating to cover a layer of material on the surface of the substrate. It is mainly used for the precise spraying of the liquid coating in the product process to the precise position of the product, so some people call it a glue spreader. , Fuel injection machine, etc. Mainly used in leather goods, electronics, automobiles and other industries.



The coating machine automation line is also called a fully automatic coating machine, which means that the equipment has an automatic feeding and discharging conveying mechanism, which eliminates the personnel who collect materials and enhances the competitiveness of the enterprise.



The coating system of the coating machine automation line provides a fully programmable three-axis transmission platform. It adopts a precision screw module transmission system with a Panasonic servo motor, and the positioning accuracy can reach 0.02mm. Among them, the Z-axis direction can automatically raise and lower the nozzle according to the height of the special-shaped device to adjust the range of a single spray. This can better control the spraying effect in key areas and improve production continuity.





400mm Whole plate PCB Coating Machine Touch Screen PLC Control 1



400mm Whole plate PCB Coating Machine Touch Screen PLC Control 2

400mm Whole plate PCB Coating Machine Touch Screen PLC Control 3
