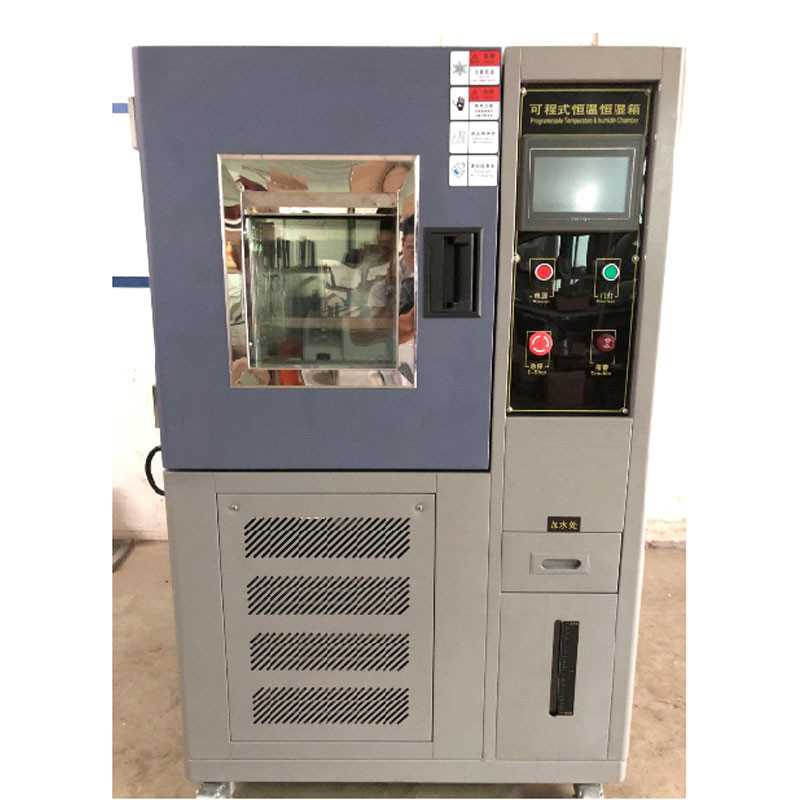

150L Rapid Constant Temperature And Humidity Chamber 7in LCD Display
Rapid temperature change test chamber,Constant Temperature Humidity test chamber
| This test equipment prohibits: | |||
| Test and storage of samples of flammable, explosive, and volatile substances | |||
| Test and storage of corrosive material samples | |||
| Testing or storage of biological samples | |||
| Test and storage of strong electromagnetic emission source samples | |||
| Device model | LX-150L type | ||
| Studio size | Length×width×height 500×500×600mm | ||
| Dimensions | Length×width×height 1000×1000×1710mm | ||
| Total power | About 7.5KW | ||
| Main performance parameters | temperature range | -40℃～+150℃ | |
| Temperature deviation | ≤±2.0℃ | ||
| Temperature fluctuation | ≤±0.5℃ | ||
| Temperature rise and fall rate | The average cooling rate is 4℃/min; the average heating rate is 4℃/min | ||
| With dehumidification function | |||
| Electrical control system | |||
| Display | 7" color LCD display | ||
| Operation mode | Fixed value or program | ||
| Setting method | Chinese/English menu, touch screen input | ||
| Program capacity | Can store 50 groups and 50 test programs | ||
| Program length | Up to 50 segments per program | ||
| Cycles | Each program segment can be cycled 999 times | ||
| Predetermined area | Temperature: -100℃～+200℃ | ||
| Humidity: 0～99.9%RH | |||
| Time: 0～99 hours 59 minutes | |||
| Resolution | Temperature: 0.1℃ | ||
| Humidity: 0.1%RH | |||
| Time: 0.1min | |||
| enter | PT100 platinum resistance | ||
| Ancillary function | Alarm display function (prompt failure reason), power failure protection function, upper and lower limit temperature and humidity alarm function, timing function (automatic start and automatic stop), self-diagnosis function. | ||
| Measurement data collection | PT100 platinum resistance | ||
| Cabinet material | Inner box material | SUS304 stainless steel plate | |
| Outer box material | Cold rolled steel plate sprayed | ||
| Insulation material | Rigid polyurethane foam + glass fiber | ||
| door | Single door with observation window, lighting lamp, left hinge and left handle | ||
| Heating and humidifying system | Heater | Nickel-chromium alloy electric heating wire heater | |
| Heater control mode: PID control mode, using non-contact and other periodic pulse width modulation SSR (solid state relay) | |||
| refrigerating system | Refrigeration Compressors | France Taikang fully enclosed piston compressor | |
| Cooling method | Mechanical compression unit refrigeration | ||
| cooling method | Air-cooled | ||
| Evaporator | Smooth tube heat exchanger | ||
| Evaporative condenser | Brazed plate heat exchanger | ||
| Condenser | Air-cooled condenser | ||
| Refrigerator control method | The PLC (programmable logic controller) of the control system automatically selects and automatically adjusts the operating conditions of the refrigerator according to the test conditions | ||
| Condensing pressure regulating valve | |||
| Evaporation pressure regulating valve | |||
| Compressor return air cooling circuit | |||
| Energy regulation loop | |||
| The refrigerant | R404a/R23 | ||
| safety equipment | leakage protector | Compressor overpressure protector | |
| Over-temperature protector in the box | Compressor overheat protector | ||
| Fan overheat protector | Compressor overcurrent protector | ||
| Phase sequence protector | Waterway system protector | ||
| water supply system | Water supply method | Pump lift | |
| Storage tank | 1 built-in water tank | ||
| Water quality | Clean pure water (clean tap water is also available) | ||
| Standard configuration | Hollow electric heating tempered glass observation window (W350mm*H280mm) 1 | ||
| 1 fluorescent lamp (AC220V) | |||
| 1 cable hole (∮50mm), with rubber plug | |||
| Power cord 5m | |||
| 4 sample shelves, 2 shelves | |||
| Conditions of Use | power supply | ○AC380V three-phase four-wire + protective ground wire; | |
| ○Voltage allowable fluctuation range: AC380V ±10% | |||
| ○Frequency allowable fluctuation range: 50Hz ±0.5 Hz | |||
| ○The grounding resistance of the protective earth wire is less than 4Ω; TN-S power supply or TT power supply | |||
| Use environment | Temperature: 5℃～35℃, relative humidity: ≤85%RH | ||
| site | ○The ground is flat, well ventilated, free of flammable, explosive, corrosive gas and dust | ||
| ○There is no strong electromagnetic radiation source nearby | |||
| ○Proper maintenance space is left around the equipment | |||
| GB10589-2006 Technical conditions of low temperature test chamber | |||
| Technical conditions of GB10592-2006 high and low temperature test chamber | |||
| Technical conditions of GB11158-2006 high temperature test chamber | |||
| GB/T2423.1-2001 Test A: Low temperature test method | |||
| GB/T2423.2-2001 Test B: High temperature test method | |||
| GB/T5170.2-1996 Electrician and electronic product environmental test equipment basic parameter verification method temperature test equipment | |||
| 配置清单 | |||
| 序号 | name | Origin brand | Remark |
| 1 | Controller | TATO | 5166 7 inch |
| 2 | Electromagnetic switch | Taiwan Shilin | SP-11 |
| 3 | Intermediate relay | Omron | MY2J |
| 4 | Timer | Japan CKC | AH3-2 |
| 5 | Over temperature protection | South Korea RAINBOW | TS-320S |
| 6 | SSR | Taiwan Yangming | ASR03-40DA |
| 7 | Temperature Sensor | Xuanrong, Taiwan | PT100 |
| 8 | flashlight | Osram | 220V18W |
| 9 | No fuse switch | Taiwan Shilin | 220V40A |
| 10 | Circulation fan | YEZHENG | 220V60W |
| 11 | wind mill | Taiwan Shangyu | 6F |
| 12 | compressor | Taikang | 6P |
| 13 | Condenser | Koveli | |
| 14 | Condensing fan | German Dunli | 220V350M |
| 15 | Filter drier | Danfoss | DCL0325 |
| 16 | Check valve | Danfoss | NRV16S |
| 17 | The electromagnetic valve | Japanese Heron | NEV202DXF |
| 18 | Pull-type heat exchanger | Taiwan Gaoli (cascade adopted) | CB14-20HSR16 |
| 19 | Evaporator | Taiwan Hongjian | custom made |
| 20 | The refrigerant | DuPont | R404A/R23 |
| 21 | Heater | Taiwan Longxing | 220V2000W |
| 22 | Water pump | Hong Kong Huaxing | 500ml/min |
| 23 | Pure water supply device | Taiwan He Zhong | 30L |
| 24 | power supply | MEAN WELL | 24V |
