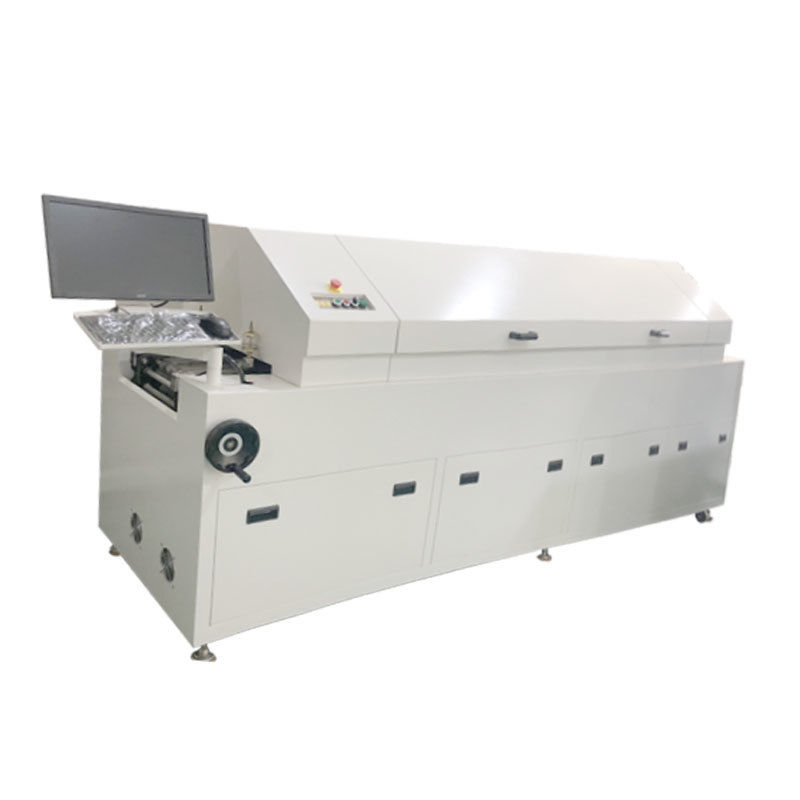

Economy SMT Reflow Soldering Oven economical full hot air reflow 4/5/6/8

Economy SMT Reflow Soldering Oven economical full hot air reflow 4/5/6/8

This economical reflow oven is specially designed for small to mediumsized electronics manufacturing enterprises, offering a perfect balance of high performance, energy efficiency, and costeffectiveness. It fully meets the requirements of leadfree soldering processes and is built with highquality imported components to ensure longterm stability and easy maintenance, making it an ideal solution for SMT production lines.

Advanced & Durable Heating System:

The oven features highefficiency, energysaving 220V nickelchrome heating tubes imported from Sweden with a peak radiation wavelength of 4μm. This enables rapid temperature rise and high thermal efficiency. A specially designed forced hot air circulation system ensures uniform heating of PCBs and components. The system uses a highprecision RKC temperature controller from Taiwan, equipped with fuzzy logic and PID intelligent control, achieving temperature control accuracy of ±1℃ and temperature uniformity within ±2℃, compliant with IPC standards.

Safe & Stable Electrical Control System:

Equipped with solidstate relays (SSR) for contactless highcurrent output, combined with dedicated SSR heat sinks, the system offers improved heat dissipation and extended lifespan. Multiple safety features are included, such as overtemperature alarm, fault diagnostics, and audible/visual alarms, ensuring safe and reliable longterm operation.

Reliable & Smooth Conveyor System:

The transmission system uses a Taiwanmade TL stepless speed motor and a 1:150 worm gear reducer, offering adjustable speeds from 0 to 1500mm/min. It features a precision stainless steel mesh belt with independent rollers and flat supports, ensuring smooth, stable, and accurate PCB transport (speed accuracy ±20mm/min). The special stainless steel chain mesh is wearresistant and maintains shape over time.

UserFriendly Design:

The upper heating chamber can be fully opened for easy cleaning and maintenance. The heating elements are modular and independently installed for convenient servicing. The imported Taiwan SIROCCO hightemperature fan motor ensures smooth air flow, low vibration, and low noise. With powerful heating capacity, the oven reaches set temperatures within 15 minutes from ambient, greatly improving production efficiency.

This model is a highefficiency, entrylevel reflow oven suitable for various SMT soldering applications, offering high reliability, energysaving performance, and userfriendly maintenance at a competitive price.

Specification

FAQ GUIDE – Economical Reflow Oven

1. What is an economical reflow oven?

An economical reflow oven is a costeffective soldering machine designed for small to mediumscale SMT production. It provides essential reflow soldering capabilities with stable performance, ideal for leadfree soldering and basic electronics assembly.

2. Is this oven suitable for leadfree soldering?

Yes, the oven is fully compatible with leadfree soldering processes. It features a highefficiency heating system, extended preheating zones, and uniform temperature control that meets RoHS and IPC standards.

3. How many temperature zones does this oven have?

This model typically comes with 4/5/6/8/10 heating zones (customizable), which ensures gradual and even heating for highquality reflow soldering results.

4. What type of temperature control system is used?

It uses a Taiwanimported RKC PID controller with fuzzy logic control. This ensures accurate and stable temperature control with ±1°C precision, and automatic response to external thermal changes.

5. How long does it take to reach operating temperature?

The oven heats up quickly — from room temperature to stable working temperature in about 15 minutes.

6. What is the conveyor speed range?

The conveyor speed is stepless adjustable from 0 to 1500mm/min, with speed accuracy up to ±20mm/min.

7. Is it easy to clean and maintain the oven?

Yes, it is designed for easy maintenance. The entire upper hood can be lifted, and independent heating tube modules make replacement or inspection simple. The stainless steel mesh belt is also durable and easy to clean.

8. Does the oven have safety features?

Absolutely. It includes temperature deviation alarms, fault diagnostics, and audible/visual alarms. A delayed shutdown function helps prevent damage from uneven cooling.

9. What kind of motor and fan does it use?

It is equipped with a Taiwan SIROCCO hightemperature fan motor, which ensures smooth air circulation with low noise and minimal vibration.

10. What industries is this oven suitable for?

It is widely used in:

Consumer electronics assembly
LED lighting PCB soldering
Small batch and prototype SMT production
Educational and training labs
Repair and rework lines

11. Do you provide technical support or aftersales service?

Yes, we offer professional technical support, video tutorials, remote assistance, and spare parts. Warranty and maintenance terms can be customized based on your region or order quantity.

12. Can the oven be customized for different production needs?

Yes, we support customization of:

Number of heating zones
Belt width
Power configuration (220V/380V)
Language interface and software
