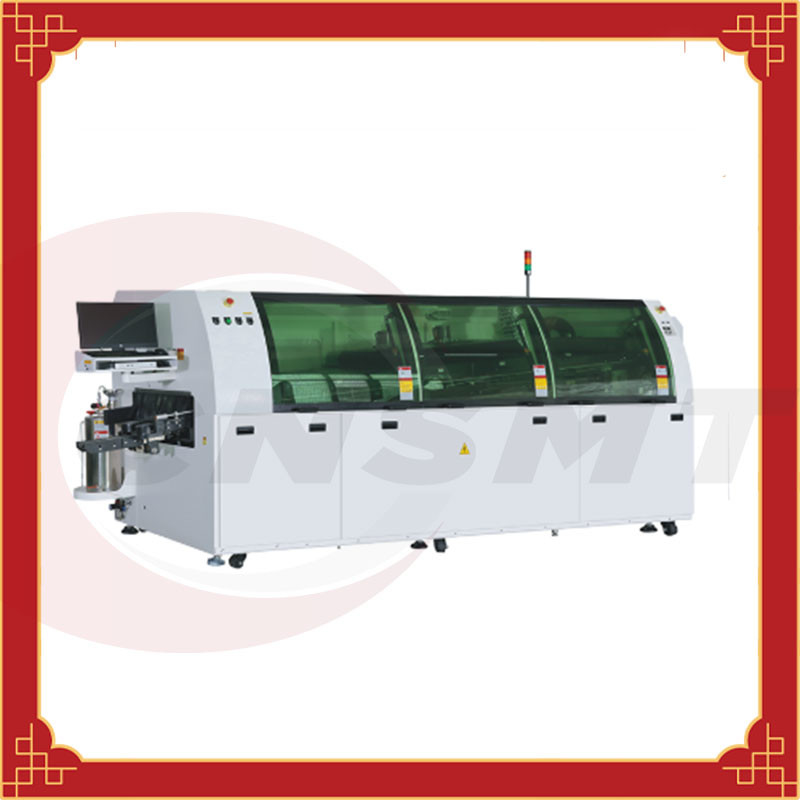

SMT Nitrogen Air Lead Free Wave Solder Machine 21.6KW 1800mm/min

SMT Nitrogen Air Lead Free Wave Solder Machine 21.6KW 1800mm/min

Products - SMT Reflow Oven
  • High Light

    ODM Lead Free Wave Solder Machine

    ,

    21.6KW Lead Free Wave Solder Machine

    ,

    21.6KW nitrogen reflow soldering

  • Product Name
    SMT Nitrogen/air Wave Solder Machine
  • Product Model
    CNSMT-SMW800 /900/1000
  • Supplier
    CNSMT
  • PCB MAX SIZE
    350/450MM
  • Preheater Power
    21.6KW
  • Temperature Control Method
    PID Closed-loop Control + SSR Drive
  • Transportation Speed
    400-1800mm/min
  • Power
    380V/220V
  • Machine Size
    4250x1480x1650mm
  • Weight
    1655kg
  • Place of Origin
    China
  • Brand Name
    CNSMT
  • Certification
    CE-SSMT Nitrogen/air wave solder machine
  • Model Number
    SMT Nitrogen/air wave solder machine
  • Minimum Order Quantity
    1
  • Price
    1
  • Packaging Details
    Standard woodenbox
  • Delivery Time
    3-4days
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union, MoneyGram
  • Supply Ability
    5perday

SMT Nitrogen Air Lead Free Wave Solder Machine 21.6KW 1800mm/min

  • SMT Nitrogen Air Lead Free Wave Solder Machine 21.6KW 1800mm/min
Get Price Contact Now

SMT Nitrogen Air Lead Free Wave Solder Machine 21.6KW 1800mm/Min



SMT Nitrogen/air wave solder machine-CNSMT



Features:

1. Windowsl. Operating system, can realize the free switching between Chinese and English of the operation interface;
2. Adopt modular design, convenient and fast maintenance, which can reduce maintenance time and cost;
3. Adopting four-stage independent drawer type super-long full hot air preheating zone, which can effectively reduce the temperature difference of the products after the furnace and improve the product quality;
4. The tin furnace is equipped with an electric lifting and walking mechanism as standard, and the operation surface and the back can be operated;
5. The tin furnace is equipped with a heating secondary monitoring foolproof system as standard, which can effectively prevent abnormal heating of the tin furnace;
6. The equipment is equipped with a pressure tank constant pressure storage system as standard, which can ensure that the pressure in the flux spraying is relatively stable;
7. The equipment is equipped with sound and light alarm and information prompting functions for various faults as standard, including temperature deviation, speed deviation, wave crest and wind failure, and incorrect operation.

Product optional function items:

1. Optional standard rail or heavy-duty rail;
2. Central support system;
3. Optional partial nitrogen filling system (partial nitrogen filling of tin furnace);
4. Hot air type upper preheating zone (optional).
5. Standard configuration of new reversing mechanism and encoder for speed measurement, stable and reliable transmission, longer life.
6. Optional standard rail or heavy-duty rail.
Model CNSMT-350LFC CNSMT-450LFC
PCB size Max350mm Max450mm
Transfer speed 400-1800mm/min 400-1800mm/min
Preheater power 21.6KW 21.6KW
Tinfurnace power 18KW 18KW
Transmission motor 1ΦAC220V 90W 1ΦPAC220V 90W
Cooling fan 1ΦAC220V 370W 1ΦAC220V 370W
Tin wave motor 2-3ΦAC22OV 370W 2-3ΦPAC220V 370W
Cleaning motor 1ΦAC220V 30W 1ΦPAC220V 30W
Tin furnace temperature 室溫 ~300°C 室溫~300°C
Tinfurnace capacity 480kg 520kg
Solder angle 5.5°±1.0° 可調 5.5° ±1.0° 可調
Gas source >4kg/cm2 >4kg/cm2
Flux capacity 2L 2L
Normal / Starting power 12kw/29.5kw 13kw/36.5kw
Net weight 1650kg 1800kg
Dimentions (LxWxH) 4250x1480x1650mm 4250x 1580x1650mm
Power supply 3Φ380V 3Φ380V
