400V 50Hz SMT Reflow Machine Heller 1809exl filter free OEM ODM

400V 50Hz SMT Reflow Machine Heller 1809exl filter free OEM ODM

  • High Light

    50Hz SMT Reflow Machine

    ,

    400V SMT Reflow Machine

    ,

    50Hz smt oven reflow

  • Product Name
    HELLER 1809EXL Reflow Oven
  • Product Model
    HELLER 1809EXL
  • Supplier
    CNSMT
  • PCB MAX SIZE
    50-508 MM
  • Heat QTY
    UP 9 DOWN 9
  • Heat Length
    2660mm
  • PCB Transportation Speed
    250-1880mm/min
  • Power
    380V/400/410、50Hz/60hz
  • Machine Size
    4650mmX1371mmX1600mm
  • Weight
    1580kg
  • Place of Origin
    China
  • Brand Name
    HELLER
  • Certification
    CE-SMT heller REFLOW OVEN
  • Model Number
    HELLER 1809exl
  • Minimum Order Quantity
    1
  • Price
    1
  • Packaging Details
    Standard woodenbox
  • Delivery Time
    3-4days
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union, MoneyGram
  • Supply Ability
    5perday

400V 50Hz SMT Reflow Machine Heller 1809exl filter free OEM ODM

400V 50Hz SMT Reflow Machine Heller 1809exl Filter Free OEM ODM

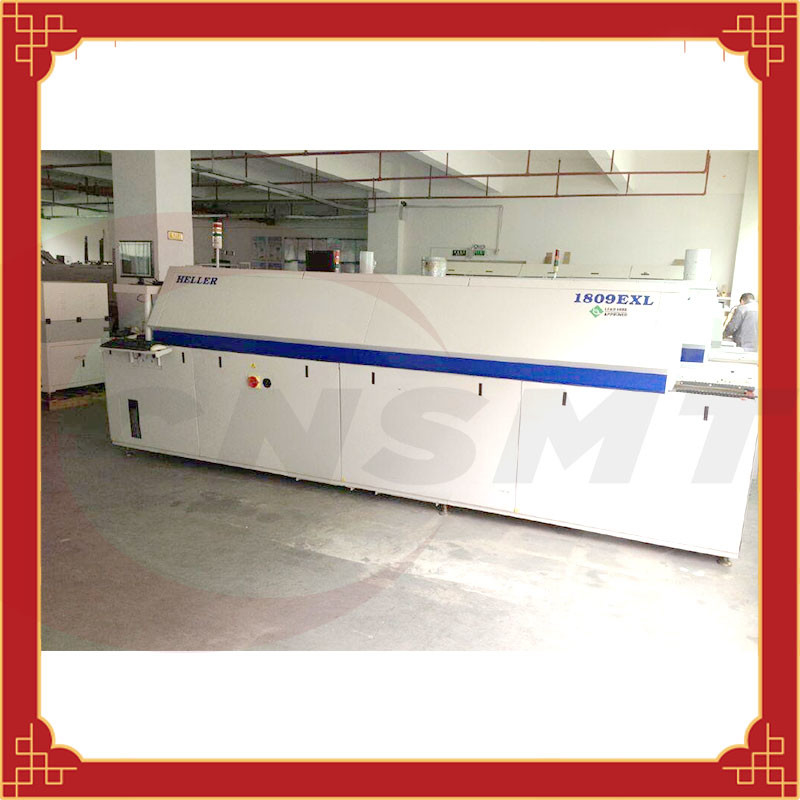

HELLER 1809EXL Reflow oven-cnsmt



HELLER reflow soldering 1809EXL features:

Temperature zone configuration: upper nine under nine hot air circulation and two air-cooled cooling zones

Full computer control system: LCD display, mouse, keyboard, Windows XP

a full set of software: password protection, SPC data analysis, KIC control software, alarm system, three thermocouples real-time heating curve display and printing

Program storage: 500 heating curve diagrams can be stored, real-time heating curve monitoring, heating curve location and analysis

PID temperature control ensures stable heating up to ± 1°C


HELLER reflow soldering 1809EXL specifications:
1. Heating zone/cooling zone:
Number of heating zones: up 9/down 9
Heating zone length: 2660mm
Number of cooling zones: 2
2. Input voltage:
380V three-phase, 50/60HZ
3.Specifications:
Dimensions: 4650mm long X1371mm wide X1600mm high
Weight: 1588 kg (air furnace) (the weight of the nitrogen furnace depends on the first configuration)
4. Temperature control:
Temperature control accuracy: ±0.1℃
Transverse temperature difference across the board: ±2.0℃
Temperature control range: 25-350℃
Heating wire material: nickel-chromium alloy coil with quick response
Start-up heating time: 1-5 minutes (15-20 minutes, nitrogen furnace)
Profile switching time: 1-15 minutes (15-20 minutes, nitrogen furnace)
5.PCB board transfer system:
Transmission method: mesh belt transmission, chain transmission
Transmission speed: 250-1880mm/min
Rail high speed: 940mm±50mm
Mesh belt height: 890mm±75mm
Allowable board width: 50-508mm (50-380 minutes, nitrogen furnace)
6. Nitrogen operation:
Oxygen content in the furnace: 50-1000PPM
Required nitrogen flow: 14-28 cubic meters per hour
Flux residue treatment: filter-free separation system
7. Computer operating system:
Computer specifications: IBM Celeron 1.7GHz or higher
Display: 15 inch CRT
Operating platform: Windows XP



CNSMT focuses on the R&D and production of SMT equipment (solder paste printer, placement machine, reflow soldering, AOI detector, SPI solder paste thickness gauge, loading machine, loading machine, connecting table, parallel transfer machine, etc.) , Sales, ancestors, maintenance, the company has independent product development, program design, manufacturing, installation and commissioning, after-sales service, providing one-stop SMT equipment supporting solutions.

In order to meet the production needs of customers, our company has launched the SMT equipment rental business. Customers can rent mounters/reflow soldering/solder paste printers/AOI detectors alone, or rent SMT production lines, which will bring considerable benefits to your company The economic efficiency and flexible production line arrangement. We will reasonably configure the required models according to the actual production needs of your products, and provide technical support, production training and related technical personnel
