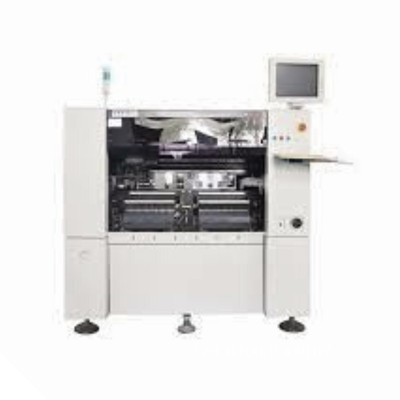

Yamaha YG100XTG SMT Assembly Machine Yamaha SMT Pick And Place Machine

Yamaha YG100XTG SMT Assembly Machine Yamaha SMT Pick And Place Machine

  • High Light

    Yamaha YG100XTG SMT Assembly machine

    ,

    0.55 MPa SMT Assembly Machine

    ,

    Yamaha SMT Pick And Place Machine

  • Place of Origin
    Japan
  • Brand Name
    YAMAHA
  • Certification
    CE- Yg100xtg
  • Model Number
    Yamaha Yg100xtg
  • Minimum Order Quantity
    1 set machine or mixed order is also acceptable.
  • Price
    Negotiable (Please contact us for the price)
  • Packaging Details
    Standard export boxes and sturdy hardwood packages are both options.
  • Delivery Time
    5-8 days
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union, MoneyGram
  • Supply Ability
    1,450 kg

Yamaha YG100XTG SMT Assembly Machine Yamaha SMT Pick And Place Machine



Yamaha Yg100xtg SMT Assembly machine

With our Yamaha Yg100xtg SMT Assembly machine, which has a 20000 CPH production capacity and is a complete solution for your smart factory, you can have more peace of mind. It does an excellent job and lowers your labor costs at the end of the month. Yes, of course! Grab yours immediately.




Product Description:



People frequently ask what an SMT machine accomplishes.

Well, surface mount technology (SMT) is an assembly and production method that applies electronic components directly to a printed circuit board's (PCB) surface, allowing automated production to complete more of the necessary assembly to create a functional board; according to a Google search, this is the answer too.
Additionally, those who own businesses are quite interested in this equipment.

And, of course, as a provider of this type of dependable machine, we offer a complete line-up that allows us to provide a complete solution for your good factory, and yes! the Yamaha Yg100xtg SMT Assembly Machine, one of the Yamaha series' classic models.




Important information regarding the product:





  1. Product Name: Yamaha Yg100xtg SMT Assembly machine
  2. Brand: Yamaha
  3. Category: Pick and place machine
  4. Origin: Japan
  5. 99% brand new and high quality.
  6. Production Capacity is CPH 20000
  7. PCB size: L50 x W50 mm (minimum), L460 x W335 mm, or L460 x W445 mm (maximum).
  8. Accuracy: (Chips) +-0.1 mm, (+-0.08 mm) (QFP)
  9. Stats 0.198 seconds for each chip, 1.7 seconds per QFP
  10. There is room for 100 cassettes of 8mm tape and 80 trays of YTF. (Option)
  11. 8-56 mm Tapes, Sticks, Bulks, and Trays are available for feed.
  12. Component sizes range from 0.6 mm x 0.3 mm to 32 mm x 100 mm, with a maximum component height of 6.5 mm.
  13. Maximum mounting data: 10000 mounting lines per production data, with a hard disk limit of 500 production data.
  14. L1, 655XW1, 408XH1, 850 mm for the machine.
  15. source of air at 0.55 MPa or higher, (4 to 6 Bar), in a clean, dry environment
  16. Standard export boxes and strong hardwood packages are both available for packaging.​







SPECIFICATION:











Product Name:



Yamaha Yg100xtg SMT Assembly machine



Mounting Capacity CPH 20000





Applicable PCB:



L50 x W50 mm (minimum), L460 x W335 mm, or L460 x W445 mm (maximum).





Angle of mounting:

+-180°, per 0.01°
Weight Approx.  1,450kg

power supply

3-Phase AC 200/208/220/240/380/400/416 V +1-10% 50/60 Hz

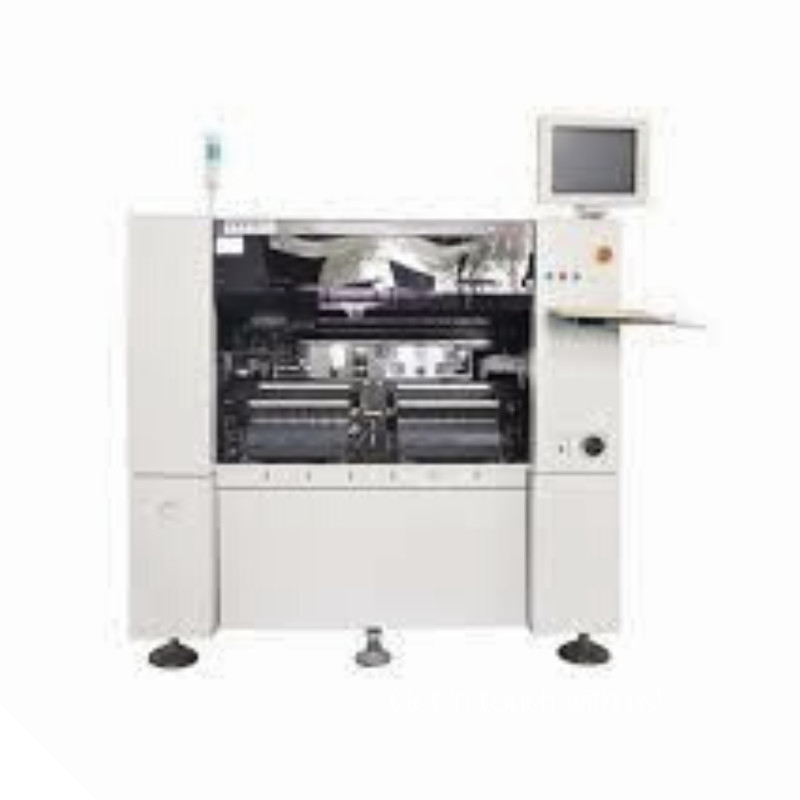

Yamaha YG100XTG SMT Assembly Machine Yamaha SMT Pick And Place Machine 0



A prominent supplier of SMT full-line equipment and accessories, And is a well-known business in China. We are pleased to provide you with our SMT Pick & Place equipment that is ready for the market as well as the necessary replacement parts, which include automated or semi-automatic printers, SMT Reflow ovens, AOI/SPI, SMT Feeders, Nozzles, and range of other things. The specifications for the product's quality will be satisfied, we promise. Our equipment is affordable, dependable, and trustworthy. It has a few fresh, excellent features that are appropriate for all of our consumers. You can get in touch with us if you want more information about our goods.

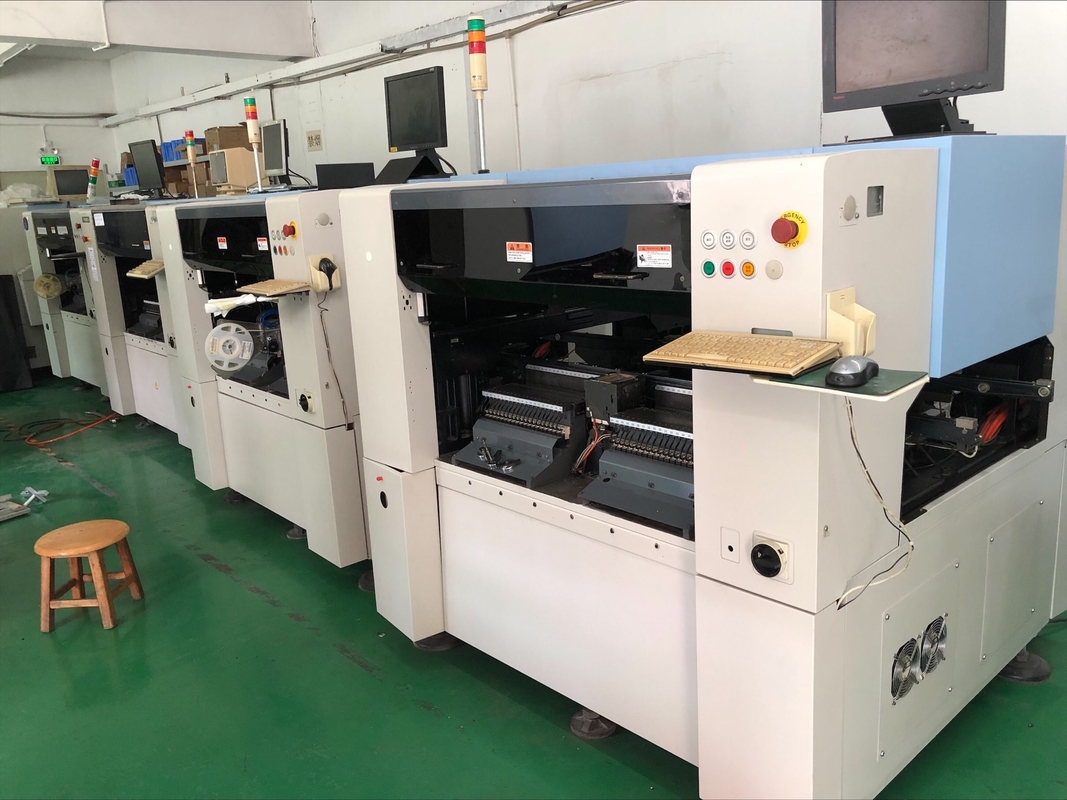

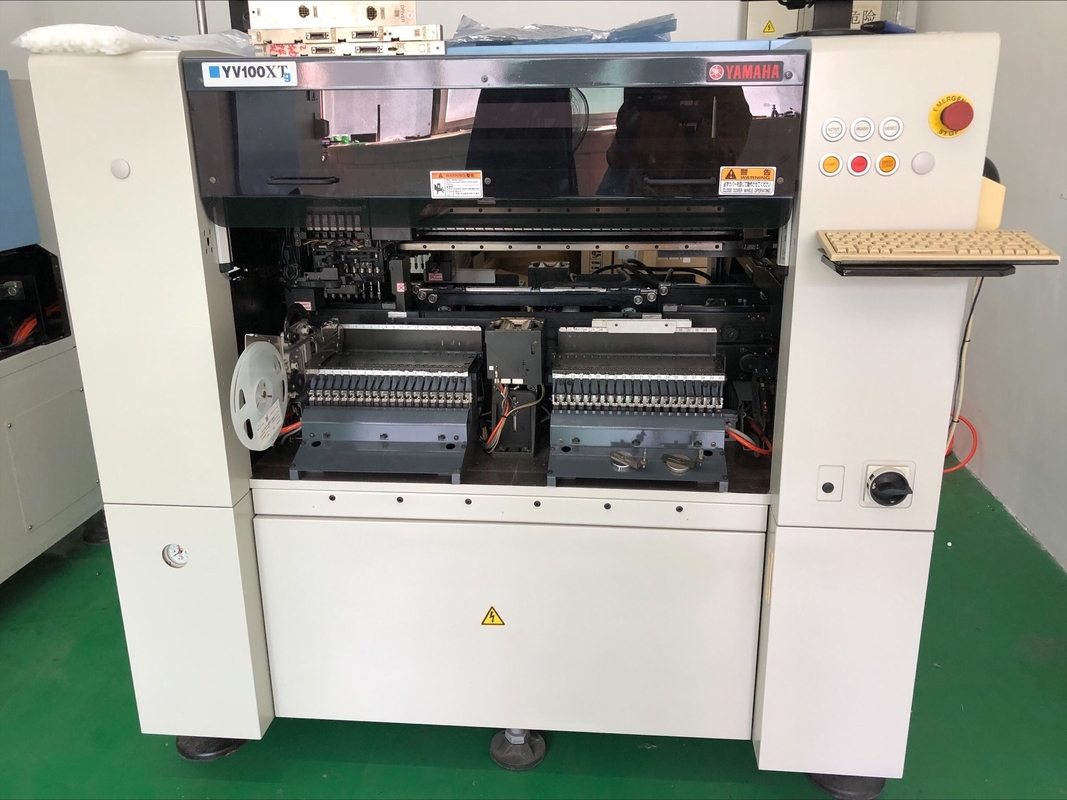

Yamaha YG100XTG SMT Assembly Machine Yamaha SMT Pick And Place Machine 1Yamaha YG100XTG SMT Assembly Machine Yamaha SMT Pick And Place Machine 2





Please let us know if you're interested!
