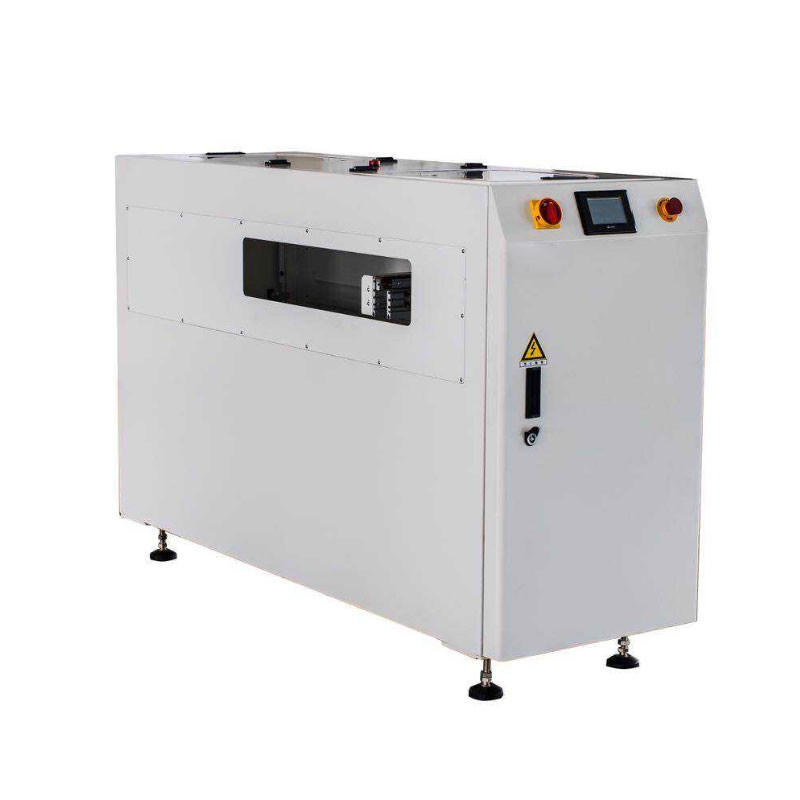

1m 2m SMT PCB Shuttle Conveyor PCB Translation PLC LED Touch Screen Control

1m 2m SMT PCB Shuttle Conveyor PCB Translation PLC LED Touch Screen Control

Products - PCB Handling Equipment
  • High Light

    SMT PCB Shuttle Conveyor

    ,

    1m PCB Shuttle Conveyor

    ,

    SMT PCB Translation Conveyor

  • Product Name
    SMT Translational Conveyor
  • Product Model
    SMT-ST350
  • Manufacturer
    SMTLINE
  • PCB MAX SIZE
    50*50-320*250mm/350
  • Belt Type
    Belt
  • Power
    AC110/AC220V,50-60HZ
  • Transport Height
    H=900
  • Conveyor Directtion
    Left To Right/right To Left
  • Lead Time
    7-10days
  • Air
    0.4-0.61Mpa
  • Machine Size
    600MM*1000MM*900MM Or Customize
  • Weight
    265kg
  • Place of Origin
    China
  • Brand Name
    SMTLINE
  • Certification
    CE-smt parallel transplanter
  • Model Number
    SMT-ST350
  • Minimum Order Quantity
    1
  • Price
    500
  • Packaging Details
    Standard woodenbox
  • Delivery Time
    3-4days
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union, MoneyGram
  • Supply Ability
    5perday

1m 2m SMT PCB Shuttle Conveyor PCB Translation PLC LED Touch Screen Control

  • 1m 2m SMT PCB Shuttle Conveyor PCB Translation PLC LED Touch Screen Control
  • 1m 2m SMT PCB Shuttle Conveyor PCB Translation PLC LED Touch Screen Control
Get Price Contact Now

1m 2m SMT PCB Shuttle Conveyor PCB Translation PLC LED Touch Screen Control​



SMT PCB Shuttle Conveyor , SMT Translational Conveyor 1M,2M,3M Customize





Product Name
PCB Translation Shuttle Conveyor SMT Translational Conveyor for LED production line
Model
SMT-ST350
Dimensions
500*W*1050mm or Customize
PCB size
50*50-330*250mm
PCB thickness
Min.0.6mm
Belt type
Round belt or flat belt (optional)
Power/power consumption
AC 1P 110V/220V 50/60HZ
Conveyor height
900±20mm
Conveyor direction
L-R or R-L (optional)
Weight
Approx.140Kgs



Features:
1. PLC+LED touch screen control, easy to operate.
2. Full closed design ensures safety level of operation.
3.The cover can be opened to facilitate machine maintenance.
4. Smooth and precise width adjustment (leadscrew).
5. Smooth and accurate movement (stepping motor).
6. Minimize the transmission gap between conveyors.
7. With SMEMA signal.





Machine features
* Semi-closed design ensures the highest level of safety protection
* PLC control system, color touch screen operation interface
* The position and direction of the PCB can be freely selected
* Automatic width adjustment, displacement by precision screw driver
* Standard SMEMA signal communication mode

Machine function:

In SMT Production Line for two rail conveyor into one conveyor, there are the translation conveyor machine for change the
conveying direction of PCB in the line. More stable and flexible machine.
Description
The equipment is used to change the conveying direction of circuit board in the production line, scattered or assembled
Transport height
900±20 mm
Power consumption
Single phase AC 110-220V(optional), up to 300 volt amperes
Decentralized and collective functions
Two in and one out, one in and two out(optional)





01. High temperature

The machine is easy to malfunction in the high temperature environment, thus affects the production. Manufacturers do not know the cause of the case that is mechanical damage, only normal use, attention to maintenance and micro-repair, these mechanical failure control.

02. Volitage problem

After-sales service manufacturers often encounter customer response to mechanical failure, such as mechanical heating can not work, unable to rotate control display instability. The causes of the above failures, in addition to a few poor quality, most of the voltage is not enough, capacity is not enough, line aging and lead to imbalance between circuits. If it is not repaired in time, the machine will burn out.

03. Professional maintenance

Equipment professional electrical maintenance personnel, regular maintenance and repair of machinery. Can also be under the guidance of manufacturers to do a good job in the daily maintenance and regular maintenance of machinery.







Packing & Delivery

1m 2m SMT PCB Shuttle Conveyor PCB Translation PLC LED Touch Screen Control 0



After sales sevice

1. Before order:

We will support professional suggestion of SMT line
We will recommend the best model according to the products
We will supply best quotation with factory price


2. After order:
Machine will have good test and aging before shipping
We support machine free installation and training, special time we support online training, and video teaching.
We have Professional after-sales team, could solve problem as soon as possible
Machine warranty is one year, during warranty, any parts need to be repaired and replaced will be free for clients.



1m 2m SMT PCB Shuttle Conveyor PCB Translation PLC LED Touch Screen Control 1

What we can do for you:


※ We have our own factory make SMT equipments and devices
※ We have a professional technich engineer team for produce machines

※ We can customize variety of SMT machines for you according your requirements

※ We buy and sell used and new SMT equipments all over the world

※ We provide you SMT full line machines and export to worldwide
※ Becoming the most reliable Chinese partner for you.



Our Service

1, SMT full line solution

2, SMT Peripheral equipments manufacturer

3, SMT feeder, smt nozzle, smt feeder calibration, PCB trolley, feeder trolley, PCB strorage, SMT squeegee manufacturer

4, Buy and sell used and new YAMAHA JUKI FUJI PANASONIC SAMSUNG and reflow oven printers











1m 2m SMT PCB Shuttle Conveyor PCB Translation PLC LED Touch Screen Control 2













1m 2m SMT PCB Shuttle Conveyor PCB Translation PLC LED Touch Screen Control 3
