Anti Static PCB Handling Equipment SS201 ESD PCB Storage Racks

Anti Static PCB Handling Equipment SS201 ESD PCB Storage Racks

  • High Light

    SS201 PCB Handling Equipment

    ,

    ISO PCB Handling Equipment

    ,

    SS201 ESD PCB Storage Racks

  • Product Name
    ESD PCB Storage Racks
  • Product Model
    CNSMT-SPT801
  • Supplier
    CNSMT
  • Material
    Stainless Steel,Plastic
  • Application
    Storage PCB Board
  • Nos Of Pcb
    300/400/500/600
  • Diamension
    L495*W750*H95(mm) Or Customize
  • Weight
    13kg
  • Place of Origin
    China
  • Brand Name
    CNSMT-ESD PCB Storage trolley
  • Certification
    CE-ESD PCB Storage trolley
  • Model Number
    ESD PCB Storage trolley
  • Minimum Order Quantity
    1
  • Price
    500
  • Packaging Details
    Standard woodenbox
  • Delivery Time
    3-4days
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union, MoneyGram
  • Supply Ability
    5perday

Anti Static PCB Handling Equipment SS201 ESD PCB Storage Racks

Anti Static PCB Handling Equipment SS201 ESD PCB Storage Racks​



ESD PCB Storage trolley,Anti-static PCB board turnover cart,PCB esd turnover rack



[Product name]: ESD PCB Storage trolley
[Product brand]: CNSMT
[Product material]: stainless steel/plastic
[Product description]:

Anti-static PCB board turnover cart,PCB esd turnover rack


[Product weight]: about13KG
[Dimensions]: 850*540*1260 350mm or customize
[Applicable models]: SMT storage trolley



Product Size Product specifications product material
850*540*1260 350 turnover car 200/300/400/500 layers for 350-slot board 201 stainless steel, PP grooved plate, ordinary four-inch wheels
850*540*1260 460 turnover car 460 slot board is stored with 200/300/400/500 layers 201 stainless steel, PP grooved plate, ordinary four-inch wheels
850*600*1260 530 turnover car 200/300/400/500 layers are stored in the 530 slot board 201 stainless steel, PP grooved plate, ordinary four-inch wheels
850*700*1260 630 turnover car 630 slot board is stored with 200/300/400/500 layers 201 stainless steel, PP grooved plate, ordinary four-inch wheels



Anti Static PCB Handling Equipment SS201 ESD PCB Storage Racks 0

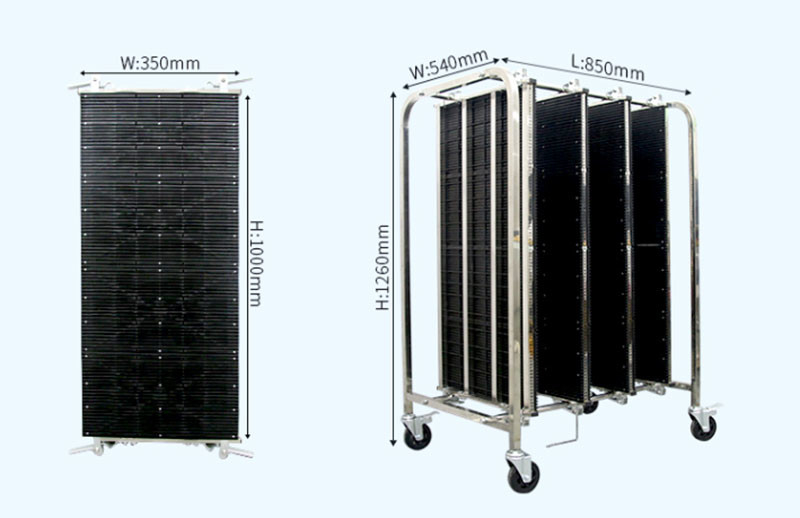

O Product name: Anti-static PCB turnover cart
O Appearance size: 850*540*1260mm
O Steel specifications: 25*25/25*13/<|)21-21mm
O side panel size: 1000*350mm
O PP board thickness: 10mm
O Product resistance: 106-109Q
O product material: 201 stainless steel, PP board
O caster size: 4 inches
O Store in each column: 100 layers
O Electrostatic measures: grounding chain

Anti Static PCB Handling Equipment SS201 ESD PCB Storage Racks 1

PCB storage cart product information:
ESD Anti-static turnover carts are also called PCB turnover carts, transfer carts, storage carts, etc.
is widely used in SMT processing, machinery, automobiles, home appliances, light industry, electronics and other manufacturing enterprises.



It is resistant to acid and alkali, oil stains, and odorless. It can be used to store PCB boards, which is easy to clean, convenient for PCB turnover, neatly stacked, and easy to manage. Its reasonable design and excellent quality are suitable for transportation, distribution, storage, circulation processing and other links in SMT factories.



Anti-static turnover carts can be used in various warehouses, production sites and other occasions. Nowadays, when management is more and more important to the majority of enterprises, anti-static turnover carts help complete the generalized and integrated management of the storage of production items. Products of modern management.


PCB turnover cart features, odorless, moisture-proof, corrosion-resistant, flexible turnover, adjustable, gorgeous appearance and other features.



PCB turnover car trolley performance


It has anti-folding, anti-aging, high load-bearing strength, tension, compression, tearing, and high temperature. It can be used as a PCB turnover cart for both turnover and semi-finished products storage.



It is lightweight, accurate, and adjustable.
Various specifications and sizes can be customized according to user needs, and can be equipped with wheels or fixed foot cups, dust-proof, anti-static, and beautiful in appearance.


General anti-static turnover carts are designed and manufactured according to the size provided by the customer. They can be loaded reasonably and can be discharged in multiple rows.



The space of the workshop is effectively used, and the storage of electronic components, PCB boards and dust-free workshop parts is increased, and production costs are saved.


Material: stainless steel frame of circuit board turnover cart, conductive PP injection groove plate, conductive plastic wheel, metal grounding chain, etc. (Support customized)


Structure: According to different positions, the turnover car groove board can be divided into side board and middle board. The side board is a single-sided groove board, and the middle board is a double-sided groove board. Each side is assembled with 4 small boards. The board has 25 slots.


PCB insertion direction: horizontal insertion. The lower end of the slot plate is equipped with an improved ** clamp, which is convenient to use. Equipped with four-inch conductive universal wheels, two of which are brake wheels. A metal grounding chain is installed at the bottom of the car, even if the wheels are affected by dust, static electricity can still be discharged through the grounding chain.


Performance: It has anti-static and dust-proof functions. The slot board is assembled from small boards, which has a certain degree of expansion and contraction.



Partial damage can be replaced. The slot board spacing can be adjusted at will according to the size of the PCB board. It can be used for turnover and storage of semi-finished products. Due to the multi-row storage, the storage capacity is large, which can effectively use the plant space and reduce the cost. The four universal wheels at the bottom of the car can be turned 360 degrees and can be moved freely. Lightweight**, reliable.


Product parameters: surface resistance 10^4Ω-10^6Ω, the number of columns is 2-5 columns, each column has 100 slots, the relevant dimensions of the slot plate, slot depth 4mm, slot width 5mm, slot spacing 10mm, slot length 355mm, 460mm, 530mm .


The specification of the turnover cart can be customized according to the requirements, and the width of the board and the board can be adjusted arbitrarily to suit the width of the PCB board

Anti Static PCB Handling Equipment SS201 ESD PCB Storage Racks 2


Company Information


CNSMT is the leading manufacturer and supplieir for SMT machines and Solution with over 10 years' experience in China. And we can also do OEM&ODM for SMT traders, we have vast of sources in SMT field,even you need used or new SMT equipments or other parts, we can help you get the best quality and competitive cost machines.

What we can do for you:



※ We have our own factory make SMT equipments and devices
※ We have a professional technich engineer team for produce machines

※ We can customize variety of SMT machines for you according your requirements

We buy and sell used and new SMT equipments all over the world

※ We provide you SMT full line machines and export to worldwide
※ Becoming the most reliable Chinese partner for you.
