    24mm PCB Handling Equipment

    ,

    24mm smt reel rack

    ,

    24mm Smt Reel Storage Rack

  • Product Name
    Smt Reel Storage Rack
  • Product Model
    CNSMT-TRE801
  • Supplier
    CNSMT
  • Material
    Stainless Steel
  • Application
    Storage Tape Reel Of 8mm/12/16mm 24mm
  • Nos Of Teel
    30-200
  • Diamension
    907*457 Or 1215*457 Or Customize
  • Weight
    15kg
  • Place of Origin
    China
  • Brand Name
    CNSMT-smt reel storage
  • Certification
    CE-SMT reel storage
  • Model Number
    SMD tape reel hanging trolley
  • Minimum Order Quantity
    1
  • Price
    500
  • Packaging Details
    Standard woodenbox
  • Delivery Time
    3-4days
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union, MoneyGram
  • Supply Ability
    5perday

24mm PCB Handling Equipment Single Double Peak Grid Smt Reel Storage Rack

24mm PCB Handling Equipment Single Double Peak Grid Smt Reel Storage Rack​



SMT reel storage, SMD tape reel hanging trolley, single and double peak grid racks



[Product name]: SMT reel storage
[Product brand]: CNSMT
[Product material]: stainless steel
[Product description]:

MD tape reel hanging trolley, single and double peak grid racks
[Product weight]: about1 5KG
[Dimensions]:
907*457 or 1215*457 or customize
[Applicable models]: SMT  tape reel storage



SIZE option:

90-45*15 (T4 layer (2 doubles, 1 single and 1 flat) + wheels
90-45*150 clever layer (3 double 2 single) + wheels
90-45*150 clever layers (3 pairs, 1 single and 1 flat) + wheels
90-45*150 clever layers (2 doubles, 2 singles and 1 flat) + wheels
90X45*104 Granville armrests (2 pairs) + wheels
90-45*104 Granville armrest (3 pairs) + wheels
90-45*104 Granville armrest (2 pairs and 1 single) + wheels
120*45*150*4 layers (2 plays, 1 single and 1 flat) + wheels
120*45*150*5 layers (3 plays and 2 levels) + wheels
120*45*150*5 layers (3 plays and 2 singles) + wheels
120*45*150*5 layers (3 plays, 1 single and 1 flat) + wheels
120*45*150*5 layers (2 plays, 2 singles and 1 flat) + wheels
120*45*104/play armrests (2 pairs) + wheels
120*45*104/Double armrests (3 pairs) + wheels
120*45*104/play armrest (2 pairs and 1 single) + wheels


24mm PCB Handling Equipment Single Double Peak Grid Smt Reel Storage Rack 0

How many sizes are there?

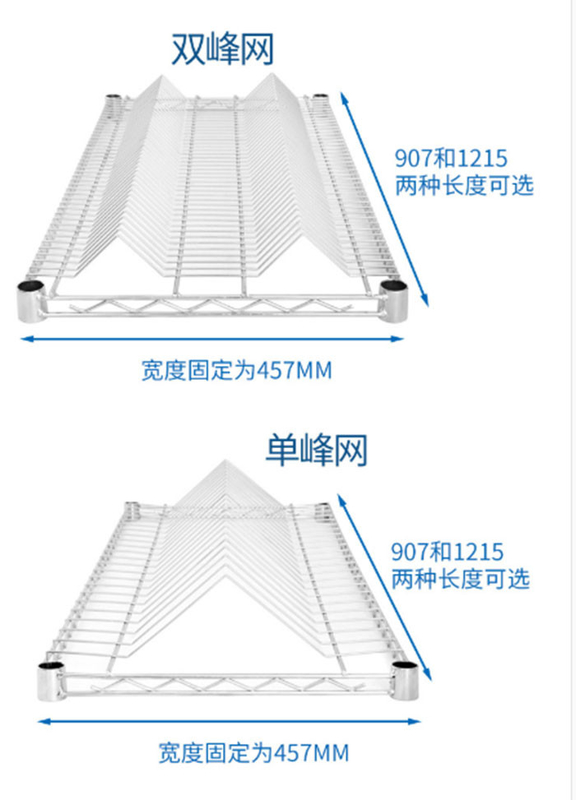

length
Both single and double peaks have two lengths of 907 and 1215MM
width
The width of the single and double peak layer net is fixed at 457MM
high
Height 600-2200MM arbitrarily choose
Number of layers
2, 3, 4, 5, 6, 7 layers optional

24mm PCB Handling Equipment Single Double Peak Grid Smt Reel Storage Rack 1



Highly customizable layer number optional
Adjustable layer spacing
Product name: SMT tray car Chrome-plated material rack specifications: length * width * height (unit: mm)
2: L1215*W457*H1500mm 1: L907*W457*H1500mm
Configuration: 3 layers of bimodal mesh, 1 layer of unimodal mesh, 1 layer of flat mesh with PVC wheels (two brakes, two no brakes)
One U-shaped handle.
It can be configured at will, the number of layers can be added or subtracted, and the installation is convenient and quick. It can be configured according to customer needs.



Name:
SMT material rack :
Chrome-plated carbon steel/PPI material specifications:
Length 1215*Width 457mm/Length 907*Width 457mm
Index:
Main wire diameter 6.0mm, secondary wire diameter 3.0mm, splash wire diameter 4.5mm, mesh:
Double-peak mesh single-peak mesh flat mesh column:
The diameter is 25.4mm and the height can be selected from 500-2200. 1 Anti-static value: 105-1089.
2Durable structure. The single-layer load-bearing capacity can reach 180KG. Function:
3 Easy to install. It can be installed on site without tools. 4 Free DIY. Casters, armrests and other auxiliary accessories can be added.

24mm PCB Handling Equipment Single Double Peak Grid Smt Reel Storage Rack 2

High-quality carbon steel chrome plated
Made of high-quality carbon steel, advanced chromium plating process, special thickening treatment, rust and corrosion prevention
Professional treatment, smooth and flat surface
The product has been treated by pickling, decontamination, polishing and other technical treatments, smooth and smooth, without burrs. Natural high-strength wear resistance.
Thick chrome plating, anti-rust, anti-corrosion
The special chrome layer is thickened, and the workmanship is more refined, which distinguishes the inscription dust mat of other products.

The thick chromium layer ensures that the product is not easy to rust and corrosion resistance,
High temperature resistance up to 500℃, wear resistance
Chrome plating has good heat resistance, high heat below 500℃, its gloss and hardness are uniform
No obvious change, high-strength wear resistance, durable

24mm PCB Handling Equipment Single Double Peak Grid Smt Reel Storage Rack 3

Slub design height adjustment
The column adopts bamboo tube design, combined with the conical clip, the height of the mesh can be adjusted at will
Fully automatic CNC grooving is used to ensure that the spacing and depth of each groove are consistent, without burrs, and not hurting hands.
Each section is 25mm, and every five sections is equipped with a double groove, which can be fine-tuned to ensure the same height of the four corners.

Diameter of slub tube: 25.4mm Interval between grooves: 25mm Wall thickness of slub tube: 1.2mm
It is normal for the clip to be installed with gaps
All clips are made of ABS native environmentally friendly plastic, which is strong and wear-resistant. There are more protruding slots inside and more powerful locking grooves, which are not easy to fall.
When installing, the clip arrow points upwards
Clip cone design freely adjust the height

24mm PCB Handling Equipment Single Double Peak Grid Smt Reel Storage Rack 4

Installation Notes
1. First put the end of the slub tube with the wheel facing upward, and then put the wheel sideways into the slub tube opening. The wheel is slightly inclined to follow the semi-circular card pattern at the wheel bayonet. (The snap ring notch outwards )
2. Twitch down vigorously to snap the card pattern into the slub tube.
3. The four columns are placed side by side, and the clamps are installed at the same height of each column to fix the tube. (When installing the clamps, please put the smaller end upwards)

4. First put a net piece vertically on the ground, put the column into the four-end vertebral sleeve (into the larger end of the spinal canal), and then erect the layer net!
5. At this time, the second mesh can be installed. Before installation, please measure the height of the items to be placed. Install the clips on the four pillars, and then load the mesh from top to bottom.
6. All meshes are installed in the same way, after the combination is completed,
Note: After confirming that the mesh is adjusted to the horizontal state, it can be used.
