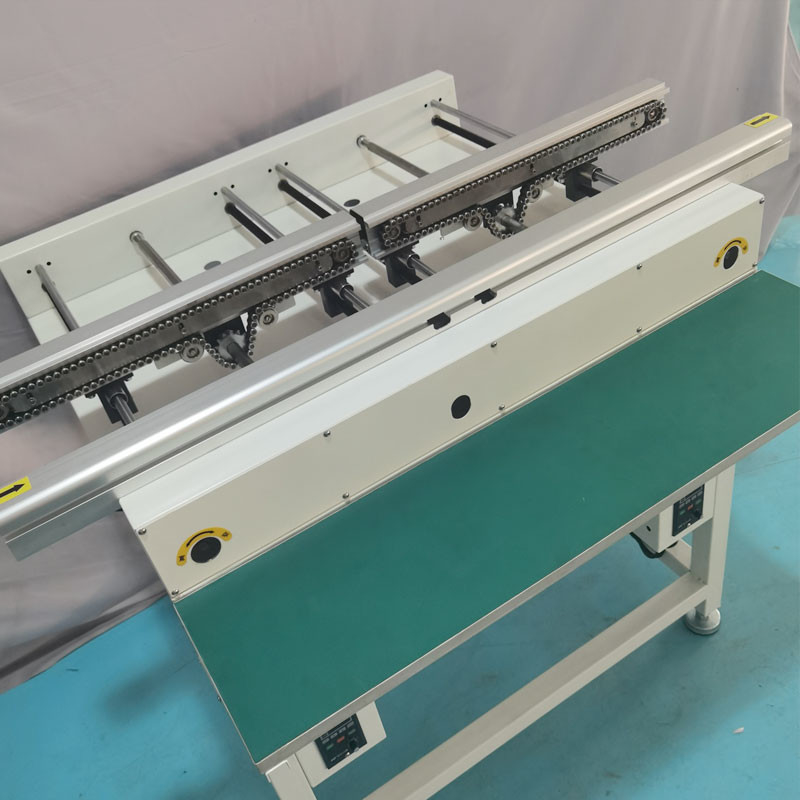

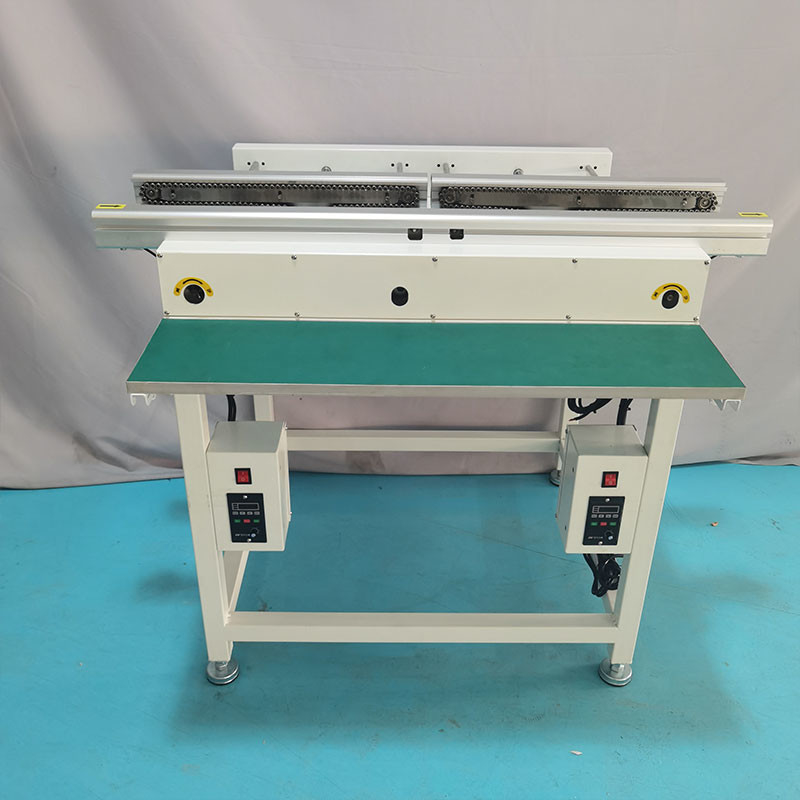

30W PCB Handling Equipment Wave Solder Pcb Inspection Conveyor

30W PCB Handling Equipment Wave Solder Pcb Inspection Conveyor

  • High Light

    30W PCB Handling Equipment

    ,

    30W Pcb Inspection Conveyor

    ,

    ODM Pcb Inspection Conveyor

  • Product Name
    SMT Chain Inspection Conveyor
  • Product Model
    SMT-DCW350
  • Manufacturer
    SMTLINE
  • PCB MAX SIZE
    50*50-320*350/460
  • Belt Type
    Chain
  • Power
    AC110/AC220V,50-60HZ
  • Transport Height
    H=750
  • Conveyor Directtion
    Left To Right/right To Left
  • Lead Time
    4-5days
  • Air
    0.4-0.6Mpa
  • Machine Size
    1000×700×750(mm)
  • Weight
    78kg
  • Place of Origin
    China
  • Brand Name
    SMTLINE
  • Certification
    CE-PCB WAVE SOLDER CONVEYOR
  • Model Number
    SMT-DCW350
  • Minimum Order Quantity
    1
  • Price
    500
  • Packaging Details
    Standard woodenbox
  • Delivery Time
    3-4days
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union, MoneyGram
  • Supply Ability
    5perday

30W PCB Handling Equipment Wave Solder Pcb Inspection Conveyor

30W PCB Handling Equipment Wave Solder Pcb Inspection Conveyor



SMT Chain inspection conveyor for PCB assembly,Wave solder conveyor





Specifications:

Outline dimensions 1000*750*1050mm
PCB width 50-350mm/460
Transport height 900±20mm
PCB transport direction L-R(R-L)
PCB transport velocity 0~1500mm
Power supply AC220V1P 50/60Hz/110V
Power consumption Approx.30W
Track length 1000mm(can be customized for different lengths)
Control mode PLC board
Lighting LED light
motor Step 42
Weight Approx78KG








1. Features

wave solder infeed conveyor for smt line

Product features:
1. It is used to feed PCB's or pallets into wave soldering machine at 6-7°.
2. Conveyor width and angle can be adjusted by hand crank.
3. Special belt and track, transmission smooth, and work stable and reliable.

30W PCB Handling Equipment Wave Solder Pcb Inspection Conveyor 0



Packing & Delivery


30W PCB Handling Equipment Wave Solder Pcb Inspection Conveyor 1

30W PCB Handling Equipment Wave Solder Pcb Inspection Conveyor 2

What we can do for you:


※ We have our own factory make SMT equipments and devices
※ We have a professional technich engineer team for produce machines

※ We can customize variety of SMT machines for you according your requirements

※ We buy and sell used and new SMT equipments all over the world

※ We provide you SMT full line machines and export to worldwide
※ Becoming the most reliable Chinese partner for you.



Our Service


1, SMT full line solution

2, SMT Peripheral equipments manufacturer

3, SMT feeder, smt nozzle, smt feeder calibration, PCB trolley, feeder trolley, PCB strorage, SMT squeegee manufacturer

4, Buy and sell used and new YAMAHA JUKI FUJI PANASONIC SAMSUNG and reflow oven printers





30W PCB Handling Equipment Wave Solder Pcb Inspection Conveyor 3

FAQ:
Q: What we can do for you?
A: We provide SMT&DIP machine,we can aslo provide Production line scheme,such as Whole coating line,SMT line,DIP line and so on.Professional Technical Support and Service.

Q: What is your delivery date?
A: The delivery date is about 5-7 working days after receive the payment.

Q: What is your payment terms?
A: TT 100% payment in advance.

Q: This machine is easy to use ? if I have no experience, I can also operate it well ?
A: Yes, our machine is designed to use easily, Normally it will take you 1 day to learn how to operate, if you are a technician, it will much faster to learn.

Q: Do you provide the user manual and operating videos to support us ?
A: We will provide the English user manual for free , and the operation video is available.Our software is all English.

Q: What is the payment way ?
A: We accept the payment terms: T/T, WesterUnion, Moneygram, Paypal, etc.

30W PCB Handling Equipment Wave Solder Pcb Inspection Conveyor 4
