500mm Dual Track Wave Solder Smt Conveyor Belt Cooling Fan for PCB assembly

500mm Dual Track Wave Solder Smt Conveyor Belt Cooling Fan for PCB assembly

  • High Light

    500mm Smt Conveyor Belt

    ,

    600mm Smt Conveyor Belt

    ,

    500mm smt conveyor

  • Product Name
    SMT Cooling Fan Conveyor For PCB
  • Product Model
    SMT-DW350
  • Manufacturer
    SMTLINE
  • PCB MAX SIZE
    50*50-320*350
  • Belt Type
    Belt/Chain
  • Power
    AC110/AC220V,50-60HZ
  • Transport Height
    H=902
  • Conveyor Directtion
    Left To Right/right To Left
  • Lead Time
    4-5days
  • Air
    0.4-0.6Mpa
  • Machine Size
    600*700*950 Mm
  • Weight
    75kg
  • Place of Origin
    China
  • Brand Name
    SMTLINE
  • Certification
    CE-PCB WAVE CONVEYOR
  • Model Number
    SMT-DW350
  • Minimum Order Quantity
    1
  • Price
    500
  • Packaging Details
    Standard woodenbox
  • Delivery Time
    3-4days
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union, MoneyGram
  • Supply Ability
    5perday

500mm Dual Track Wave Solder Smt Conveyor Belt Cooling Fan for PCB assembly

500mm Dual Track Wave Solder Smt Conveyor Belt Cooling Fan For PCB Assembly

SMT Cooling Fan Conveyor for PCB,SMT Dual track Wave Solder Conveyor



Specifications:

Conveyor
SMT-DW350
Rail Length
500mm
600mm
1000mm
1200mm



1500mm
2000mm
Outer Dimension
500*700*950
mm
600*700*950
mm
1000*700*950
mm
1200*700*950
mm
1500*700*950
mm
2000*700*950
mm
PCB Width
50 to 350mm
PCB Direction
L to R or R to L
Speed
Adjustable
Weight
70kg
75kg
95kg
105kg
125kg
150kg





1. Features

Description

This equipment is used in the SMT production line or PCB board assembly line as an operator inspection workbench

1. Modular design, optional assembly as per client's requirement.
2. Rugged steel design, improves equipment stability .
3. Smooth stainless steel screw to adjust the width of the rail.

4. Variable speed control.
5. Circuit board testing mode.
6.  Using a dedicated aluminum slot for transfer orbit to prevent PCB stuck.

7. Heavier bottom design, not easily shift.
8. Machine length can be customized. 9.Compatible with SMEMA interface.

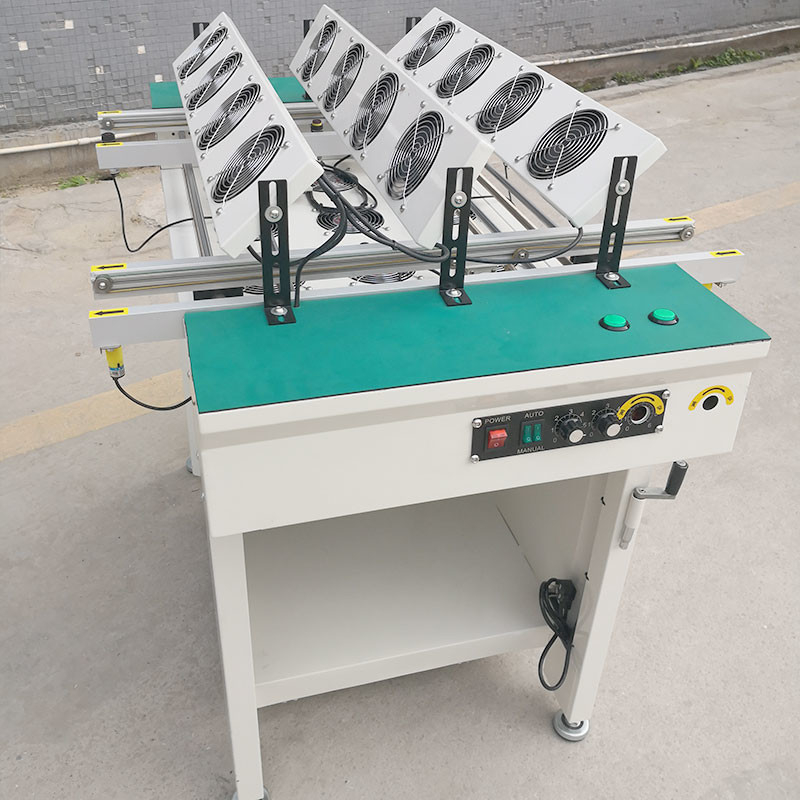

500mm Dual Track Wave Solder Smt Conveyor Belt Cooling Fan for PCB assembly 0

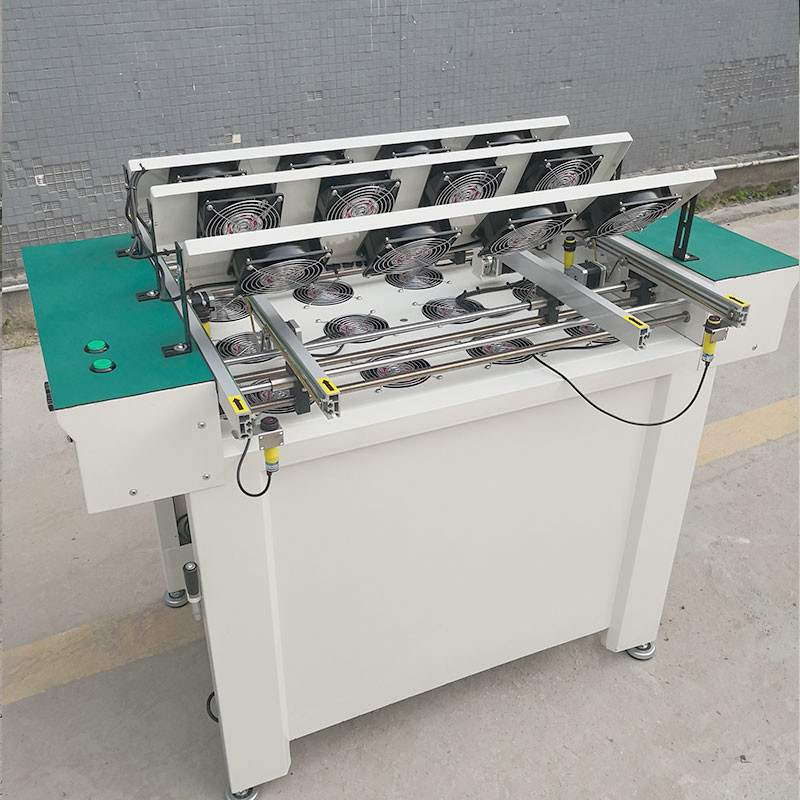

500mm Dual Track Wave Solder Smt Conveyor Belt Cooling Fan for PCB assembly 1

Packing & Delivery


500mm Dual Track Wave Solder Smt Conveyor Belt Cooling Fan for PCB assembly 2
500mm Dual Track Wave Solder Smt Conveyor Belt Cooling Fan for PCB assembly 3
What we can do for you:
※ We have our own factory make SMT equipments and devices
※ We have a professional technich engineer team for produce machines

※ We can customize variety of SMT machines for you according your requirements
※ We buy and sell used and new SMT equipments all over the world
※ We provide you SMT full line machines and export to worldwide
※ Becoming the most reliable Chinese partner for you.


Our Service


1, SMT full line solution
2, SMT Peripheral equipments manufacturer
3, SMT feeder, smt nozzle, smt feeder calibration, PCB trolley, feeder trolley, PCB strorage, SMT squeegee manufacturer
4, Buy and sell used and new YAMAHA JUKI FUJI PANASONIC SAMSUNG and reflow oven printers
