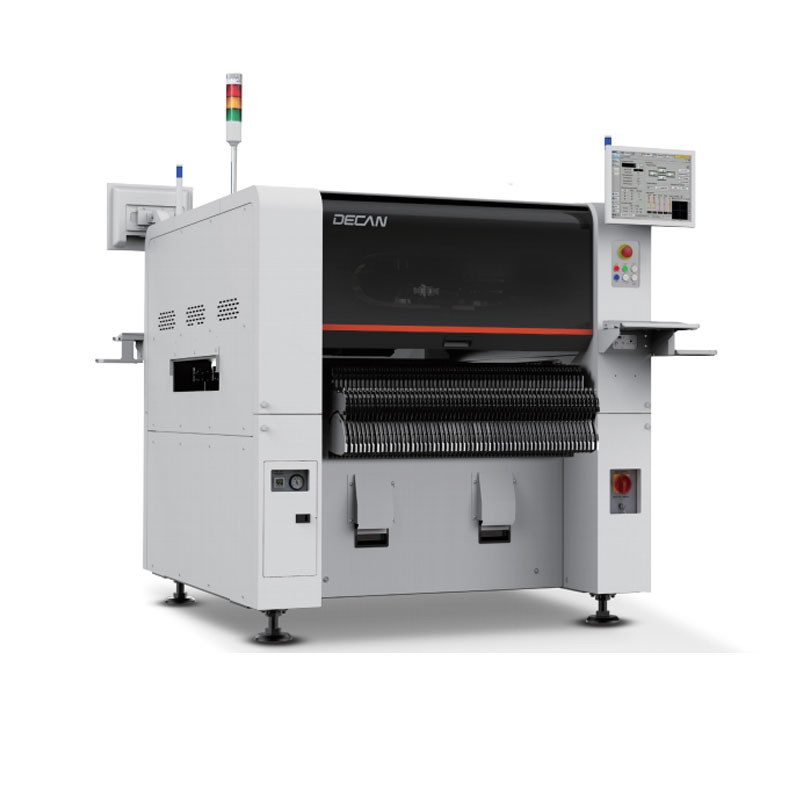

DECAN S2 Hanwha Samsung SMT Pick Place Machine 92000 CPH 380v

DECAN S2 Hanwha Samsung SMT Pick Place Machine 92000 CPH 380v

  • High Light

    380v SMT Pick Place Machine

    ,

    92000 CPH SMT Pick Place Machine

    ,

    92000 CPH pick and place pcb assembly

  • Product Name
    Samsung DECAN S2
  • Product Model
    DECAN S2
  • Manufacturer
    CNSMT
  • PCB SIZE
    50 X 40 ~ 510 X 460mm (Standard)
  • Component Size
    03015 ~ Max. □55mm (H15mm)
  • • Structure
    2 Gantry X 10 Spindles/Head
  • CPH
    92000 CPH
  • Lead Time
    3-5days
  • Machine Size
    1,430(L) X 1,740(D) X 1,485(H)
  • Weight
    1810kg
  • Warranty
    1YEAR
  • Place of Origin
    China
  • Brand Name
    Hanwha
  • Certification
    CE- Hanwha DECAN S2
  • Model Number
    samsung DECAN S2
  • Minimum Order Quantity
    1
  • Price
    500
  • Packaging Details
    Standard woodenbox
  • Delivery Time
    3-4days
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union, MoneyGram
  • Supply Ability
    5perday

DECAN S2 Hanwha Samsung SMT Pick Place Machine 92000 CPH 380v


DECAN S2 Hanwha Samsung SMT Pick Place Machine 92000 CPH 380v



Hanwha DECAN S2, Samsung pick and place machine


Specification:



Model DECAN S2 Hanwha Samsung SMT Pick Place Machine 92000 CPH 380v 0DECAN S2 DECAN F2 DECAN S2 Hanwha Samsung SMT Pick Place Machine 92000 CPH 380v 1DECAN L2
# of Spindles 2 Gantry x 10 Spidles/Head 2 Gantry x 10 Spidles/Head 2 Gantry x 6 Spidles/Head
Placement Speed
(Under optimum condition of as defined by Hanwha Techwin.)
92,000 CPH (Optimum) 80,000 CPH (Optimum) 56,000CPH (Flying Vision, Optimum)
- 0.14 seconds/component (Flying Vision, SOIC 0.5P)
- 0.55 seconds/component
(Upward Vision, QFP100 0.5P)
Vision Flying Vision Flying Vision Stage Vision(Option)
Placement Accuracy ±28µm Cpk≥1.0 (03015 chip)
±25µm Cpk≥1.0 (IC)
±40µm Cpk≥1.0 (0402 (01005 inch) chip)
±30µm Cpk≥1.0 (IC, Stage Vision)
Component Range 03015 ~
Max. □55mm (H15mm)
0402 (01005 inch) ~ Max. □55mm (H15mm) 0402 (01005 inch) ~
Max. □55mm, L75mm (H25mm)
PCB Size 50 x 40 ~ 510 x 460mm (Standard)
~ 610 x 460mm (Option), ~ 740 x 460mm (Option)
~ 810 x 460mm (Option), ~ 1,200 x 460mm (Option)
Conveyor Configurations Standard : 1-2-1
Option : 1-2-2/2-2-2/2-2-1/1-1-1
Factory Option : Single Conveyor (Jedec Tray 2ea)
Feeder Capacity 120ea (8mm)
Power Voltage : 3 phase AC200/208/220/240/380/415V ±10% Frequency : 50/60Hz
Power Consumption : Max. 5.0kVA
Air Consumption 50Nl/min
Weight About 1,800kg
External Dimensions (mm) 1,430(L) x 1,740(D) x 1,485(H)

SMT production line
SMT automated production line
SMT production line Shenzhen factory
SMT production line equipment manufacturers
Product Overview: Samsung/Samsung SMT full-automatic production line rental, lease, sales, second-hand full-automatic SMT production line is of good quality, easy to operate, and cheap, suitable for start-up SMT factories or semi-automatic production lines to be upgraded to full-automatic production line factories.

DECAN S2 Hanwha Samsung SMT Pick Place Machine 92000 CPH 380v 2

Key words:



SMT production line, SMT automated production line, SMT production line price, SMT production line procurement, fully automatic SMT production line, semi-automatic SMT production line, large SMT production line, medium SMT production line, JUKI SMT production line, Samsung/ Samsung SMT production line, Yamaha/Yamaha SMT production line, Panasonic/ Panasonic SMT production line, FUJI/Fuji SMT production line

DECAN S2 Hanwha Samsung SMT Pick Place Machine 92000 CPH 380v 3DECAN S2 Hanwha Samsung SMT Pick Place Machine 92000 CPH 380v 4

DECAN S2 Hanwha Samsung SMT Pick Place Machine 92000 CPH 380v 5DECAN S2 Hanwha Samsung SMT Pick Place Machine 92000 CPH 380v 6DECAN S2 Hanwha Samsung SMT Pick Place Machine 92000 CPH 380v 7DECAN S2 Hanwha Samsung SMT Pick Place Machine 92000 CPH 380v 8

Packing & Delivery




DECAN S2 Hanwha Samsung SMT Pick Place Machine 92000 CPH 380v 9

Certification



DECAN S2 Hanwha Samsung SMT Pick Place Machine 92000 CPH 380v 10

Company Information


CNSMT is the leading manufacturer and supplieir for SMT machines and Solution with over 10 years' experience in China. And we can also do OEM&ODM for SMT traders, we have vast of sources in SMT field,even you need used or new SMT equipments or other parts, we can help you get the best quality and competitive cost machines.

What we can do for you:



※ We have our own factory make SMT equipments and devices
※ We have a professional technich engineer team for produce machines

※ We can customize variety of SMT machines for you according your requirements

We buy and sell used and new SMT equipments all over the world

※ We provide you SMT full line machines and export to worldwide
※ Becoming the most reliable Chinese partner for you.



FAQ:


1. Are you factory?

Yes, we are factory supplier focus on humidity control for 14 years.



2. Can you email the catalog?

Yes, we can send you by email with whole catalog.



3. How to order online?

Confirm product (quantity, price, payment, shipping etc)---waiting for email ---confirm order---make initial payment---production finish---make balance payment---shipping
* click to learn about trade assurance


4. What about the payment way?
30% deposit, balance paid before delivery -- amount > USD5,000
100% deposit -- amount < USD5,000




5. What's the shipping way and timing?
We suggest to ship by sea to get cheapest rate, voyage date to America around 30~40 days, to Europe 25~30 days, to Asia and Austrilia 7~15 days. Click here to get exact timing.


6. What's the warranty item?
Warranty time normally is 12 months, if you want to extend the warranty time to 24 months, the value will be 10% more of your order.


7. Can I visit your factory?

Yes sure, welcome to visit our factory to get more profit.


8. How to contact with your factory?
Send inquiry in below form or send mail or call to select your way. Click here



9. Can you customize the product?
Yes, we can customize any products according to customer's requirements.

10. Which payment terms are you doing?
PayPal, West Union, T/T, (100% payment in advance.)

11. Which shipment is available?
By sea, by air ,by express or as your requirement.

12. Which country you have been exported?
We have been exported to many countries, all most all around the world, like Malaysia, Vietnam, Thailand, United States, France, Spain, Mexico, Dubai, Japan, Korea, Germany, Porland Etc.
