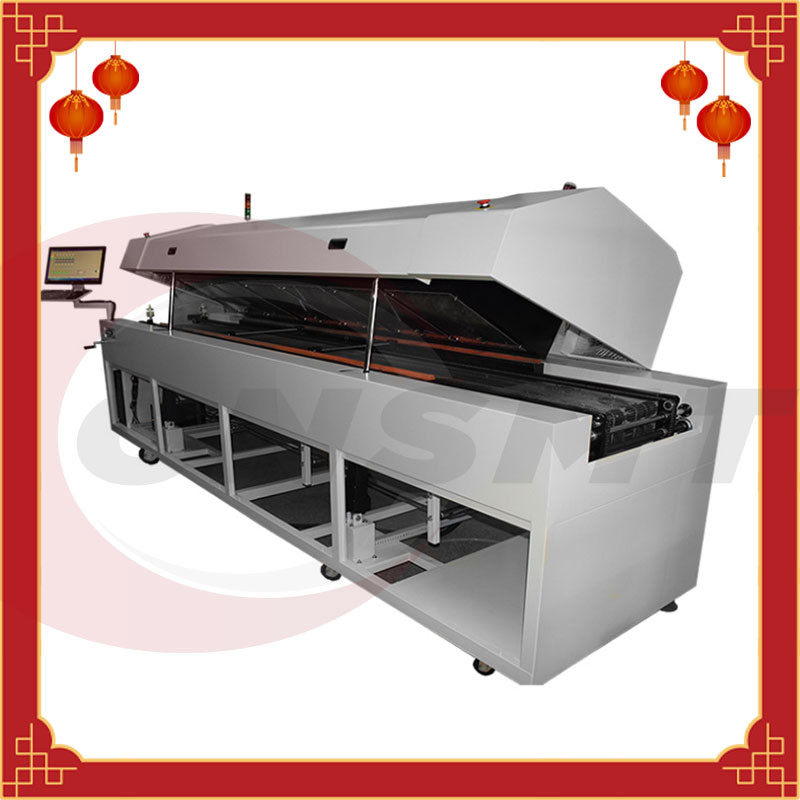

8 Zone SMT Vacuum Reflow Oven Machine 380V 50Hz CNSMT H8835M

8 Zone SMT Vacuum Reflow Oven Machine 380V 50Hz CNSMT H8835M

  • High Light

    50hz SMT Vacuum Reflow Oven

    ,

    380V SMT Vacuum Reflow Oven

    ,

    380V reflow oven machine

  • Product Name
    8 Zone SMT Reflow Oven-
  • Product Model
    CNSMT-H8835M
  • Supplier
    CNSMT
  • PCB MAX SIZE
    50-350 MM
  • Operating System
    WINDOWS
  • Heat QTY
    UP 8 DOWN 8
  • Conveyor Belt Width
    450MM
  • PCB Transportation Speed
    0~1.8m/min
  • Temperature Control Method
    PID+SSR
  • Power
    380V、50Hz
  • Machine Size
    4800*1100*1350MM
  • Weight
    1500kg
  • Place of Origin
    China
  • Brand Name
    CNSMT
  • Certification
    CE-SMT REFLOW OVEN
  • Model Number
    CNSMT-H8835M
  • Minimum Order Quantity
    1
  • Price
    1
  • Packaging Details
    Standard woodenbox
  • Delivery Time
    3-4days
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union, MoneyGram
  • Supply Ability
    5perday

8 Zone SMT Vacuum Reflow Oven Machine 380V 50Hz CNSMT H8835M

8 Zone SMT Vacuum Reflow Oven Machine 380V 50Hz CNSMT H8835M



8 Zone SMT Reflow Oven- CNSMT-H8835M




CNSMT is one of the leading manufacturer of SMT reflow oven in China, we provide you all the models of the solder reflow ovens, with good quality and competitive price.if you have any need , kindly contact us now!



We produce all kinds of reflow soldering machines,Including economic,Medium and large 8 zone reflow ovens, bellow is the Medium model:



eight temperature zone reflow oven Features:


MAIJIE heating wire heating technology, independent wind structure, upper and lower heating methods, high thermal efficiency, rapid heating, about 20 minutes from room temperature to set working temperature, the difference between the set temperature of the welding zone and the actual temperature is less than 30 ℃.



·Using Taiwan Mitsukoshi special high temperature motor, direct drive hot air heating, hot air balance, low noise, low vibration, 0201 components can not shift during transportation.



·Unique air duct design, uniform air distribution, large heat capacity, preheating zone, constant temperature zone and welding zone heating up and down, independent circulation, independent temperature control, the temperature control accuracy of each temperature zone is ±1℃, the furnace opening adopts electric top cover type .



·Suitable for debugging the temperature curves of various models, with double or triple soldering zone settings, three-wire PROFILE TEST △ T as small as 8 ℃, and the connection curve test is especially compatible with Japanese or European and American standard lead-free soldering processes.



·Using a newly designed special transportation guide rail, made of high-temperature resistant, wear-resistant aluminum alloy, high rigidity and no deformation.



The guide rail width adjustment system adopts a gear rack coaxial width adjustment device to ensure that the guide rail parallelism reaches ±5MM, which effectively prevents the occurrence of board jamming and board drop. And equipped with automatic and manual width adjustment device.



·The transportation system adopts Delta frequency converter stepless frequency conversion speed regulation, imported ZD motor drive, high-quality carbon steel chain and SUS316 stainless steel mesh belt for synchronous transportation, further ensuring smooth transportation. It is also equipped with UPS uninterruptible power supply and manual shake-out function, which can effectively prevent the PCB from being burned in the furnace due to sudden power failure.



·It has the function of timing automatic dripping and PCB counting.



·Adopt high-quality industrial computer control, LCD display, Windows XP operating system, flexible curve test and powerful dynamic curve analysis function, and all data can be printed and saved to meet the lead-free process.



·All electrical components are imported, and all signal wires are shielded to ensure long-term SMT 24-hour stable and reliable operation

8 Zone SMT Vacuum Reflow Oven Machine 380V 50Hz CNSMT H8835M 0



Specification  H8835


SMT 8 zones reflow oven way to control Computer control
SMT 8 zones reflow oven Number of heating zones 8 small circulation heating zones on the upper and lower sides
SMT 8 zones reflow oven heating method Up and down hot air
SMT 8 zones reflow oven Length of heating zone 3130MM
SMT 8 zones reflow oven Conveyor belt width 450MM
SMT 8 zones reflow oven PCB size 50-350 MM
SMT 8 zones reflow oven PCB limit is high 25 MM
SMT 8 zones reflow oven Transmission direction Left to right
SMT 8 zones reflow oven Delivery method Mesh belt + rail
SMT 8 zones reflow oven Conveyor belt height 900±20 MM
SMT 8 zones reflow oven PCB transportation speed 0~1.8m/min
SMT 8 zones reflow oven Temperature control accuracy ±1-2℃ (static)
SMT 8 zones reflow oven Temperature control range Room temperature~300℃ can be set
SMT 8 zones reflow oven Applicable solder type Lead-free solder/leaded solder
SMT 8 zones reflow oven Temperature control method PID+SSR
SMT 8 zones reflow oven power supply 380V, 50HZ, three-phase five-wire
SMT 8 zones reflow oven Starting power 48KW
SMT 8 zones reflow oven Operating power 10-15KW
SMT 8 zones reflow oven Running speed Approx.20min
SMT 8 zones reflow oven Dimensions 4800*1100*1350MM
SMT 8 zones reflow oven weight 1500kg
SMT 8 zones reflow oven PLC GUXIN
SMT 8 zones reflow oven Solid state Yangming (40A)
SMT 8 zones reflow oven Hot air motor Mitsukoshi Taiwan
SMT 8 zones reflow oven cooling fan Mitsukoshi Taiwan
SMT 8 zones reflow oven Governor Taiwan Jinyou
SMT 8 zones reflow oven Transport motor Taiwan Jinyou
SMT 8 zones reflow oven Contactor Normality
SMT 8 zones reflow oven Delayer RKC
SMT 8 zones reflow oven switch Schneider
SMT 8 zones reflow oven Heating wire Taiwan Taiwan Exhibition



8zone smt reflow oven Installation and use conditions


<1>Working voltage: AC380V 50HZ three-phase five-wire system.

<2> Ambient temperature: 5~40℃;

<3>Relative humidity: not more than 85%RH;

<4>Power switch: air switch

<5> Installed power: 48KW

<6>The ground is flat, and there should be no strong vibration and corrosive gas in the surrounding environment.



How to Check the 8 zone reflow oven curve




Temperature and time of eight temperature zones:



Temperature zone 1: 148 degrees;

Temperature zone 2: 180 degrees;

Temperature zone 3: 183 degrees;

Temperature zone 4: 168 degrees;

Temperature zone 5: 174 degrees;

Temperature zone 6: 198 degrees;

Temperature Zone seven: 240 degrees;

temperature zone eight: 252 degrees;



transportation speed: 0.6m/min; over-temperature alarm is set at 10 degrees.



Generally speaking, reflow soldering has only four temperature zones: preheating zone, constant temperature zone, reflow soldering zone, and cooling zone.



Regardless of how many temperature zones are used for reflow soldering, their temperature settings are set according to the principle of action of these four temperature zones. Generally, there are more eight-temperature zone reflow soldering on the market.



There is a certain temperature difference between the actual measurement temperature of reflow soldering and the set temperature of reflow soldering.



In fact, the high soldering temperature of lead-free reflow soldering is 245 degrees. The temperature of reflow soldering is set according to the temperature curve provided by the solder paste factory and the actual soldering product





Lead-free process: preheating zone: heating rate is 1.0~3.0℃/sec; immersion zone: heating rate is less than 2℃/sec, time 70~130℃/sec, temperature: 160~200℃; reflow zone: highest The temperature is 220~250℃, and the time above 220℃ is 30~90 seconds; cooling zone: the cooling rate is less than 4℃/s, the cooling termination temperature is preferably not higher than 75℃

8 Zone SMT Vacuum Reflow Oven Machine 380V 50Hz CNSMT H8835M 1

CNSMT8 temperature zone reflow soldering temperature zone is mainly divided into four temperature zones: preheating zone, constant temperature zone, welding zone, and cooling zone.


Preheating zone


Preheating is the first stage of the reflow process. During this reflow phase, the entire circuit board assembly is continuously heated towards the target temperature.



The main purpose of the preheating stage is to make the entire circuit board assembly safely reach the pre-reflow temperature. Preheating is also an opportunity for degassing of volatile solvents in the solder paste. In order for the paste-like solvent to be properly discharged and the components to safely reach the pre-reflow temperature, the PCB must be heated in a consistent linear manner.



An important indicator of the first stage of the reflow process is the temperature slope or temperature rise time. This is usually measured in degrees Celsius, C/s per second.



Many variables can affect this data, including: target processing time, solder paste volatility, and component considerations. It is important to consider all these process variables, but in most cases, consideration of sensitive components is crucial. "If the temperature changes too quickly, many components will break.



The maximum thermal change rate that the most sensitive component can withstand becomes the maximum allowable slope." However, if thermal elements are not used and yield is maximized, the slope can be adjusted to improve processing time.



Therefore, many manufacturers increase these slopes to the maximum universal allowable rate of 3.0°C/sec. On the contrary, if a solder paste containing a particularly strong solvent is used, heating the component too fast will easily cause an out of control process. Due to the degassing of volatile solvents, they may spill solder from the pads and solder plates.



Solder balls are the main problem of violent outgassing during the preheating phase. Once the circuit board heats up to temperature during the preheating phase, it should enter the constant temperature phase or the pre-reflow phase.

Constant temperature zone



Reflow soldering constant temperature zone is usually 60 to 120 seconds of exposure, used to remove solder paste volatiles and flux activation, where the flux group begins to oxidize and reduce on component leads and pads.



Excessive temperatures can cause solder splashing or balling, as well as oxidation of solder paste attachment pads and component terminals. Similarly, if the temperature is too low, the flux may not be fully activated.


Welding zone


The common peak temperature is 20-40°C higher than the liquidus. [1] The limit is determined by the component with the lowest high temperature resistance (the component most susceptible to heat damage) on the assembly.



The standard guideline is to subtract 5°C from the maximum temperature that the most vulnerable component can withstand to reach the maximum process temperature. It is important to monitor the process temperature to prevent exceeding this limit.



In addition, high temperatures (over 260°C) may damage the internal chips of SMT components and promote the growth of intermetallic compounds. Conversely, a temperature that is not hot enough may prevent the slurry from fully reflowing.



Cooling zone


The last area is a cooling area, which is used to gradually cool the processed board and solidify the solder joints. Proper cooling can inhibit the formation of excess intermetallic compounds or thermal shock to the components.



The typical temperature range of the cooling zone is 30-100°C. It is generally recommended that the cooling rate be 4°C/s. This is the parameter to be considered when analyzing the results of the process
