GKG H1500 LED SMT Automatic Printer

GKG H1500 LED SMT Automatic Printer

  • BOARD THICKNESS
    0.8~6mm
  • Printing Repeat Accuracy
    ±0.015mm
  • MAX BOARD SIZE
    1500mm*350mm
  • Printing Technology
    SMT Automatic Production Line
  • MAX BOARD WEIGHT
    10KG
  • Printing Press
    0.5-15kg
  • Clean System
    Dry,Wet,Vacuum
  • Stay Way Number
    1
  • Place of Origin
    CHINA
  • Brand Name
    GKG
  • Certification
    CE-GKG H1500
  • Model Number
    H1500
  • Minimum Order Quantity
    1
  • Price
    1
  • Delivery Time
    3
  • Payment Terms
    L/C, D/A, D/P, T/T
  • Supply Ability
    121

GKG H1500 LED SMT Automatic Printer

Product Description:

GKG H1500 SMT Stencil Printer

The GKG H1500 SMT stencil printer is a high-performance printing machine designed for SMT automatic production lines. It features a board trans speed of 900+_40, a stay way number of 1, a printing repeat accuracy of ±0.015mm, and a mark number of 4. Its superior printing technology ensures high-precision printing with extreme accuracy.

The SMT stencil printer is a reliable, durable, and cost-effective choice for SMT automatic production lines. It has a fast board trans speed, a low stay way number, and a high printing repeat accuracy, ensuring a high-precision printing process with minimal wastage. Additionally, its mark number of 4 provides flexibility when printing multiple layers.

The SMT stencil printer is a must-have for any SMT automatic production line. It is designed to be user-friendly and efficient, providing excellent printing quality and performance. With its superior printing technology, the SMT stencil printer is the ideal choice for high-precision printing.



Features:

  • SMT Stencil Printer - GKG H1500 SMT Printer
  • Automatic SMT Printer
  • Clean system: Dry,Wet,Vacuum
  • Stencil frame size: 720*300-1800*750mm
  • MAX BOARD SIZE: 1500mm*350mm
  • MAX BOARD WEIGHT: 10KG
  • Transmission direction: L-R,R-L


Technical Parameters:

Parameter Value
Product Name GKG SMT Stencil Printer
Max Board Size 1500mm*350mm
Transmission Direction L-R,R-L
Stencil Frame Size 720*300-1800*750mm
Snap Speed 0-20mm/sec
Board Trans Speed 900+_40
Printing Repeat Accuracy ±0.015mm
Mark Number 4
Stay Way Number 1
Min Board Size 80*50
Printing Speed High Speed

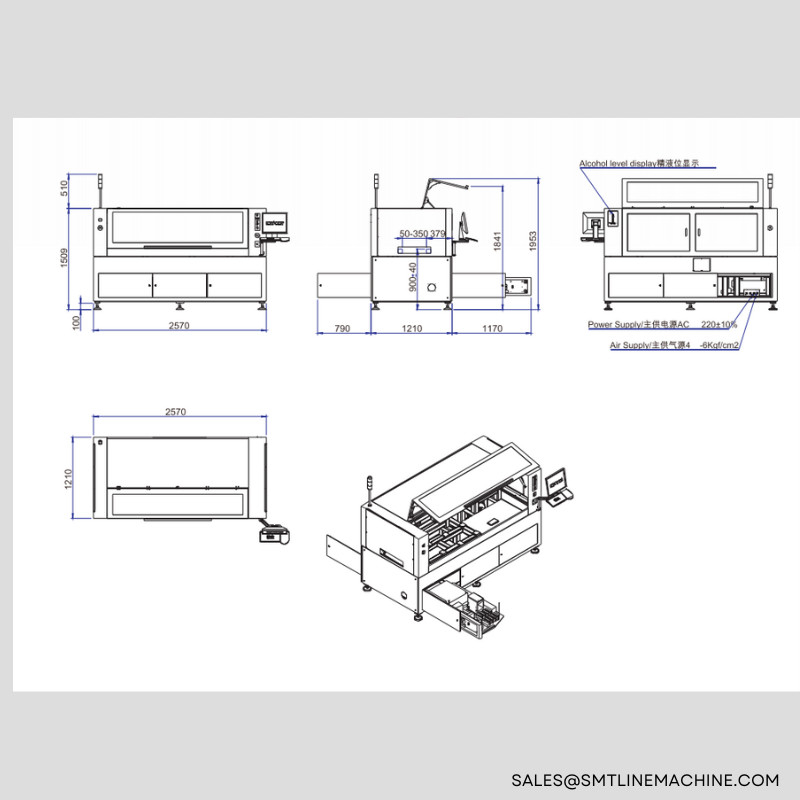

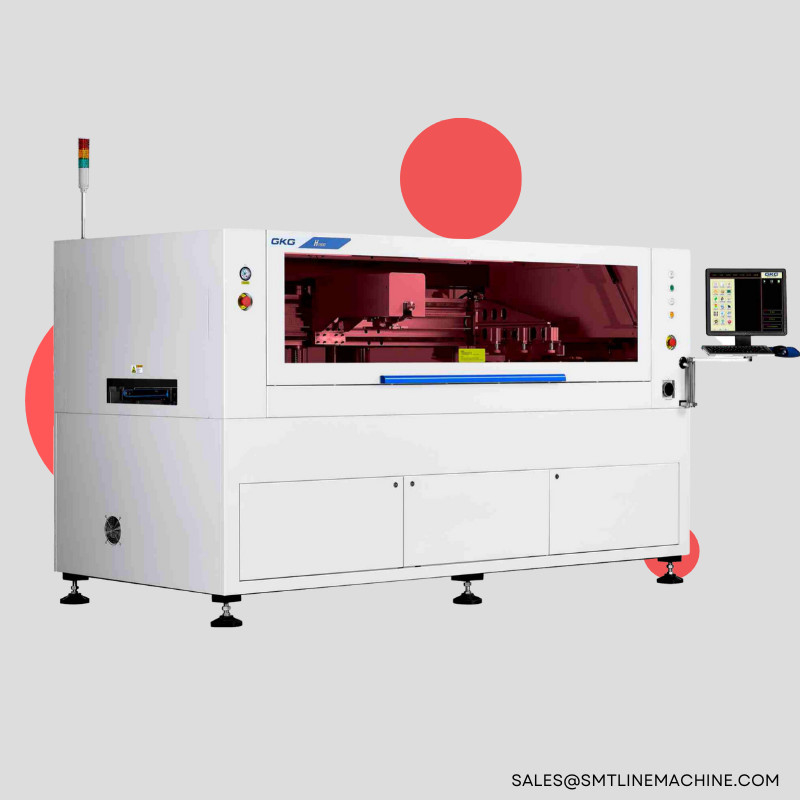

GKG H1500 LED SMT Automatic Printer 0GKG H1500 LED SMT Automatic Printer 1GKG H1500 LED SMT Automatic Printer 2

Applications:

GKG SMT Stencil Printer H1500 is a semi-automatic, high-accuracy printer for stencil printing in the electronics industry. The printer features a maximum board weight of 10KG, board transfer speed of 900+_40, and a mark number of 4. The stencil frame size is 720*300-1800*750mm and the maximum board size is 1500mm*350mm.

This SMT printer is ideal for soldering applications in a variety of industries, including automotive, medical, lighting, aerospace, and more. The high-precision printing ensures accurate and efficient printing every time. It also offers an adjustable printing speed to suit different production requirements. The printer is easy to operate and maintain.

GKG SMT Stencil Printer H1500 is perfect for any size business, providing reliable and accurate performance that will exceed expectations. The printer is robust and durable, and is designed to last for years. With its high-quality construction and cutting-edge technology, it is sure to become an essential part of your production process.



Customization:

GKG H1500 SMT Stencil Printer

Brand Name: GKG
Model Number: H1500
Place of Origin: CHINA
Stay way number: 1
Printing press: 0.5-15kg
MIN BOARD SIZE: 80*50
Transmission direction: L-R,R-L
MAX BOARD SIZE: 1500mm*350mm

GKG H1500 SMT Stencil Printer is an automatic SMT printer with a stay way number of 1 and printing press of 0.5-15kg. It can handle boards from 80x50 to 1500mmx350mm. It also offers two transmission directions, L-R and R-L. GKG H1500 SMT Stencil Printer is perfect for your SMT production line!



Support and Services:

SMT Stencil Printer Technical Support and Service

We provide technical support and service for SMT Stencil Printers to ensure that your product remains up and running. Our technical support and service team consists of experienced and knowledgeable professionals who are committed to providing the best service possible.

Our team is available 24/7 to answer your questions and help you troubleshoot any problems you may be experiencing with your SMT Stencil Printer. We offer online and telephone support, as well as on-site visits when necessary. We have a thorough understanding of SMT Stencil Printers and can guide you through every step of the process to ensure your product is running smoothly.

Our technical support and service team is here to help you get the most out of your SMT Stencil Printer. We are committed to providing quality service and customer satisfaction. Please feel free to contact us with any questions or concerns you may have.



Packing and Shipping:

SMT Stencil Printer packaging and shipping involves proper protection of the product to minimize the chances of damage during transportation. The following steps are followed:

  • The SMT Stencil Printer machine is placed in a cardboard box that is lined with bubble wrap.
  • The box is then sealed with tape.
  • The box is secured with straps to prevent any movement.
  • The box is labeled with the shipping address and contact information.
  • A waybill is attached to the box.
  • The package is then loaded onto the shipping vehicle.


FAQ:

Q1: What is GKG H1500 SMT Stencil Printer?
A1: SMT Stencil Printer is a product produced by GKG, model number H1500, which is made in China. It is used to transfer solder paste to printed circuit boards in the SMT process.
Q2: How does the GKG H1500 SMT Stencil Printer work?
A2: This printer uses a pressurized squeegee blade to move the solder paste across the stencil, which is then transferred to the printed circuit board. The squeegee pressure is adjustable to ensure reliable paste transfer.
Q3: What are the benefits of using the GKG H1500 SMT Stencil Printer?
A3: The GKG H1500 SMT Stencil Printer offers several advantages, including increased accuracy and repeatability, as well as reduced labor costs. It also allows for the printing of fine features, such as BGA pads and QFP contacts.
Q4: What maintenance is required for the GKG H1500 SMT Stencil Printer?
A4: Regular maintenance is required to keep the GKG H1500 SMT Stencil Printer in optimal working condition. This includes cleaning and lubricating the squeegee blade, as well as checking and replacing parts as necessary.
Q5: What kind of warranty does the GKG H1500 SMT Stencil Printer have?
A5: The GKG H1500 SMT Stencil Printer comes with a one-year warranty from the date of purchase. Please contact GKG for more information.
