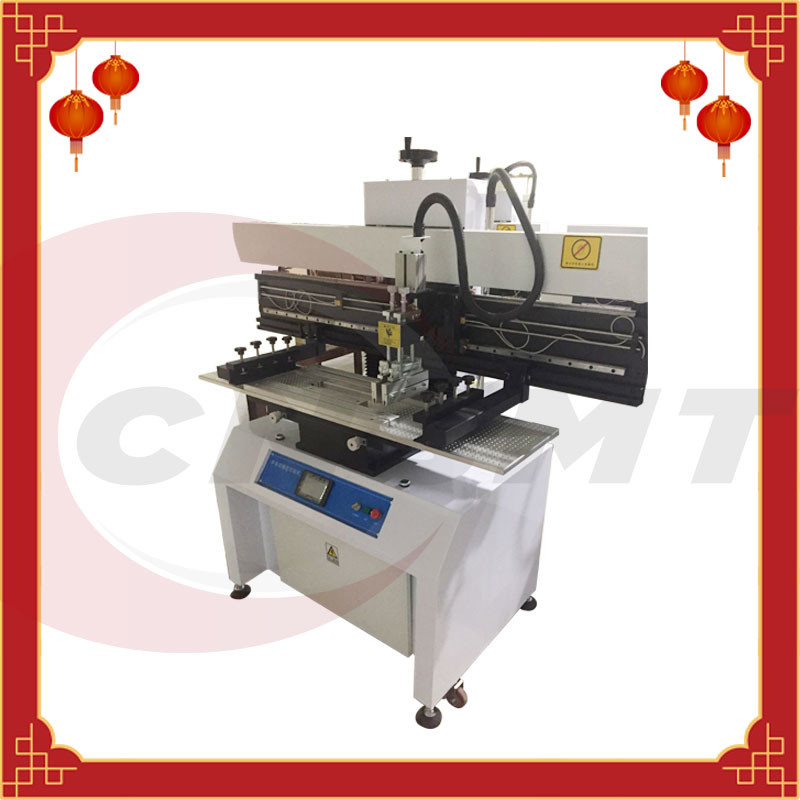

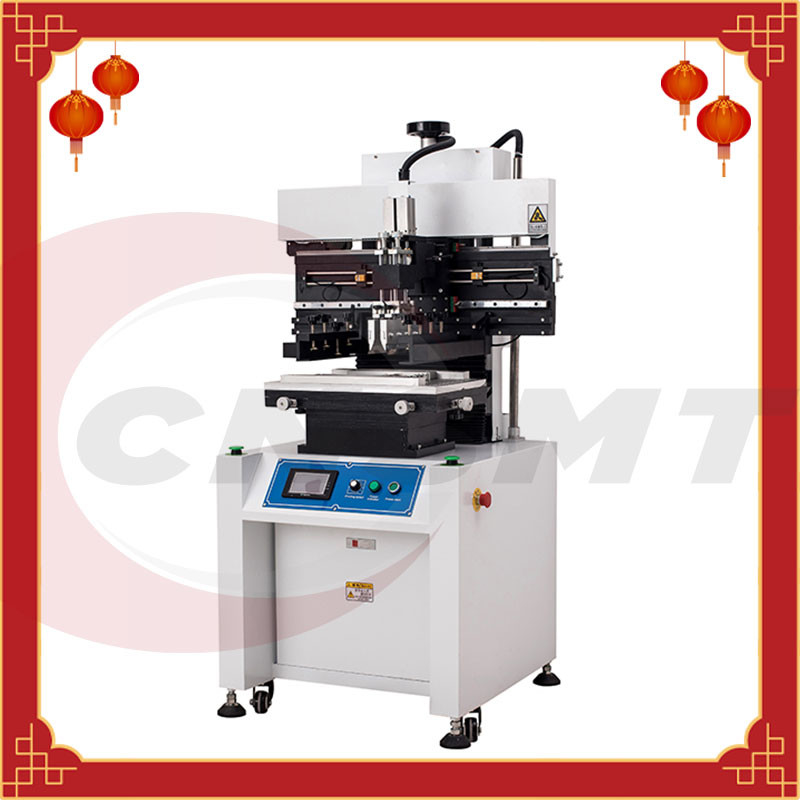

HN350 Semi Automatic SMT Stencil Printer 100W 50hz Right Left

HN350 Semi Automatic SMT Stencil Printer 100W 50hz Right Left

  • High Light

    100w SMT Stencil Printer

    ,

    50hz SMT Stencil Printer

    ,

    100w smt printer

  • Product Name
    HN350 Semi-Automatic Stencil Printer
  • Product Model
    HNF-403
  • Supplier
    CNSMT
  • PCB MAX SIZE
    50-1200mm* (X) X 50-350mm
  • Operating System
    Semi Automatic
  • PCB Thickness
    0.2-2.2mm
  • Print Position
    PCB Outer Or Pin Positioning
  • Precision
    ±0.05mm
  • Air Pressure
    4-6Kgf/Cm2
  • Power
    220V 50/60Hz 100W
  • Machine Size
    900-1500×900×1650mm
  • Weight
    260kg
  • Place of Origin
    China
  • Brand Name
    CNSMT
  • Certification
    CE-SMT Printer
  • Model Number
    HNF-403
  • Minimum Order Quantity
    1
  • Price
    1000
  • Packaging Details
    Standard woodenbox
  • Delivery Time
    1-2days
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union, MoneyGram
  • Supply Ability
    5perday

HN350 Semi Automatic SMT Stencil Printer 100W 50hz Right Left

HN350 Semi Automatic SMT Stencil Printer 100W 50hz Right Left



HN350 Semi-Automatic Stencil Printer Manufacturer - CNSMT



Semi-Automatic Stencil Printer


CNSMT is the leader and most trusted SMT Semi-Automatic Stencil Printer manufacturer in Shenzhen, China. We have a 10-year strong and solid experience in the SMT industry, and we have a steady high satisfaction rating from our customers in the local and international market.



Specification:


Model HNF-403 HNF-513 HNF-653 HNF-656 HNF-1200(LED) HNF-1500(LED)
Frame Size(mm) 470*370~737*737 470*370 ~ 737*737 470*370 ~ 850*750 470*370 ~ 850*850 470*370 ~ 1500*750 470*370 ~ 1800*750
PCB Size(mm) 50*50 ~ 400*340 50*50 ~ 510*340 50*50 ~ 650*340 80*50 ~ 650*610 80*50 ~ 1200*350 80*50 ~ 1500*350
PCB Thickness 0.4~6mm
PCB Warpage 900±20mm
Transport Direction Left-Right; Right-Left; Left-Left; Right-Right
Transport Speed Max 1500mm/s
Power Supply AC:220±10%,50/60HZ,3Kw
Control Method PC Control
Dimension(mm) 1220*1355*1500 1220*1355*1500 1330*1530*1500 1330*1530*1500 2200*1200*1500 2500*1220*1500
Weight Approx: Approx: Approx: Approx: Approx: Approx:
1250kg 1250kg 1300kg 1300kg 1500kg 1800kg

HN350 Semi Automatic SMT Stencil Printer 100W 50hz Right Left 0





Feathers:


★ Adopt guide rail and frequency conversion motor to drive the squeegee base to ensure printing accuracy.
★ The printing squeegee can be rotated up to 45 degrees and fixed, which is convenient for cleaning and replacing the printing screen and the squeegee.
★ The squeegee seat can be adjusted back and forth to select a suitable printing position.
★ The combined printing platen has a fixed groove and PIN, which is convenient for installation and adjustment, and is suitable for printing on single and double panels.
★ The proofreading method adopts steel mesh movement and combines X, Y, Z of printing (PCB). Correction and fine-tuning are convenient and quick.
★ Using PLC and touch screen control, simple, convenient and more suitable for man-machine dialogue. The inverter controls the printing speed.
★ One-way and two-way, multiple printing methods can be set.
★ With automatic counting function, it is convenient for the statistics of production output.
★The angle of the scraper is adjustable, both steel scraper and rubber scraper are suitable.
★The man-machine interface has a screen saver function to protect the life of the man-machine interface.
★Using a unique program design, the printing squeegee seat is easy to adjust.
★The speed of the printing machine can be arbitrarily digitally adjusted and controlled.



What Sets Us Apart From Other Supplier and Manufacturers?




  • We deliver fast – upon confirmation of orders, may it be big or small, we process it at once. We have enough manpower to do the final checking of your product and pack them and get it ready for shipping. Our edge – we have made strong business relationship with our shipping partners, which makes us their priority.
  • We offer the BEST PRICE – since we have partnered with the best manufacturers of the SMT machines worldwide, we were able to bargain with the cheapest wholesale pricing from them, so we can offer our customers the best and most competitive price for the retail orders.
  • One stop shop – we are a one stop shop supplier where you can get not just one of the SMT machines that you need, but all. If you cannot see the actual machine that you are looking for from the list we have in our website, get in touch with us, and we’ll find it for you.



These are the top 3 reasons why you should trust CNSMT.


Here at CNSMT, one of the most in demand SMT machines is the stencil printer. Stencil printing is a crucial and vital process in an SMT assembly. If you want to ensure proper and better outputs, you have to invest on quality and dependable stencil printers.



We offer all kinds of stencil printers including the Semi-Automatic Stencil Printer.



What is a Semi- Automatic Stencil Printer?




A Semi-Automatic Stencil Printer is what most SMT factories use when it comes to solder paste printing on PCBs. While some factories would opt to get the fully automatic type, many are still going for the semi automatic type for it can perform some things that cannot be performed by the automatic stencil printers.



What are those?

  • You can manually control the speed of the printing process.
  • You can control the pressure of your squeegee.
  • You can control the angle of your squeegee.
  • You can control the position of your PCB.



These are the things a Semi-Automatic Stencil Printer can do versus the fully automatic type. However, both can serve an SMT assembly properly, for it is made to work on higher volumes compared to the manual type.



When it comes to the features of a Semi-Automatic Stencil Printer, it will vary depending on the model. Some have standard printing area capability, while some can print on larger PCBs. The standard cycle speed of most Semi-Automatic Stencil Printers is about 14 seconds per board. This is considered fast, and it is definitely perfect for mass volumes.



To know more about the Semi-Automatic Stencil Printers that we carry and how to order it, please read the details below.



Frequently Asked Questions:




Question: I am not very sure whether to get a fully automatic or semi-automatic stencil printer. Which one is best for me?



Answer: If you are running an SMT assembly and you have a large requirement of output in a day to day basis, getting a semi or fully automatic stencil printer will serve you well. However, there are certain limitations that an automatic stencil printer can do, which might be required in your assembly, thus you have to get the Semi-Automatic Stencil Printer.



An example to this is – you can actually manually change the position of your PCB, which you cannot do in an automatic stencil printer. Kindly contact us directly so that we can assist you further with this concern.



Question: Is it cheaper to get the semi-automatic stencil printer compared to the automatic stencil printer?



Answer: Yes. The price of a Semi-Automatic Stencil Printer is cheaper compared to an automatic type. But you must also consider some factors like the requirement of your SMT assembly. You can speak with us directly so that we can help you choose based on your SMT requirements. From there, you can make an educated buying decision.



Question: How fast can you process my orders?



Answer: If you are 100% sure on the exact machine and model that you want to purchase, we will just need 1-2 days to create your order confirmation to be sent to your company’s email.



Once we receive your payment, we will do the final check on your orders and send it to you at once. Shipping can take 3-10 working days, depending on your exact shipping address.



Questions: I want to make sure that my orders will have warranty.



Answer: Yes. All of our Semi-Automatic Stencil Printer come with a warranty for your peace of mind. In fact, the details of your warranty will be stated in the order confirmation email that we will be sending you. You may review that prior to sending your payment. Orders are only counted once payment is received.

Question: Do you have used semi-automatic stencil machines for sale too?



Answer: Yes, we do. Send us an email so that we know where to send the details of our stocks for the Semi-Automatic Stencil Printer.



Question: Do you have a minimum order quantity for the Semi-Automatic Stencil Printer ?



Answer: NO. We do not impose a minimum order quantity to all of the machines and equipment that we are selling. However, it might be wise to check our other products for you to maximize the shipping cost.



How can i buy machine from you ?


(1)Consult us on line or by e-mail



(2)Negotiate and confirm the final price , shipping , payment method and other terms



(3)Send you the perfroma invoice and confirm your order



(4)Make the payment according to the method put on proforma nvoice



(5)We prepare your order in terms of the proforma invoice after confirming your full payment . And 100% quality check before shipping



(6)Send your order via express or by air or by sea .



Packing & Delivery




HN350 Semi Automatic SMT Stencil Printer 100W 50hz Right Left 1

Main Sea Ports in China

China has so many sea ports in China and they include:

  • Port of Shanghai
  • Port of Tianjin
  • Port of Guangzhou
  • Port of Qingdao
  • Port of Shenzhen
  • Port of Ningbo
  • Port of Dalian
  • Port of Xiamen
  • Port of Lianyungang
  • Port of Yingkou
  • Port of Qingdao
  • Fang Chenggang, and many others.

HN350 Semi Automatic SMT Stencil Printer 100W 50hz Right Left 2

Certification



HN350 Semi Automatic SMT Stencil Printer 100W 50hz Right Left 3

Company Information


CNSMT is the leading manufacturer and supplieir for SMT machines and Solution with over 10 years' experience in China. And we can also do OEM&ODM for SMT traders, we have vast of sources in SMT field,even you need used or new SMT equipments or other parts, we can help you get the best quality and competitive cost machines.

What we can do for you:



※ We have our own factory make SMT equipments and devices
※ We have a professional technich engineer team for produce machines

※ We can customize variety of SMT machines for you according your requirements

We buy and sell used and new SMT equipments all over the world

※ We provide you SMT full line machines and export to worldwide
※ Becoming the most reliable Chinese partner for you.



FAQ:


1. Are you factory?



Yes, we are factory supplier focus SMT machines and devices for 14 years.



2. Can you email the catalog?



Yes, we can send you by email with whole catalog.



3. How to order online?



Confirm product (quantity, price, payment, shipping etc)---waiting for email ---confirm order---make initial payment---production finish---make balance payment---shipping
* click to learn about trade assurance


4. What about the payment way?


100%T/T advance or 30% deposit, balance paid before delivery -- amount > USD5,000
100% deposit -- amount < USD5,000




5. What's the shipping way and timing?



We will ship the machine by DHL,Fedex, UPS,etc (Door to Door Service), around 5 days to arrive.

Or by Air to your airport (Door to Airport Service ), around 3 days to arrive.

Or by Sea to the seaport, Minium CBM requirement : 1 CBM, around 30days to arrive.



6. What's the warranty item?



1 year warranty free for spare parts, Whole life technicial support.

We have professional after sales team, if any question, assistant videos are also provided in after-sale service.


7. Can I visit your factory?



Yes sure, welcome to visit our factory to get more profit.


8. How to contact with your factory?


Send inquiry in below form or send mail or call to select your way. Click here



9. Can you customize the product?


Yes, we can customize any products according to customer's requirements.

10. Which payment terms are you doing?


PayPal, West Union, T/T, (100% payment in advance.)

11. Which shipment is available?


By sea, by air ,by express or as your requirement.

12. Which country you have been exported?


We have been exported to many countries, all most all around the world, like Malaysia, Vietnam, Thailand, United States, France, Spain, Mexico, Dubai, Japan, Korea, Germany, Porland Etc.



13. How about the package ? Is it safe during the delivery ?



All machine is packed Safely, by standard strong wooden carton with foam inside.





14, This machine is easy to use ? if I have no experience, I can also operate it well ?



        Do you provide the user manual and operating videos to support us ?



Yes, our machine is designed to use easily, Normally it will take you 2-3 hours to learn how to operate, if you are a technician, it will much faster to learn.We will provide the English user manual for free , and the operation video is available.





15, If we come to your factory, you will provide the free training ?



Yes, warmly welcome you to visit our factory, we will arrange the free training for you.





16. What is the payment way ? electronic reflow oven



We accept the payment terms: Bank transfer, WesterUnion, Moneygram, Paypal, etc.



These are the information that you need when it comes to the Semi-Automatic Stencil Printer. If you cannot find the information that you are looking for, please call or email us directly so that we can give you the answer to your question.



Here at CNSMT, you are definitely in good hands when it comes to all of your SMT needs. We will make sure to find the solutions to all of your needs.
