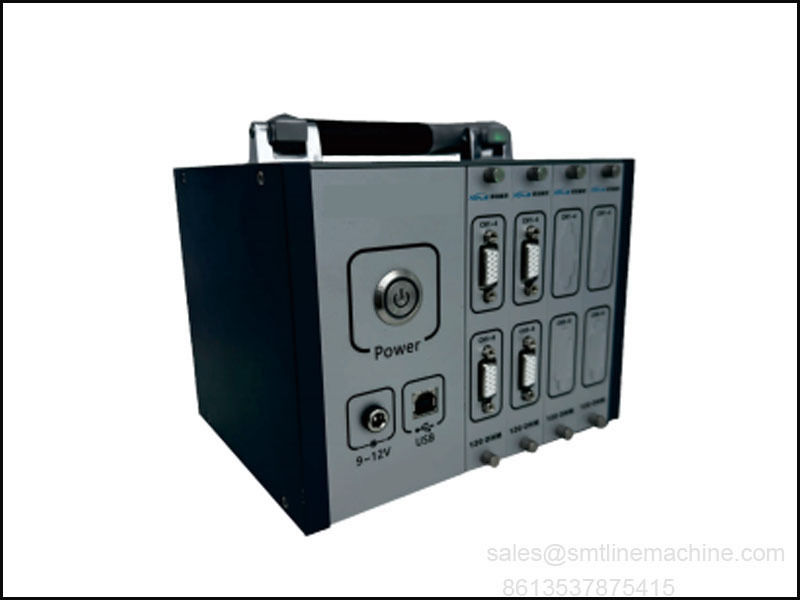

CN-YL8C Portable Stress Tester

CN-YL8C Portable Stress Tester

CNYL8C is a compact and portable stress testing device designed for various stress measurement scenarios in electronics manufacturing. It is widely used for PCB depaneling stress testing, ICT (InCircuit Test) stress, FCT (Functional Test) stress, assembly stress, and drop stress testing, among others.

Main Applications

PCB Depaneling Stress Testing: Detects mechanical stress during the depaneling process to prevent cracking of components or solder joints.
ICT Stress Testing: Measures stress during incircuit testing to avoid board damage caused by test probes.
FCT Stress Testing: Ensures that clamping pressure during functional testing does not exceed safe stress levels.
Assembly Process Stress Testing: Evaluates stress during screw fastening, component pressfitting, and other assembly operations.
Drop Impact Stress Testing: Simulates stress caused by product drops during transportation or usage.

Software Features

UserFriendly Interface: Easy to learn and operate, ideal for production staff.

Product Advantages

Portable Design: Lightweight and compact, suitable for use on production lines, QC stations, or in labs.
MultiChannel Support: Connects multiple strain gauges for efficient, simultaneous testing.
Industrial Reliability: Designed for longterm use in demanding industrial environments.
High Sensitivity Sensors: Accurately captures microdeformations for precise analysis.

CN-YL8C Portable Stress Tester  feathers

CNYL8C Portable Stress Tester
Here is the English version of your technical description for the CNYL8C Portable Stress Tester, incorporating the modular design and performance details:

Technical Features of CNYL8C Portable Stress Tester

Modular Design:
Each strain gauge module comes with either 8 or 4 acquisition channels (depending on the module type). The system is nonexpandable, ensuring stable and reliable performance.

USB Connectivity & Data Logging:
Connects to a host computer via USB and supports longterm data storage directly on the PC’s hard drive, ideal for continuous monitoring and analysis.

Strain Gauge Compatibility:
Supports both 120Ω and 350Ω strain gauges, depending on the type of module in use.

High Sampling Rate:
Achieves a maximum sampling rate of 10kHz, even when all 8 or 4 channels are sampling simultaneously, ensuring accurate and highspeed data acquisition.

UserFriendly Interface:
The operation menu is displayed in a dialog box format with a Chinese interface. Designed for simplicity and efficiency, users can get started quickly without complex setup.

International Standards Compliance:
Fully aligned with Intel strain gauge testing standards and IPC9704 stress measurement standards, ensuring global benchmarking in reliability testing.

OneClick Reporting:
Automatically generates detailed test reports with just one click, including “Pass” or “Failed” judgment based on stress test thresholds — ideal for fast and efficient quality control.

CN-YL8C Portable Stress Tester Specification

FAQ GUIDE – CNYL8C Portable Stress Tester

1. What is the CNYL8C used for?

The CNYL8C is a portable stress tester designed to measure mechanical stress in PCB boards and electronic assemblies. It is commonly used for:

PCB depaneling stress testing
ICT/FCT fixture stress analysis
Assembly process stress monitoring
Drop/impact simulation testing

2. How many channels does the device support?

Each module provides either 8 or 4 analog input channels. The system is designed with a nonexpandable modular structure for stability and precision.

3. What is the maximum sampling rate?

The device supports a maximum sampling rate of 80KS/s per chassis, with multichannel simultaneous sampling capability.

4. What types of strain gauges are supported?

CNYL8C supports 120Ω strain gauges and is compatible with 1/4 Wheatstone bridge configurations, making it suitable for a wide range of industrial applications.

5. What is the resolution and accuracy?

24bit ADC resolution
Conversion accuracy: 3.5062 nV/V/LSB
Gain error: 0.02% (under 25°C ±5°C calibrated conditions)
Full range: +29.4 mV/V (+62500µε / 55500µε)

6. Can the system generate reports automatically?

Yes, it supports oneclick automatic report generation, including Pass/Fail judgment based on Intel strain gauge standards and IPC9704. This feature significantly improves testing efficiency and consistency.

7. How is data stored and transferred?

The CNYL8C connects to a host computer via USB 2.0 and supports longterm data storage directly to the computer's hard drive.

8. What power supply does it require?

It operates with 11–30VDC or 220VAC, suitable for flexible usage in production environments.

9. What is the protection level of the system?

It features IP40 protection, designed for indoor use in labs, QA departments, or automated production lines.

10. Is the software easy to use?

Yes. The software is dialogbased with a Chinese interface, designed for quick learning, easy operation, and minimal setup time.

11. Is the CNYL8C in stock and available for immediate order?

Yes, we have ready stock available for fast dispatch.
Quick delivery is guaranteed for domestic and international orders.
We export to multiple countries worldwide, with experience in global logistics.
We offer comprehensive aftersales support, including technical assistance, training, and warranty service.

KEYWORDS:

CNYL8C portable stress tester
PCB stress tester
circuit board stress test device
portable PCB strain gauge tester
stress measurement instrument for PCB
electronic assembly stress tester
strain gauge test equipment
PCB depaneling stress analyzer
ICT/FCT stress test equipment
drop stress test system

portable stress tester for PCB depaneling
how to measure PCB board mechanical stress
strain gauge tester for ICT and FCT fixtures
USB strain measurement device for electronics
stress testing equipment for SMT assembly
compact stress analyzer for circuit boards
stress testing tool compliant with IPC9704
Intel standard PCB strain test machine
multichannel PCB stress measurement solution
24bit ADC strain test instrument

PCB stress tester supplier China
export strain measurement device
highprecision portable strain tester manufacturer
OEM stress testing equipment for electronics
industrial PCB mechanical stress test tool

multichannel stress tester 8/4 channels
USBbased strain gauge tester
10kHz sampling PCB strain test device
automatic report generation stress tester
strain tester with overvoltage protection
IP40 portable test equipment
