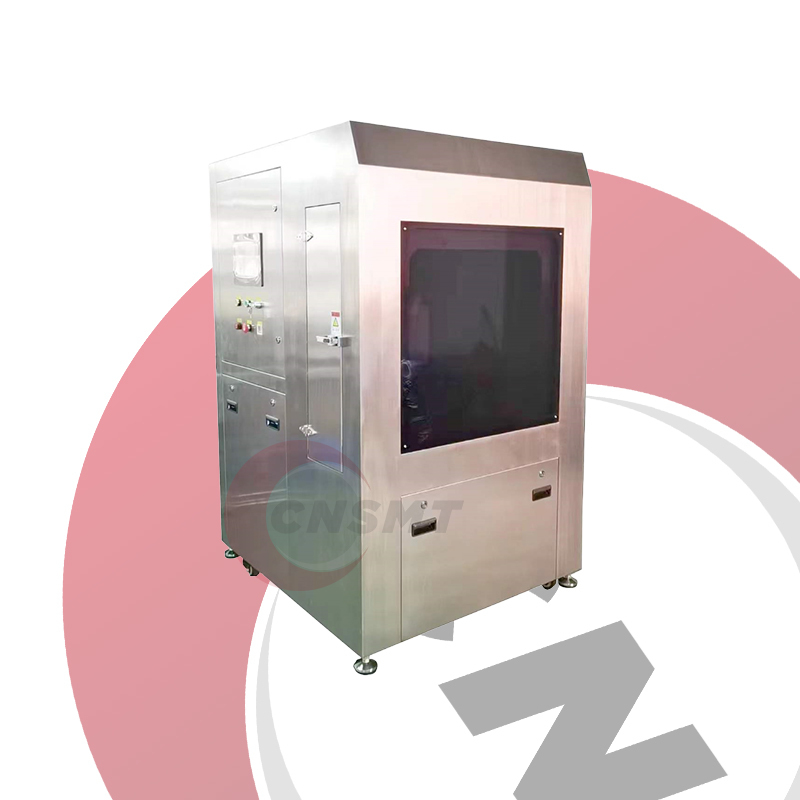

JEH-300C Offline PCB Aqueous Cleaning Machine

JEH-300C Offline PCB Aqueous Cleaning Machine

JEH-300C Offline PCB Aqueous Cleaning Machine

I.Machine Overview & Features

1. Product Features

The JEH-300C Offline PCBA Aqueous Cleaning Machine is a cost-effective batch cleaning system that removes various residues from electronics and stencil masks, including but not limited to: water-soluble residues, RMA (Rosin Mildly Activated), no-clean lead-free fluxes, plating salts, fingerprints, dust, and loose solder balls. Designed with U.S. TDC’s offline medium-pressure/high-flow cleaning concept, it features high efficiency, low cost, and user-friendly nozzle/piping maintenance.

Tailored for small-to-medium capacity PCBA flux cleaning, the JEH-300C completes washing, rinsing, and drying in a single chamber. It enhances cleaning quality for multi-variant PCBA cleaning. Chamber and tank capacities can be scaled per customer requirements, reducing chemical consumption. Advantages include competitive pricing, superior performance, excellent cleaning results, and high cost-performance ratio, making it a leading domestic offline cleaner contender. Constructed with corrosion-resistant stainless steel. PLC + touchscreen HMI ensures intuitive operation.

II.Product Highlights

• PLC + touchscreen user-friendly HMI platform
• Maintenance-optimized structure: Reserved access points for fans, filters, etc.
• Comprehensive cleaning system: Thoroughly removes organic/inorganic surface residues
• Fully automated process: Washing, rinsing, drying completed in one compact chamber
• Full-process visibility: Viewing window with LED lighting for real-time monitoring
• Large cleaning capacity: 1000mm(L)800mm(W)40mm(H) single-layer design accommodates larger products and higher throughput
• Optimized nozzle design: Gradually increasing left/right distribution enhances efficiency; Staggered upper/lower distribution eliminates blind spots
• Adjustable nozzle pressure: Prevents collision/splash risks for small products under high-pressure spray
• Standard dilution tank heating system: Boosts efficiency and reduces cycle time
• Large touchscreen interface: Reliable color touchscreen enables customized process parameters
• High cleanliness standards: Ionic contamination complies with IPC-610D Class III (<1.56μg/cm²) and MIL-28809 Class I
• Flexible chemical mixing: Manual addition or automatic DI water/chemical ratio blending (5%-25%)

III. Cleaning Process Flow

The JEH-300C integrated offline PCBA cleaner comprises three process stages: Chemical Cleaning Stage, Pure Water Rinsing Stage, and High-Velocity Hot Air Drying Stage.

Loading

• Single-layer material rack (supports layered loading)
• Push-pull feed rack
• Snap-buckle doors/windows (easy opening/closing)

Solvent Cleaning Process

• Chemical Replenishment: DI water pumped into tank + proportional chemical cleaning agent added
• Drainage: Post-cleaning solution discharged
• Operation: Mixed DI water/solvent pumped into cleaning tank at set temperature

Solvent Rinsing Process

• Replenishment: Water pumped from external tank to chamber
• Operation: Water pumped into cleaning pipes at set temperature
• Drainage: Solution discharged via auxiliary pump

Pure Water Rinsing Process

• Replenishment: Water pumped from external tank to chamber
• Operation: Water pumped into cleaning pipes at set temperature
• Drainage: Solution discharged via auxiliary pump

Drying Process

• Operation: Filtered dry air forcibly blown into chamber
• Air knife configuration: Ensures uniform drying
• Drying temperature: Ambient to 99°C

IV.Frequently Asked Questions (FAQ)

Q1: What types of PCBA is the JEH-300C suitable for cleaning?

A:
The JEH-300C is designed for small-to-medium batch, high-reliability PCBA cleaning, including:

• Removal of rosin/flux residues after SMT/DIP soldering

• Solder paste residues, dust, and oils from assembly processes

• High-reliability applications (automotive, medical, aerospace electronics)

• R&D prototyping, rework boards, and flexible small-batch production

Q2: What are the advantages of aqueous cleaning vs. traditional solvent cleaning?

A:
Aqueous cleaning offers superior environmental, safety, and sustainability benefits:

• ✅ Eco-friendly: Low-VOC aqueous agents comply with RoHS/REACH regulations

• ✅ Safety: Non-flammable, reduces workshop hazards

• ✅ Compatibility: Gentle on most components, ideal for complex assemblies

• ✅ Cost efficiency: Lower consumable costs and simpler wastewater treatment

Q3: Can the JEH-300C clean PCBAs with underfill or sensitive components?

A:
Yes, with optimized protocols:

• Adjustable spray pressure (0.5–2 bar) and temperature (RT–60°C) minimize stress

• Submit samples for compatibility validation prior to full-scale cleaning

• Avoid boards with unsealed electrolytic capacitors, mechanical connectors, or paper labels

Q4: How does the system ensure complete drying without water spots?

A:
Three-stage drying technology:

1. Powerful rinsing: Deionized water removes residual contaminants

2. Precision hot-air drying: Adjustable 40–80°C airflow penetrates component gaps

3. Uniform evaporation: Chamber airflow design eliminates moisture traps
   Post-drying surface resistance >10¹⁰ Ω meets IPC cleanliness standards.

Q5: How is process consistency guaranteed?

A:

• Full automation: PLC/touchscreen controls with preset cleaning/drying recipes

• One-touch operation: Minimizes human error

• Real-time monitoring: Temperature, pressure, and fluid parameters tracked; automatic fault alarms
