Pcb high-end loader

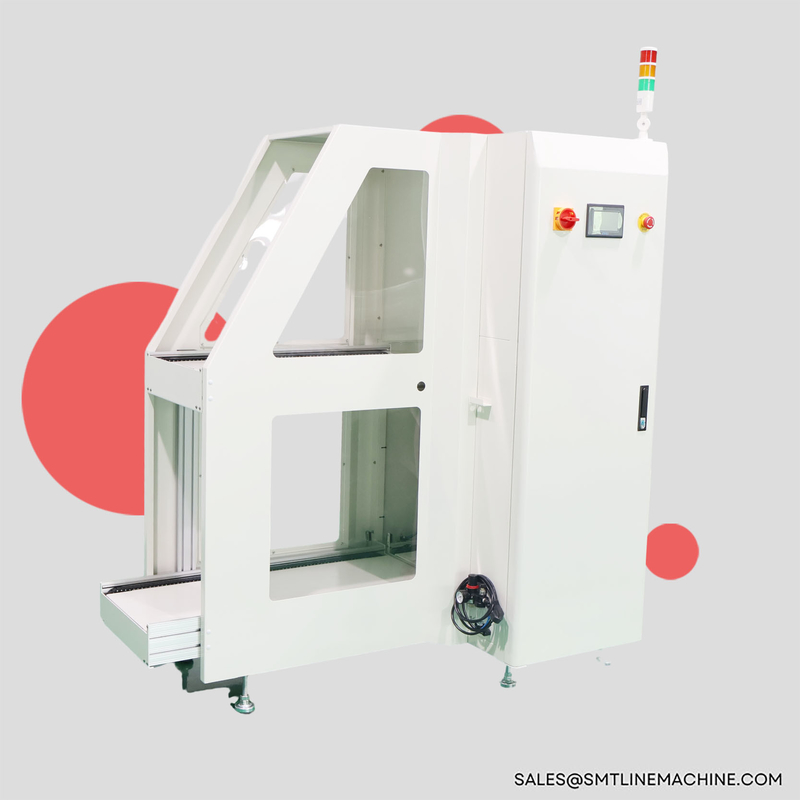

Pcb high-end loader

  • Weight
    220Kg
  • Components Type
    SMD, DIP, BGA, QFP, Etc.
  • Dimension
    1350x710x1200 1770x800x1200 1840x860x1200 1840x930x1200
  • Production Capacity
    1000pcs/hour
  • Product Model
    PCB Automatic Loader
  • Air Consumption
    0.3m3/min
  • Mounting Accuracy
    ±0.02mm
  • Product Name
    PCB Automatic Loader
  • Place of Origin
    China
  • Brand Name
    SMT Automatic PCB Loader Machine
  • Certification
    opp
  • Model Number
    Pcb high-end loader
  • Minimum Order Quantity
    1
  • Price
    13
  • Packaging Details
    wooden box
  • Delivery Time
    10
  • Supply Ability
    daily

Pcb high-end loader

Product Description:

SMT Line Equipment

Our SMT Line Equipment is designed to meet the highest standards of quality and efficiency, offering a great solution for loading and unloading printed circuit boards (PCBs). It has components height from 0.2mm to 5mm, weight of 220Kg, power supply of 220V/50Hz and supports components type like SMD, DIP, BGA, QFP, etc. It also provides a range of PCB thickness from 0.5mm to 4mm. It is also equipped with SMT PCB Loader Unloader, making it ideal for loading and unloading PCBs quickly and efficiently. Moreover, the L-shape PCB magazine loader/magazine PCB loader for sale can further optimize the loading and unloading process. All these features make this SMT Line Equipment perfect for manufacturing industry.

Model Specification of SMT PCB Magazine Loader:
Model YS-LD250 YS-LD330 YS-LD390 YS-LD460
Min board size (L*W)mm 80×50 80×50 80×50 80×50
Max board size (L*W)mm 350×250 455×330 530×390 530×460
Magazine size (L*W*H)mm 355×320×565 460×400×565 535×460×565 535×530×565
Dimensions (L*W*H)mm 1270×820×1750 1475×1030×1750 1650×1160×1750 1650×1160×1750

Features:

  • Product Name: SMT Line Equipment
  • Conveyor Height:900 ± 20 mm
  • Product Type: Assembly Line
  • Total Power: 2.5KW
  • Components Height: 0.2mm-5mm
  • Dimension: 1350x710x1200 1770x800x1200 1840x860x1200 1840x930x1200
  • Features: L shape PCB loader, L shape PCB magazine loader/magazine PCB loader, L shape PCB magazine loader/magazine PCB loaderPcb high-end loader 0



Technical Parameters:

Parameter Value
Weight 220Kg
Production Capacity 1000pcs/hour
Air Consumption 0.3m3/min
Air Pressure 0.5-0.8MPa
Mounting Accuracy ±0.02mm
Components Height 0.2mm-5mm
PCB Size 355×320×565 460×400×565 535×460×570 535×530×570
Power Supply 220V/50Hz
Dimension 1350x710x1200 1770x800x1200 1840x860x1200 1840x930x1200
Components Type SMD, DIP, BGA, QFP, Etc.
L shape PCB magazine loader/magazine PCB loader Yes
PCB loader/unloader Yes
PCB loader/unloader for sale Yes


Applications:

SMT Line Equipment: L Shape PCB Magazine Loader/Magazine PCB Loader

The SMT Line Equipment – L Shape PCB Magazine Loader/Magazine PCB Loader is ideal for a variety of industries, such as electronics, automotive, medical, and more. This product is a reliable, efficient, and easy to use L shape PCB loader. It is designed to help reduce production time, increase production accuracy, and provide a safe working environment.
This product is manufactured under strict quality control measures and is certified by OPP. It has a minimum order quantity of two. It comes in a wooden box, and delivery time is 10 days. The daily supply ability is guaranteed.

Features
  • Brand Name: SMT Automatic PCB Loader Machine
  • Model Number: L Shape PCB Loader
  • Place of Origin: China
  • Certification: OPP
  • Price: 13
  • Packaging Details: Wooden Box
  • Delivery Time: 10
  • Supply Ability: Daily
  • Product Name: PCB Automatic Loader
  • Mounting Accuracy: ±0.02mm
  • Weight: 220Kg
  • Air Pressure: 0.5-0.8MPa
  • Conveyor Direction:Left to Right
  • PCB Thickness: 0.5mm-4mm
  • PCB Size: 50 mm - 250 x 330 mm

The SMT Line Equipment – L Shape PCB Magazine Loader/Magazine PCB Loader is the perfect choice for a variety of industries that need reliable and efficient automatic PCB loading. It is designed for smooth and precise loading and unloading of PCBs with a mounting accuracy of ±0.02mm. It has a weight of 220Kg and air pressure of 0.5-0.8MPa. It can handle PCBs with thicknesses ranging from 0.5mm to 4mm.

 Pcb high-end loader 1Customization:

SMT Automatic PCB Loader Machine is a type of Save space SMT handling equipment L shape magazine unloader. It is available in brand name SMT Automatic PCB Loader Machine with model number l shape PCB loader. It is certified with opp and has a minimum order quantity of 2. It is available at a price of 13 and comes in a wooden box packaging. The delivery time is 10 and the supply is daily. The components height range is from 0.2mm-5mm and the mounting accuracy is ±0.02mm. It is available as an Assembly Line and has a production capacity of 1000pcs/hour. The PCB size available is 355×320×565 460×400×565 535×460×570 535×530×570. The L shape PCB loader from SMT Automatic PCB Loader Machine is a perfect solution for your PCB handling needs.



Support and Services:

SMT Line Equipment Technical Support and Service

We provide technical support and service for SMT line equipment which helps you to maximize the performance and efficiency of your production line.

  • Installation and commissioning services are provided to ensure that your equipment is quickly installed and running smoothly.
  • We provide preventive maintenance services which help to detect potential problems and minimize downtime.
  • We offer on-site repair and troubleshooting services to quickly solve any problems that may arise.
  • We provide training services to ensure that your personnel is well-trained in the operation and maintenance of the equipment.
  • We provide spare parts and consumables to ensure that you have the necessary components to keep your line running.
  • We offer upgrades and retrofitting services to keep your equipment up to date with the latest technology.

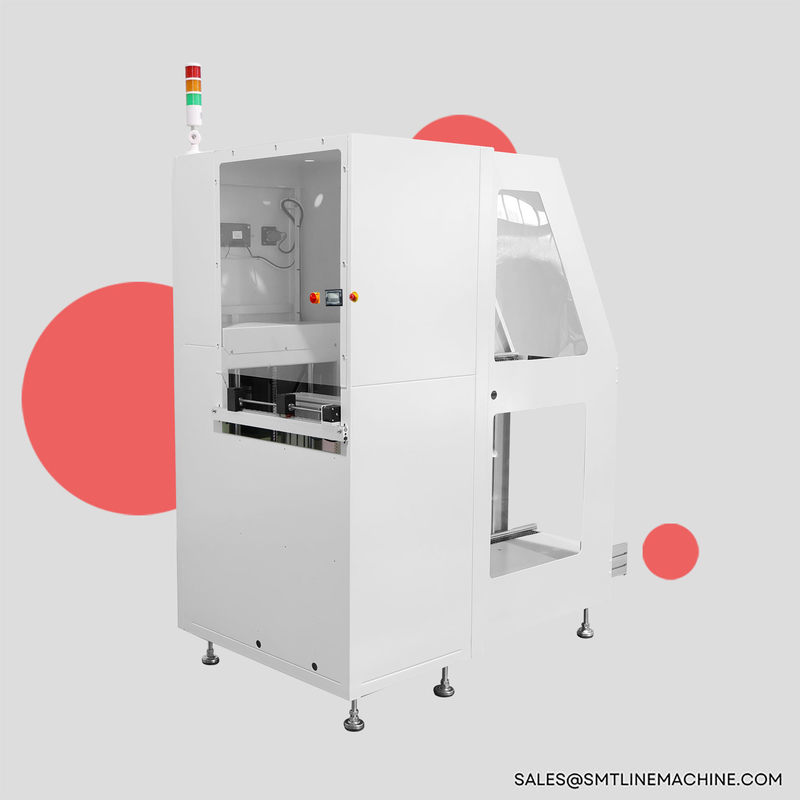

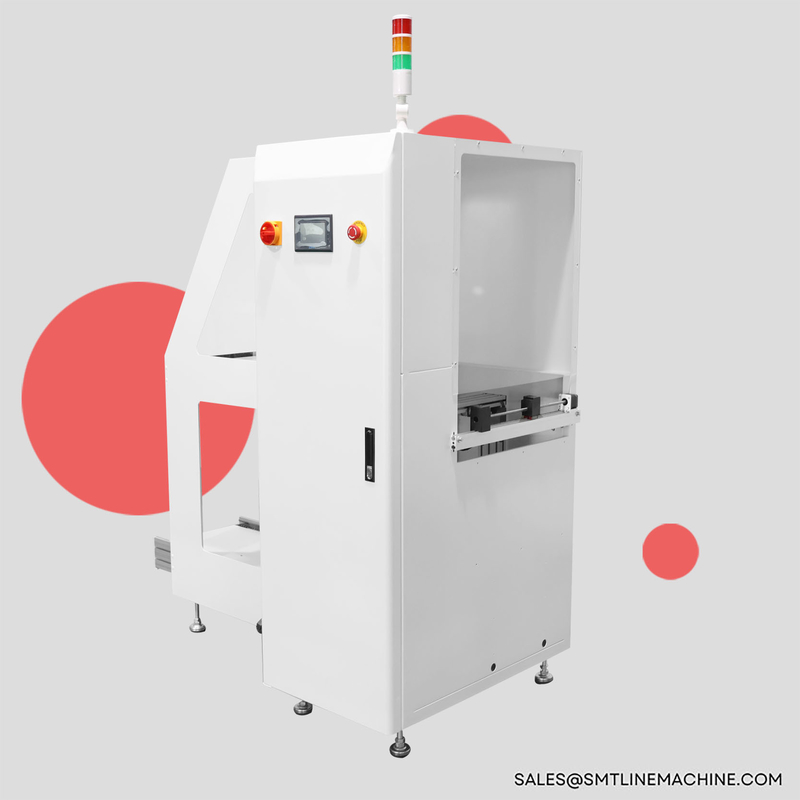

 Pcb high-end loader 2Pcb high-end loader 3

The primary functions of a PCB loader machine include:
Feeding: The machine feeds PCBs from a stack or magazine onto a conveyor belt or platform, positioning them for further processing.
Alignment: Some loader machines can align the PCBs to ensure they are properly oriented before they enter the assembly line.
Timing: The machine controls the timing of PCB delivery to match the pace of the assembly line, ensuring a smooth and efficient process.
High Throughput: PCB loader machines are designed for high throughput, helping manufacturers increase the speed and efficiency of their production lines.
Operator Assistance: These machines reduce the need for manual handling of PCBs, which can be time-consuming and may lead to errors.
Pcb high-end loader 4



Throughput: High-end loaders are designed to handle a high volume of PCBs per hour, ensuring efficient production.

PCB Size Compatibility: These loaders should support various PCB sizes and types to accommodate the specific requirements of your production line.

Loading Mechanism: High-end loaders may use different mechanisms for loading PCBs, such as conveyor systems, robotic arms, or other advanced mechanisms. The choice depends on the application and the desired level of automation.

Software Control: Integration with manufacturing software and the ability to program and control the loader's operation is essential for customization and flexibility.

Vision Systems: Many high-end loaders incorporate vision systems for precise alignment and inspection of the loaded PCBs.

Magazine Capacity: The loader should have an adequate magazine or feeder capacity to minimize downtime for reloading materials.

Component Handling: Depending on your assembly requirements, the loader may need to handle various components, such as SMT (Surface Mount Technology) components, through additional feeders and mechanisms.

PCB Edge Support: Ensure that the loader can handle PCBs with various edge designs, including those with irregular shapes or cutouts.

Changeover Time: Quick changeover between different PCB types or sizes is a valuable feature for optimizing production efficiency.

Traceability: High-end loaders may offer traceability features to track the movement and loading of each PCB in the production process.

Maintenance and Reliability: These loaders should be built to withstand the demands of high-volume production and have a low risk of breakdowns.

Safety Features: Safety mechanisms and interlocks are important to protect both operators and the equipment.

Pcb high-end loader 5

Packing and Shipping:

Packaging and Shipping for SMT Line Equipment

All incoming and outgoing SMT Line Equipment is carefully packaged to ensure safe delivery. All packages are inspected for damage before being shipped.

Packaging

All SMT Line Equipment is wrapped in a protective bubble wrap and securely taped. The package is then placed in an appropriate sized cardboard box and filled with foam chips. All packages are clearly labeled with the address and contact information of both the sender and the receiver.

Shipping

All SMT Line Equipment is shipped via a reputable carrier such as FedEx, UPS, or DHL. The package is tracked and insured to ensure safe delivery. The customer is provided with a tracking number, which can be used to monitor the progress of the shipment.
