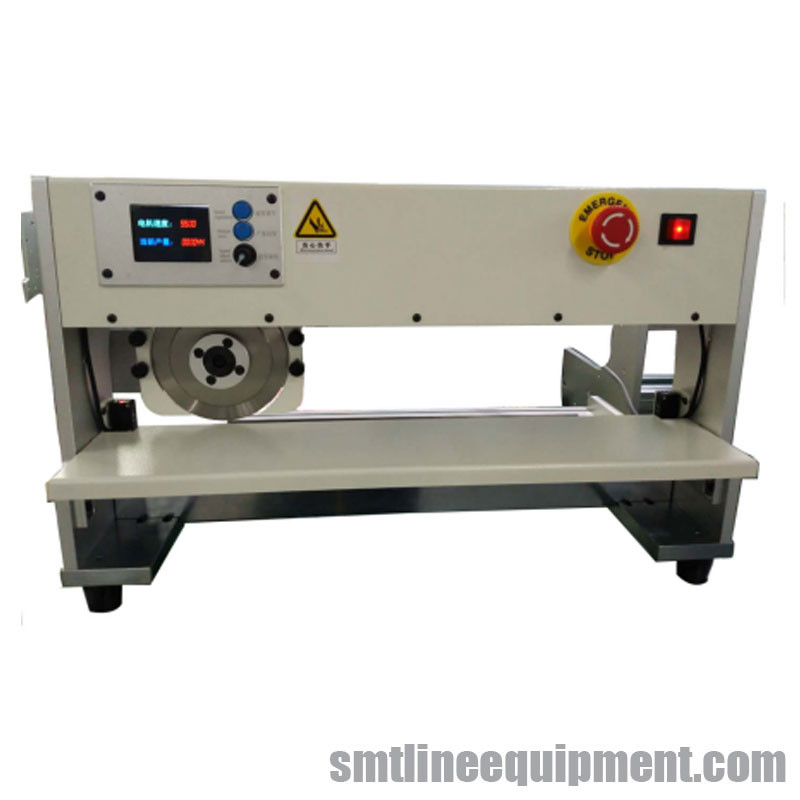

Desktop PCB Cutting Machine Economy PCB Laser Cutter Stepping Motor Driven

DESKTOP PCB CUTTING MACHINE, Economy PCB cutter



This is a automatic desktop pcb cutting machine , it was widely used for smt factories, we have exported to many contries before, with good quality and stable life.We are the manufactuer of variaty of pcb cutting machine with high quanlity pcb cutter blades, so you no need worry about it will broken while cutting your pcb board.



CNSMT is specialized in designing, producing and selling the following series of products:

PCB CUTTER, FPC CUTTER, FPC hot press, pulse hot press, pulse welding machine, aluminum substrate CUTTER machine, laser CUTTER,

FPC shearing punch, light strip splitter, LED PCB CUTTING machine, aluminum substrate cutting machine, V-groove cutter, cable pulse welding machine, constant temperature machine, retractable PCB trigger, PCB, FPC mold, hot pressing Welding machine, SMT PCB cutting  machine,





Product Description



1. The knife-type cutter is an electric PCB board and aluminum substrate
 cutter with an upper round knife and a lower straight blade. When dividing the board, the PCB is fixed on the lower knife through the V groove, and the upper knife is controlled by the foot switch to realize the board separation.
2. The
automatic pcb cutting machine is driven by a stepping motor, which can separate various large or small PCB boards and aluminum substrates with pre-grooves.

3. The maximum segmentation length is 400MM, 600MM, 900MM, 1200MM, and it can also be customized beyond this size range.

4. The moving stroke of the upper circular knife (ie the length of the plate) can be preset.

5. The cutting speed can be freely switched between 300MM/S and 500MM/S.

6. The gap between the upper and lower knives can be easily adjusted by the knob.
7. The operation is safe. There is a protective blade on the round knife, which will not hurt the hand. It can also be equipped with an infrared sensing device (safety light curtain). When a human hand or a foreign object enters the working area, the knife will automatically stop to protect the machine and prevent work injuries.

8. The upper circular knife and the lower straight knife are made of SKD-11 material imported from Japan, which is hard and wear-resistant, has a long service life, and has small plate-splitting stress to prevent cracking of solder joints.
9. cutting PCB thickness: 0.5MM-3.2MM.
10. The remaining PCB thickness at the V slot: standard 1/3 PC board thickness, MIN-0.2MM, MAX-0.8MM. 11. The minimum depth C of the V groove is 0.25MM, and the external dimension added after separation: 0.1MM-0.2MM.


Desktop PCB Cutting Machine Economy PCB Laser Cutter Stepping Motor Driven 0




Operation Manual

I. Notes:

* Before using the  automatic pcb cutting machine, please read this manual carefully, and it will help you operate it smoothly.

* Do not remove the guard around the blade under any circumstance, in order not to cause any danger

* The machine is only designed for circuit board with pre-scored V-cut, do not use in other purposes.

* When operating this machine, do not wear too loose clothes. Long hair should be tied up to prevent it from being entangled.







II. Parts name of the machine (see Figures 1 and 2):







1. Plate mode tuning knob

2.Power indicator and the origin

3.Plate trip button

4. High/low speed switch

5. Emergency stop switch

6. Upper blade

7. Guard of upper blade

8. Height tuning knob of upper blade

9. Upper blade seat

10. Lower blade

11. Outer tray

12. Guard of lower blade

13. Side panel

14. Manual knob screw

15. Height limiter of upper blade



III. Technical indicators:



Maximum plate length  : unlimited

Thickness of plate: 0.2-5.0mm

Plate feeding speed: 300-500mm/ second

Blade material: SK61D high speed steel

Operating temperature: 10-35 ℃ Storage temperature: -20-50 ℃

Power supply: 230V110V,50HZ/60HZ,40W

 size: 650mm*340mm*430mm

 weight: 49KG





IV. Preparation before installation and use of the machine

1. Check the objects in the packing box, including the following parts: host, manual, power wire, pedal switch and hexagonal wrench for tuning.

2. Remove the packing bag of the machine, place it onto the solid work bench, and wipe antirust grease on the blade.

3. The machine must be reliably earthed to prevent the damage by static electricity to the components on the circuit board. If the ground in the power socket is reliable and effective, the machine will be reliably earthed once it is powered.

4. Fix the outer tray (11) to the machine with two fixing screws, adjust the height of the components on the circuit board to adjust it to a suitable height, and manually lock the tray knob screw.

5. Plug the pedal switch into the corresponding socket at the back of the machine, to ensure the supply power is correct before powered.

V. Adjustment of machine:

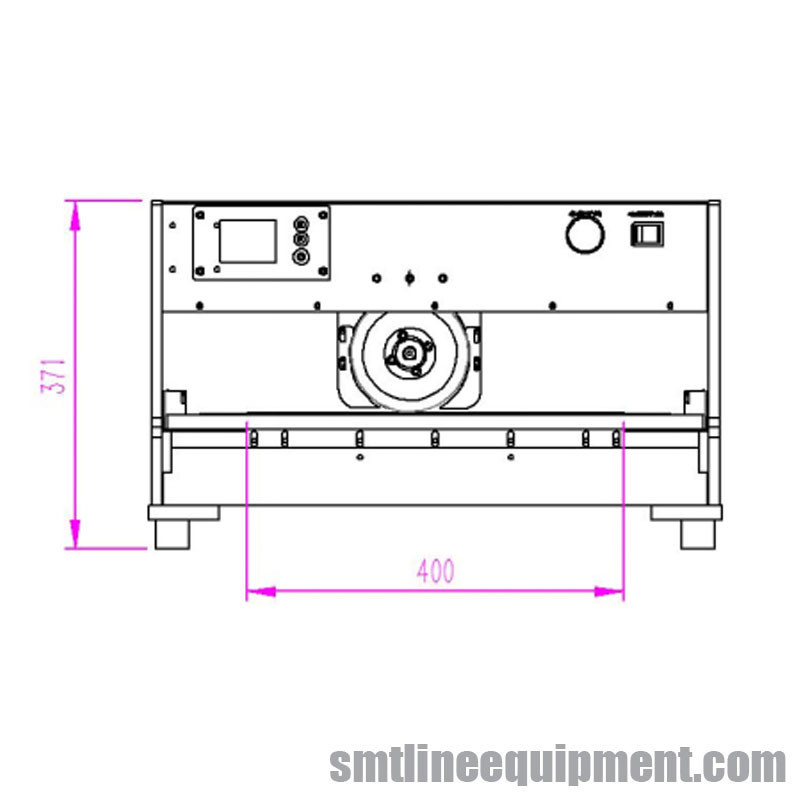

1. Ensure the components on the circuit board will not collide with the body and blade. See Figure 1 for the dimensions of the machine. The height of the components on the circuit board will not exceed the scope. If the components on the circuit board touch the blade, contact us to pre-process the blade to avoid the cutting of components.

2. According to the thickness of the circuit board, adjust the height of the upper blade by adjusting the knob.





Desktop PCB Cutting Machine Economy PCB Laser Cutter Stepping Motor Driven 1

VII. Daily maintenance of machine:

During the use of the machine, the maintenance work is quite simple. Keep the machine clean, and paint the anti-rust grease on the upper and lower blades on a regular basis. Designate a person responsible for the operation and maintenance, to ensure the machine precision. Do not use or store it under high or low temperature (see Section 3).



VIII. Replacement of the blade:

After long use of the machine, if the blade is damaged, loose the adjusting knob screw (16), to remove the damaged old upper blade; if the lower blade is damaged, remove the inner tray (13), loose the four screws on the lower blade, to remove the damaged old lower blade.

A. Instruction of the control panel:

1. The high / low speed switch is a speed control switch, including slow and fast speeds. Before using, set it to the slow speed, and when the operators become skillful, set it to the fast speed, in order to ensure the quality of plates.

2. The mode switch is a system switch, including the foot or spot movement. In the mode of the former mode, the indicating light will flicker and alarm when it does not reach the preset travel. Cancel the alarm and continue the work.

3. The emergency stop is the emergency stop button, and can be used as the panel.

4. After the completion of the equipment use, set the upper blade back to the original point before cutting off the power to ensure safety.

B. Operation instruction:

1. Connect to the power supply and start the switch. Indicator lights 0 and 400/600 flash, press the button corresponding to the flashing light, the light will on continuously. Press the foot switch, and the upper blade will return to the origin and can move between 0 - 400/600. Touch key 0 or key 400/600 to allow the indicating light to flash, and touch 100/150. 200/300. 300/450. Any key can allow the corresponding two lights to make them on constantly, then the upper blade travels between these two lights and the upper blade can travel between any points of 0-400/600.

2. Adjust the gap between the upper and lower blades, generally between 0.1 and 0.2. The gap between the upper positioning blade and lower positioning blade is generally equal to the thickness of PC board.

3. The upper and lower cutters must be in the same plane, and the error cannot exceed 0.1mm.

4. Adjusting method of eccentric distance

5. The working platform can be adjusted upward or downward.

6. Set the cutting travel and speed, and setting method shall follow the adjustment method mentioned above.

7. Step on the pedal switch, and try sometimes. In case of no abnormity, formal work can be started.

C. Basic maintenance:

1. After the completion of the work, please turn off the power supply and remove scraps.

2. Pay attention to the protection of upper and lower cutters.

3. When the machine is out of work for a long time, please remove the upper and lower cutters and coat with oil to protect. Please wipe it before use.

4. Pay attention to checking the fastening of all screws
