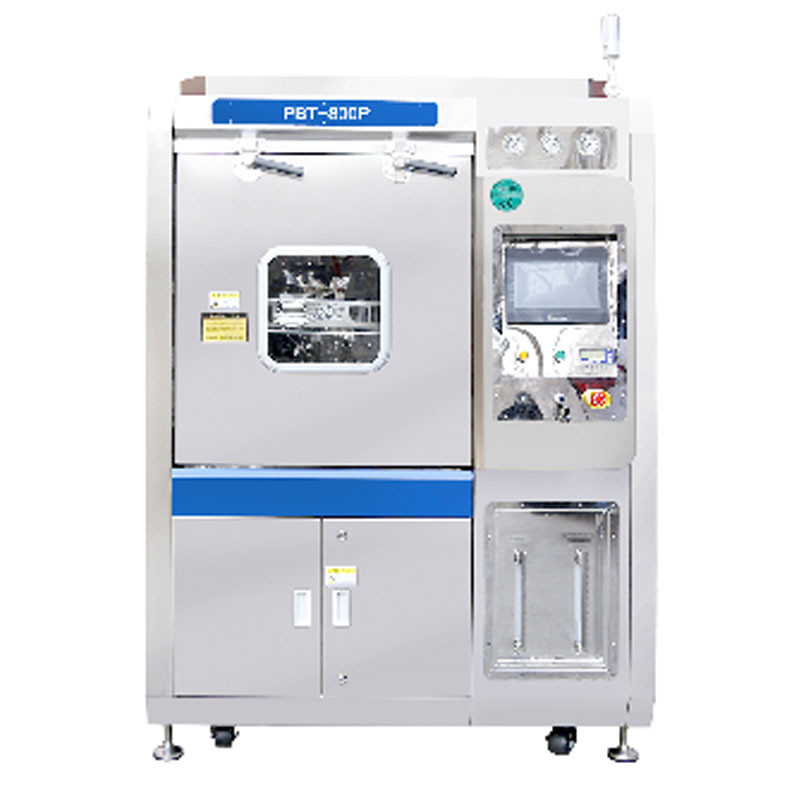

Environmental Protection SMT Line Equipment Water Based stencil washing machine

Environmental Protection SMT Line Equipment Water Based stencil washing machine

  • High Light

    ODM SMT Line Equipment

    ,

    380v Stencil Washing Machine

    ,

    SMT Stencil Washing Machine

  • Product Name
    Stencil Cleaning Machine
  • Product Model
    PBT-1000XS
  • Manufacturer
    CNSMT
  • Cleaning Area Size
    750mm(L) ×750mm(W) × 40mm(H)
  • Transfer Height
    750mm
  • Machine Size
    1600mm(L) ×1500mm(W) × 1980mm(H)
  • Voltage
    380v
  • Lead Time
    3-5days
  • Place Of Origin
    Shenzhen,China
  • Weight
    850kg
  • Warranty
    1YEAR
  • Place of Origin
    China
  • Brand Name
    CNSMT
  • Certification
    CE- stencil cleaning machine
  • Model Number
    PBT-1000XS
  • Minimum Order Quantity
    1
  • Price
    500
  • Packaging Details
    Standard woodenbox
  • Delivery Time
    3-4days
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union, MoneyGram
  • Supply Ability
    5perday

Environmental Protection SMT Line Equipment Water Based stencil washing machine


Environmental Protection SMT Line Equipment Water Based Stencil Washing Machine



Environmental protection water-based stencil cleaning machine



Specification:



Cleaning area: The cleaning tank is used to recover and store the cleaning fluid, and perform 4-level filtering, heating and monitoring, and level monitoring of the cleaning fluid.
Washing water pump: 4KW (1), 4 spray arms, 80 nozzles;
Liquid storage tank volume: ≤ 120L (1 piece);
Filtering device: stainless steel filter screen 1mm (2 pieces), liquid tank filter bag: 50 mesh (1 piece), cleaning online filter element 0.45UM (3 pieces);
Heating power: 9KW (1 bar), heating temperature: room temperature-80°C (adjustable);
Liquid level protection: low, middle, stop, over limit;
Spray pressure: 0.1-0.6Mpa (adjustable)

Rinsing area: The rinsing water storage tank is used to recover the stored water, and perform 4-level filtering, heating and monitoring, and level monitoring of the rinsing water.
Rinsing water pump: 4 KW (1) spray arms, 4 spray arms, 80 nozzles;
Volume of rinsing water storage tank: ≤120L (1 unit);
Heating power of rinsing water tank: 9KW (1 bar); heating temperature: room temperature-80°C (adjustable);
Filtering device: stainless steel filter screen 1mm (2 pieces), water tank filter bag: 50 mesh (1 piece), rinsing online filter element 0.45UM (3 pieces);
Liquid level protection: low, middle, stop, over limit;
Spray pressure: 0.1-0.6Mpa (adjustable)

Drying area: The drying section is used to completely dry the product, and heat the wind + heating and temperature monitoring.
Air knife fan: 12.5KW (1 piece), stainless steel heating tube: 5.4KW (1 piece), 4 air cutting air knives, heating temperature: room temperature-60°C (adjustable);

Up and down running device on the screen: The running device is smoothly rotated by a stepper motor, a stepper driver, and an encoder;
Stepping motor: 1 set; Stepping driver: 400W (1), 1 encoder;




Cleaning area size: 750mm(L) ×750mm(W) ×40mm(H) (Clean 2 stencils each time)
Appearance size of equipment: 1600mm(L) ×1500mm(W) ×1980mm(H)
Nozzles in cleaning area: 80 nozzles, 304 stainless steel, fan-shaped 65°
Nozzles in rinsing zone: 80 nozzles, 304 stainless steel, fan-shaped 65°
Drying area: 6 air knives, 304 stainless steel
Cleaning size range setting: 50—750mm
Cleaning time: 0~100 minutes (adjustable)
Rinse time: 0~100 minutes (adjustable)
Drying time: 0~100 minutes (adjustable)
Power/Air source: Three-phase five-wire system, 380V/28Kw (rated power)/0.45Mpa-0.7Mpa
Net weight of equipment: About 850KG



Environmental Protection SMT Line Equipment Water Based stencil washing machine 0

Packing & Delivery




Environmental Protection SMT Line Equipment Water Based stencil washing machine 1

Certification



Environmental Protection SMT Line Equipment Water Based stencil washing machine 2

Company Information


CNSMT is the leading manufacturer and supplieir for SMT machines and Solution with over 10 years' experience in China. And we can also do OEM&ODM for SMT traders, we have vast of sources in SMT field,even you need used or new SMT equipments or other parts, we can help you get the best quality and competitive cost machines.

What we can do for you:



※ We have our own factory make SMT equipments and devices
※ We have a professional technich engineer team for produce machines

※ We can customize variety of SMT machines for you according your requirements

We buy and sell used and new SMT equipments all over the world

※ We provide you SMT full line machines and export to worldwide
※ Becoming the most reliable Chinese partner for you.



FAQ:


1. Are you factory?

Yes, we are factory supplier focus on humidity control for 14 years.



2. Can you email the catalog?

Yes, we can send you by email with whole catalog.



3. How to order online?

Confirm product (quantity, price, payment, shipping etc)---waiting for email ---confirm order---make initial payment---production finish---make balance payment---shipping
* click to learn about trade assurance


4. What about the payment way?
30% deposit, balance paid before delivery -- amount > USD5,000
100% deposit -- amount < USD5,000




5. What's the shipping way and timing?
We suggest to ship by sea to get cheapest rate, voyage date to America around 30~40 days, to Europe 25~30 days, to Asia and Austrilia 7~15 days. Click here to get exact timing.


6. What's the warranty item?
Warranty time normally is 12 months, if you want to extend the warranty time to 24 months, the value will be 10% more of your order.


7. Can I visit your factory?

Yes sure, welcome to visit our factory to get more profit.


8. How to contact with your factory?
Send inquiry in below form or send mail or call to select your way. Click here



9. Can you customize the product?
Yes, we can customize any products according to customer's requirements.

10. Which payment terms are you doing?
PayPal, West Union, T/T, (100% payment in advance.)

11. Which shipment is available?
By sea, by air ,by express or as your requirement.

12. Which country you have been exported?
We have been exported to many countries, all most all around the world, like Malaysia, Vietnam, Thailand, United States, France, Spain, Mexico, Dubai, Japan, Korea, Germany, Porland Etc.






Environmental Protection SMT Line Equipment Water Based stencil washing machine 3
