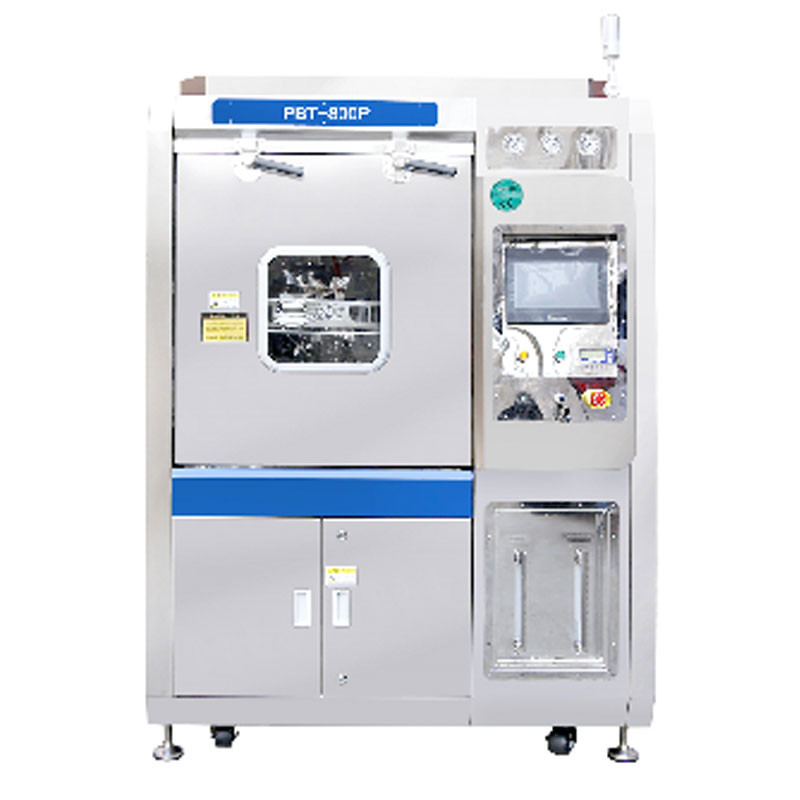

0.6Mpa SMT Line Equipment 550mm PCBA Offline Cleaning Machine

0.6Mpa SMT Line Equipment 550mm PCBA Offline Cleaning Machine

  • High Light

    0.6Mpa SMT Line Equipment

    ,

    550mm SMT Line Equipment

    ,

    0.6Mpa pcb cleaning machine

  • Product Name
    PCBA Offline Cleaning Machine
  • Product Model
    PBT-800P
  • Manufacturer
    CNSMT
  • Cleaning Area Size
    750mm(L) ×750mm(W) × 40mm(H)
  • NOZZLE
    28 Nozzles, 304 Stainless Steel, Fan-shaped 65°
  • Adjust Range
    400—550mm
  • Machine Size
    950mm(L) ×800mm(W) × 1680mm(H)
  • Voltage
    380v
  • Lead Time
    3-5days
  • Place Of Origin
    Shenzhen,China
  • Weight
    590kg
  • Warranty
    1YEAR
  • Place of Origin
    China
  • Brand Name
    CNSMT
  • Certification
    CE- PCBA offline cleaning machine
  • Model Number
    PBT-800P
  • Minimum Order Quantity
    1
  • Price
    500
  • Packaging Details
    Standard woodenbox
  • Delivery Time
    3-4days
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union, MoneyGram
  • Supply Ability
    5perday

0.6Mpa SMT Line Equipment 550mm PCBA Offline Cleaning Machine


0.6Mpa SMT Line Equipment 550mm PCBA Offline Cleaning Machine



SMT Stencil cleaning machine, High quality





Product Description


Cleaning area: The cleaning tank is used to recover and store the cleaning fluid, and perform 3-level filtering, heating and monitoring, and level monitoring of the cleaning fluid.


Washing water pump: 5.5KW (1), 4 spray arms, 56 nozzles;


Liquid storage tank volume: ≤ 70L (1 piece);


Filtering device: stainless steel filter screen 1mm (2 pieces), cleaning and recycling filter element 0.45UM (1 piece);


Heating power: 9KW (1 bar), heating temperature: room temperature-70 ℃ (adjustable);


Liquid level protection: low, middle, stop, over limit;


Spray pressure: 0.1-0.6Mpa (adjustable)



Rinsing area: The rinsing water storage tank is used to recover the stored water, and perform open-loop rinsing, heating and monitoring, and level monitoring of the rinsing water.


Rinsing water pump: 5.5KW (shared cleaning water pump) 4 spray arms, 56 nozzles (shared cleaning);


Tank volume of rinsing spray chamber: ≤20L (1 unit);


Heating power of rinsing spray chamber box: 6KW (1 bar); heating temperature: room temperature-40°C (adjustable);


Filter device: stainless steel filter screen 1mm (2 pieces), online rinsing and discharge filter element 0.45UM (1 piece);


Liquid level protection: low, middle, stop, over limit;


Spray pressure: 0.1-0.6Mpa (adjustable)



Drying area: The drying section is used to completely dry the product, and heat the wind + heating and temperature monitoring.


Drying fan: 0.75KW (1 piece), stainless steel heating tube: 6KW (1 piece), heating temperature: room temperature-99°C (adjustable);



Concentration ratio and concentration compensation device: 1 concentration ratio pump, 1 concentration compensation pump,


1 concentrated liquid tank (liquid storage tank volume: ≤ 30L, liquid level protection: low, middle, stop, over-limit);



Specification


content parameter
Cleaning area size: 610mm(L) ×560mm(W) ×140mm(H) Cleaning basket: 3 layers
Appearance size of equipment: 1360mm(L) ×1400mm(W) × 1950mm(H)
Nozzles for cleaning/rinsing zone: 54 nozzles, 304 stainless steel, fan-shaped 65°
Blue box moving range: 40mm
Rinsing resistivity meter monitoring range: 0~18MΩ
Cleaning time: 0~50 minutes (adjustable)
Rinse time: 0~50 minutes (adjustable)
Rinsing times: 0-50 times (adjustable)
Drying time: 0~50 minutes (adjustable)
Power/Air source: Three-phase five-wire system, 380V/14.5Kw (rated power)/0.45Mpa-0.7Mpa
Net weight of equipment: About 610KG



PBT-800P is used in:

The automatic water cleaning machine is an integrated high-end cleaning machine with energy saving, environmental protection and batch cleaning, which can automatically complete cleaning, rinsing (open loop/closed loop), and drying functions;

a. Mainly used for the cleaning of multi-variety, small batch PCBA boards for coating products such as military industry, aviation, aerospace electronics, medical, automotive new energy, automobiles, and high-end precision products.
It can effectively clean the residual rosin flux, water-soluble flux, no-clean flux/solder paste and other organic and inorganic contaminants on the surface of SMT/THT PCBA after soldering;

b. Cleaning of solder paste on PCB boards with poor printing, cleaning of squeegee solder paste, etc.
