I PULSE Pneumatic SMT Feeder Calibration 110v for LED display

I PULSE Pneumatic SMT Feeder Calibration 110v For LED Display

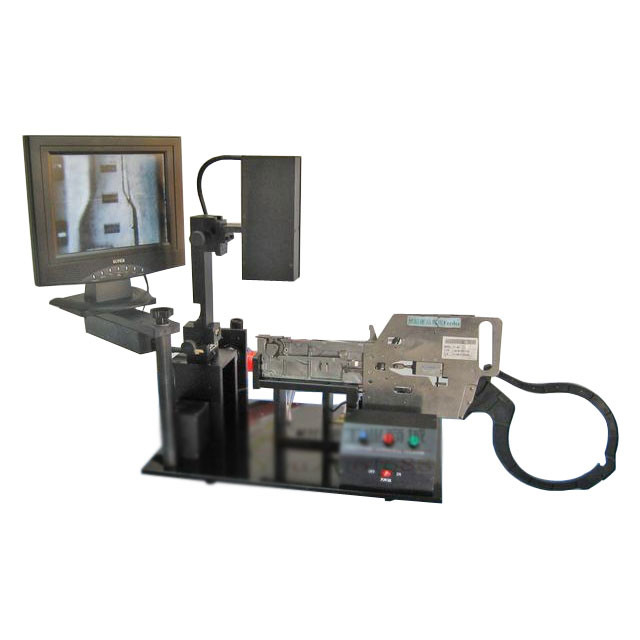

I-PULSE pneumatic feeder calibration instrument,SMT feeder jig

Product name: Tianlong I-pulse feeder calibration instrument

Product weight: about 35KG

Product size (mm): L500*W350*H500

Calibration mode: electric/pneumatic

Applicable models: Tianlong I-pulse series

Usage: FEEDER calibration instrument is used for the calibration of I-pulse model FEEDER


I-pulse FEEDER calibration instrument

1. The structure of the whole machine is simplified, the operation is simple, and the function is optimized. And use high-precision gears to ensure position stability and greatly improve work efficiency.


2. Accuracy testing. Reclaiming position, height, and pressure bar height can all be accurately measured. Can better grasp the quality status.


3. The use of color LED display, LED lighting, 50 times magnification CCD camera, make the structure more compact and beautiful. Effectively reduce eye fatigue and improve the quality of work.


4. It is easy to operate, and can simulate the placement machine, automatically and continuously observe the picking position, can more clearly grasp the continuous running quality of FEEDER, so as to more effectively control the throwing rate.


Functions and features:

1. X-Y-Z axis adjustment;

2. Axis camera that can be adjusted directly;

3. Built-in 220V DC power supply;

4. Cross cursor with scale;

5. Auto and step function;

6. LED display;

7. Feeder control fixture;

8. 8*2mm/12*4mm/16*8mm and 24*8mm feeder control belt.




SMT FEEDER calibrator pneumatic

1. One 12-inch LCD monitor;

2. A set of 50x color CCD camera with scale cross;

3. Lighting

4. A correction ruler;

5. A set of X, Y, Z three-axis adjustment platform;

6. Power control box;

7. Feida fixed seat

8. High-pressure gas pipeline (6 meters);

9. Air pressure control table;

10. 220V power cord

11. One manual;
