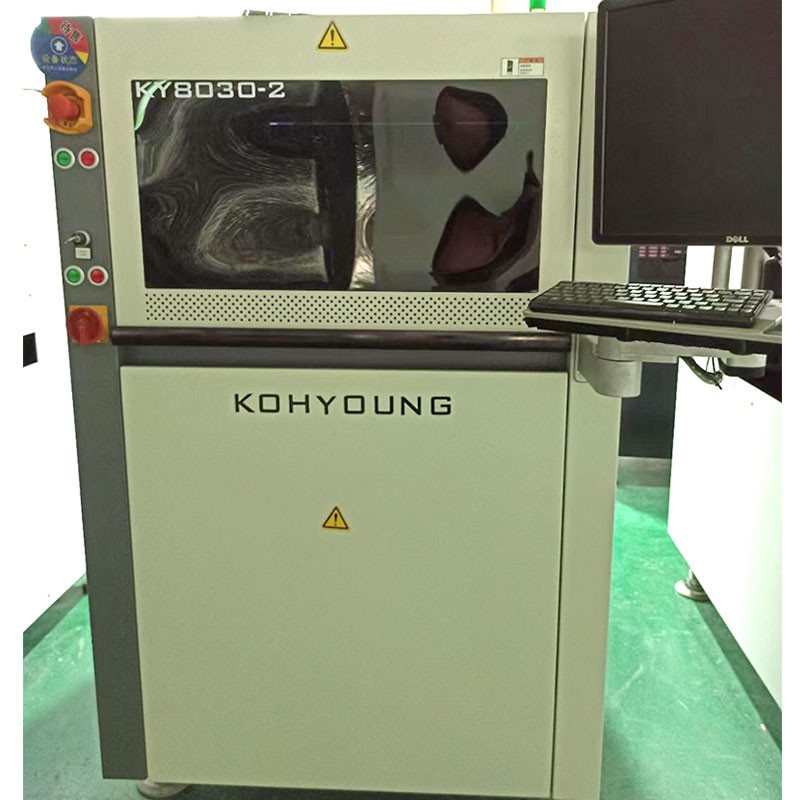

KY8030-2 PCB 3D Solder Paste Inspection Machine SMT Inline High End

KY8030-2 PCB 3D Solder Paste Inspection Machine SMT Inline High End

  • High Light

    KY8030 Solder Paste Inspection Machine

    ,

    3D Solder Paste Inspection Machine

    ,

    KY8030 smt spi machine

  • Product Name
    Online SPI
  • Product Model
    KY8030-2
  • Supplier
    CNSMT
  • PCB Size
    350mm*350mm
  • Adaptive Minimum Component
    0201 01005
  • CAMERA
    12/15/18option
  • Air Pressure
    0.5Mpa
  • Inspection Speed
    0,3s/FOV
  • Lead Time
    3-5days
  • Machine Size
    820x1335x1627mm
  • Weight
    680kg
  • Power
    AC220V/110, 38050/60Hz
  • Place of Origin
    China
  • Brand Name
    CNSMT
  • Certification
    CE-Online SPI
  • Model Number
    KY8030-2
  • Minimum Order Quantity
    1
  • Price
    1000
  • Packaging Details
    Standard woodenbox
  • Delivery Time
    3-4days
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union, MoneyGram
  • Supply Ability
    5perday

KY8030-2 PCB 3D Solder Paste Inspection Machine SMT Inline High End

KY8030-2 PCB 3D Solder Paste Inspection Machine SMT Inline High End



KY8030-2 Inline SPI, High-end PCB solder paste inspection machine


3 times faster
Bar code that can recognize multiple puzzles
Bar code that can recognize multiple puzzles
Process optimization through 3D SPI + 3D AOI connection
With the ability to automatically compensate when the PCB board is bent
Accurately measure the area of the printed solder paste and calculate the volume of the solder paste
Gao Yong uses dual light sources to completely solve the shadow problem
Any program can be edited within 10 minutes
Unique SPI technology using 2D+3D technology

Required inspection items for 3D SPI
Require   Solution
Solve the shadow problem   Moore's article technology to eliminate shadows & bidirectional illumination light system
Real-time compensation of plate bending (2D+3D scheme)   • Board bending compensation (Pad Referenceing+Z-Tracking)
Easy to operate   • Renewal GUI, color 3D picture
Foreign body detection   • 3D foreign body detection function (optional)

Test items Test items • Volume, area, adjustment, offset, bridging, shape, coplanarity
  Bad type • Missing printing, more tin, less tin, even tin, bad shape, offset, coplanarity

Detection performance Camera resolution 15μm 20μm 25μm
  FOV/size 30×30mm(1.18×1.18 inch) 40×40mm(1.57×1.57 inch) 50×50mm(1.97×1.97 inch)
  Full 3D inspection speed 22.5-56.1cm²/s (Inspection speed varies with PCB and inspection conditions).
  Minimum solder paste pitch 100μm (3.94 mils) 150μm(5.91 mils) 200μm(7.87 mils)
  camera • 4 megapixel camera
  illumination • IR-RGB LED (option)
  Z axis resolution 0.37μm
  High accuracy (correction module) -1μm
  01005 detection capability <10% at 6 Ó
  Gage R&R(±50% tolerance)
  Maximum detection size 10×10mm
  Maximum detection height • 400μm (option 2mm) 0.39×0.39inch
  Minimum land pitch • 100μm (150μm solder paste height) 15.75mils(选项78.74 mils)
  Corresponding to various color substrates • Can 3.94 mils(5.91mils锡膏高度)

Substrate correspondence Track width adjustment • automatic
  Track fixing method • Fixed front rail/fixed rear rail (fixed at shipment)

software Supported input format • Gerber data (274X,274D),ODB++ (option)
  Programming software • ePM-SPI
  Statistical management tools SPC Plus:
    Histogram,X-bar&R-Chart,X-bar&S-Chart,Cp&Cpk,%Gage R&R
    Real-time SPC&Multiple Display
    SPC alarm
    KSMART remote monitoring system
  Convenience of operation • Generate Library according to component size to set inspection conditions
    KYCal: Automatically calibrate camera/lighting/height
  operating system • Windows 7 Ultimate 64 bit

Add-on •1D&2D Handy Barcode Reader •Standrad Calibration Target <span st
Solutions



Product Features

3D solder paste inspection (dual lighting)

High-speed and efficient production line optimization 3D SPI

Use dual-channel lighting to solve the shadow problem

In order to ensure the rapid printing process of cases, it is basically equipped with Easy UI and SPC Plus programs

M, L, XL models and Dual Lane systems are available.
