CE Approved SMT Line Equipment 736mm Stencil Inspection Machine

CE Approved SMT Line Equipment 736mm Stencil Inspection Machine

  • High Light

    CE SMT Line Equipment

    ,

    ODM Stencil Inspection Machine

    ,

    736mm Stencil Inspection Machine

  • Product Name
    SMT Stencil Inspection Machine
  • Product Model
    SMT-SC800
  • Supplier
    CNSMT
  • Work Size
    250-736mm
  • Color
    Black/white
  • Application
    SMT Stencil Inspection
  • Size
    200/300MM /400/500/600/736mm
  • Material
    Stainless Steel/plastic
  • Diamension
    L820*W820*H920MM
  • Weight
    55kg
  • Place of Origin
    China
  • Brand Name
    CNSMT
  • Certification
    CE-SMT stencil inspection machine
  • Model Number
    SMT-SC800
  • Minimum Order Quantity
    1
  • Price
    500
  • Packaging Details
    Standard woodenbox
  • Delivery Time
    3-4days
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union, MoneyGram
  • Supply Ability
    5perday

CE Approved SMT Line Equipment 736mm Stencil Inspection Machine

CE Approved SMT Line Equipment 736mm Stencil Inspection Machine

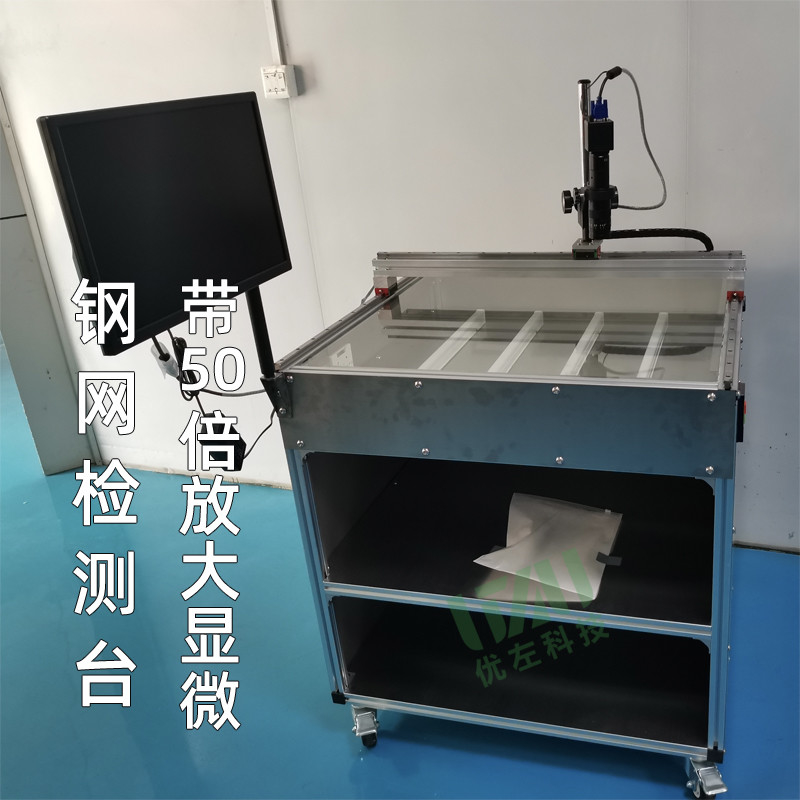

SMT Stencil Inspection Machine, Stainless Steel Mesh Inspection Station



SMT stencil inspection bench.


Product brand: CNSMT Product name: SMT stencil inspection machine
Product size: 830*830 with wheel height 880MM Product material: high-quality stainless steel + aluminum profile
Magnification: 50 times
Lamp fittings: 4 pieces (8W/piece)

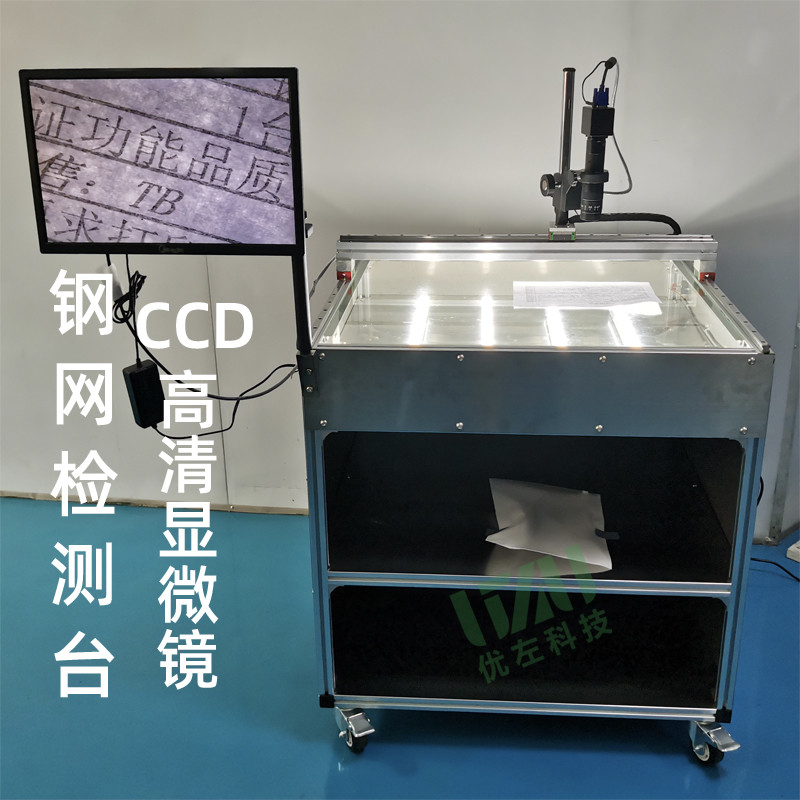

Microscope head: CCD high-definition microscope + liquid crystal display Applicable steel mesh: 736*736MM
Range of use: This product is used in steel mesh and screen printing screen, this product is equipped with electron microscope equipment
It can help customers visually detect the defective defects on the product and solve the problem in time.



Multifunctional screen inspection magnifying instrument:



Application range:

This product is used in the inspection of stencil, screen printing screens, negatives, SMT, circuit boards, printing, LED mobile phone touch screen covers and other industry products. This product is equipped with electron microscope equipment, which can help customers intuitively detect product defects and Defects to facilitate the timely resolution of the problem.



Product parameters:



1. Equipment size 110*100*140MM

2. Material: aluminum or stainless steel

3. Light source: customized LED energy-saving tube

4. Size: 800*800MM (size can be customized according to customer requirements)

5. Microscope: 5-10 million pixels (customizable)

6. Display: 17-27 inch high-definition display (customizable)

7. Guide rail: brand guide rail (to ensure that the microscope automatically adjusts the front and rear left, right, up and down and slides smoothly)

8. Glass: tempered white glass + milky white diffuser

Features:

Detection width: no more than 1000MM;

Detection defect types: dirt, damage, impurities, blur, ink dots, burrs, residue, offset, poor overprinting, scratches, bubbles, glue overflow, creases, etc.;

Device Description:

The software includes the function of collecting and processing photos, which can take pictures and videos

The machine structure adopts 30*30 1.0mm special-shaped aluminum material, which is stable and does not shake when looking for inspection points.

The stencil is placed on a flat surface to facilitate movement and inspection during inspection.

The movable size of the camera: X800*Y800*Z30mm (customizable)

Inspection instrument specifications: length 110 * width 100 * height 140mm (customizable)
