400mm SMT Line Equipment Stainless steel Stencil Cart 6 Layers

400mm SMT Line Equipment Stainless steel Stencil Cart 6 Layers

  • High Light

    400mm SMT Line Equipment

    ,

    Stainless steel SMT Stencil Cart

    ,

    SMT Stencil Cart

  • Product Name
    SMT Stencil Cart
  • Product Model
    CNSMT-ST500
  • Supplier
    CNSMT
  • Work Temperature
    -10℃~+50℃
  • Layers
    3/4/5/6 Option
  • Application
    SMT PCB Stencil
  • Stencil Size
    300/350/400/500/550/736
  • Material
    Stainless Steel
  • Diamension
    700mm×300mm×500mm Or Customize
  • Weight
    45kg
  • Place of Origin
    China
  • Brand Name
    CNSMT
  • Certification
    CE-SMT Stencil Trolley
  • Model Number
    PCB board Stencil Storage
  • Minimum Order Quantity
    1
  • Price
    500
  • Packaging Details
    Standard woodenbox
  • Delivery Time
    3-4days
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union, MoneyGram
  • Supply Ability
    5perday

400mm SMT Line Equipment Stainless steel Stencil Cart 6 Layers

400mm SMT Line Equipment Stainless Steel Stencil Cart 6 Layers



SMT Stencil Cart, Stencil rack, PCB board Stencil Storage/Trolley



This SMT Stencil Cart is used for storage SMT PCB all the models of the stencil, if your SMT factory has a lot of stencils and not space storage them, Then you must buy a such kind of trolley.



It will greatly save your space , and you will easy to find it once you need one of them again, you can make some serial numbers on each of the SMT stencil, and then make a excel list save in your computer.



After that, you just need to search the stencil name or serial number, 1 or 2 seconds will find the stencil.



We are the manufactuer of the SMT stencil cart in China, we can make all the size and models of the stencil cart, you just need to tell us how many stencils and how many layers need, our engineer will design it accordingly.



If you you are ready to buy this kind of machine or related smt machines, kinly contact us as soon as possible!

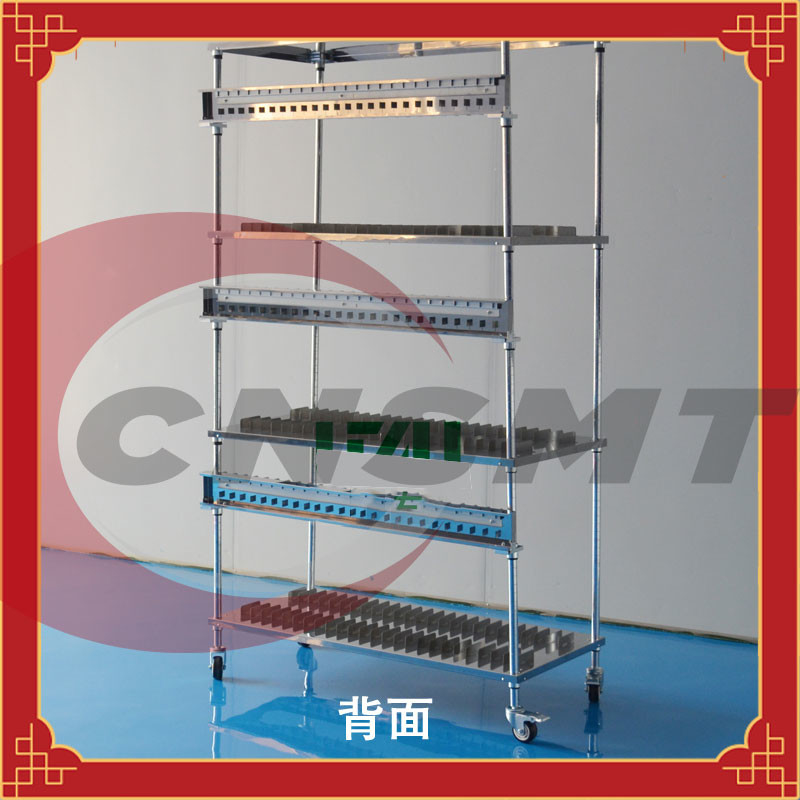

400mm SMT Line Equipment Stainless steel Stencil Cart 6 Layers 0






Different smt PCB stencil trolley size

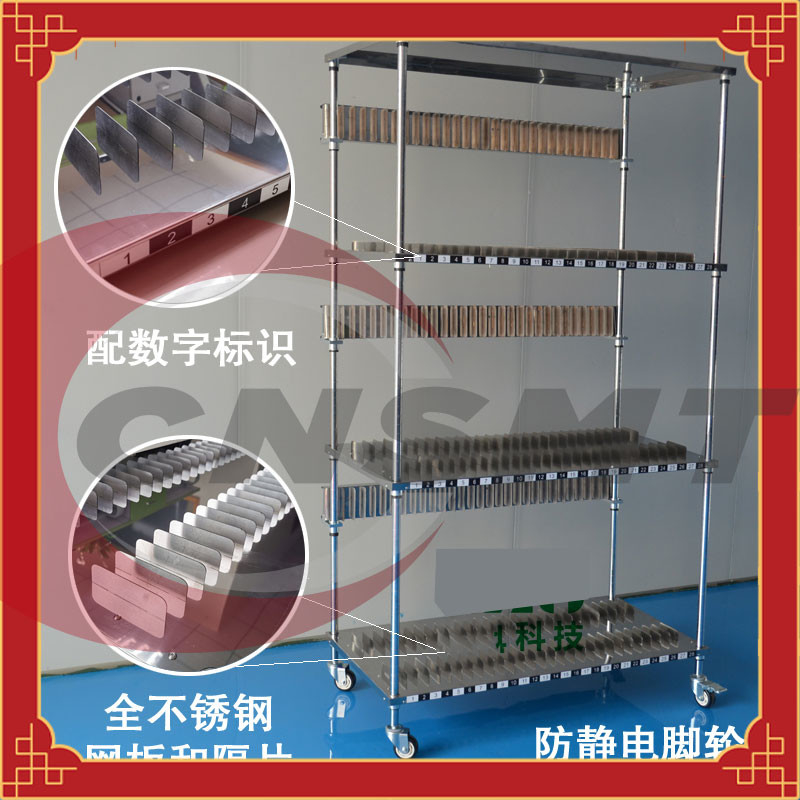

  • This smt PCB stencil is used to store the Stencil of the printing press. It is freely assembled, has multiple sizes, is easy to install, and the height can be adjusted freely. It is equipped with four anti-static wheels (two movable wheels and two brake wheels).

Specification 1!

  • L1160*W500 The actual space in each compartment is 25MM. It is recommended to put a Stencil with a thickness of about 20MM. Reserve 5MM to facilitate the entry and exit of the Stencil. Each layer can store 38 Stenciles. Specification 2:
  • L1160*W580 The actual space in each compartment is 36MM. It is recommended to put a Stencil with a thickness of about 30MM. Reserve 5MM to facilitate the entry and exit of the Stencil. Each layer can store 28 Stenciles. Specification 3:
  • L1160*W580 The actual space inside each compartment is 42MM. It is recommended to put a Stencil with a thickness of about 35MM. Reserve 5MM to facilitate the entry and exit of the Stencil. Each layer can store 24 Stenciles. Specification 4:
  • L1160*W750 The actual space inside each compartment is 42MM. It is recommended to put a Stencil with a thickness of about 35MM, and reserve 5MM to facilitate the entry and exit of the Stencil. Each layer can store 24 Stenciles. Specification 5:
  • L1160*W750 The actual space in each compartment is 50MM. It is recommended to put a Stencil with a thickness of about 45MM. Reserve 5MM to facilitate the entry and exit of the Stencil. Each layer can store 20 Stenciles.



Size option:



1160*500*1600*2 layers, each grid spacing 25MM
1160*500*1700*3 layers, each grid spacing 25MM
1160*500*2200*4 layers, each grid spacing 25MM
1160*580*1600*2 layers with 35MM spacing per grid
1160*580*2200*3 layers with 35MM spacing per grid
1160*580*2200*4 layers, each grid spacing 35MM
1160*580*1600*2 layers, each grid spacing 42MM
1160*580*2200*3 layers, each grid spacing 42MM
1160*580*2200*4 layers, each grid spacing 42MM
1160*750*1800*2 layer, each grid spacing 42MM
1160*750*1800*2 layer, each grid spacing 50MM
1160*750*2200*3 layers, each grid spacing 42MM
500/580 camel mountain peak net + 500/580 back net
1160*750*2200*3 layer, each grid spacing 50MM
750 camel mountain peak net +750 back net
