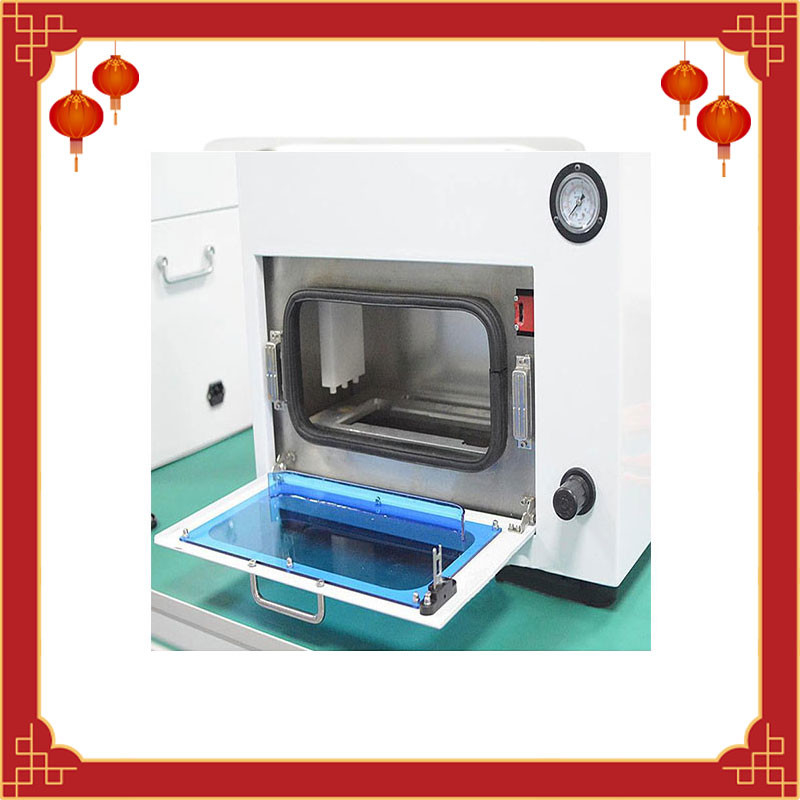

220V AC 200w SMT Nozzle Cleaning Machine for JUKI pick and place machine

220V AC 200w SMT Nozzle Cleaning Machine for JUKI pick and place machine

  • High Light

    200w SMT Nozzle Cleaning Machine

    ,

    200w smt nozzle cleaner

    ,

    220V SMT Nozzle Cleaning Machine

  • Product Name
    Nozzle Cleaning Machine
  • Product Model
    03I/03IX/02I
  • Supplier
    CNSMT
  • PCB MAX SIZE
    510mm* (X) X 508.5mm (Y)
  • Operating System
    WINDOWS XP
  • Machine Alignment Capability
    >2 Cpk @ +/- 12.5µm, 6 Sigma
  • Process Alignment Capability
    >2 Cpk @ +/- 25µm, 6 Sigma
  • Core Cycle Time
    12 Secs (11 Secs With HTC Option)
  • Printer Construction
    One Piece Optimised Welded Frame
  • Machine Control
    Motion Control Using CAN BUS Network
  • Machine Size
    2060mm X 1500mm X 1570mm
  • Weight
    800kg
  • Place of Origin
    China
  • Brand Name
    CNSMT
  • Certification
    CE-NOZZLE CLEAN
  • Model Number
    HN-NC207
  • Minimum Order Quantity
    1
  • Price
    1
  • Packaging Details
    Standard woodenbox
  • Delivery Time
    3-4days
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union, MoneyGram
  • Supply Ability
    5perday

220V AC 200w SMT Nozzle Cleaning Machine for JUKI pick and place machine

220V AC 200w SMT Nozzle Cleaning Machine For JUKI Pick And Place Machine​



SMT Nozzle Cleaning Machine



CNSMT does not only focus in providing major SMT equipment and accessories, but we also provide the best cleaning machines that will go hand in hand with your SMT line of operation. We are also offering nozzle cleaning machines that comes in a wide variety of features that will match any type of cleaning needs.



NOZZLE CLEAN MACHINE SPECIFICATION:
Dimensions (L*W*H) 520MM×450MM×620 MM
Power supply (two-phase two-wire) 2P2W, 220VAC, 50/60Hz, 20A
Power requirements 250W
Air pressure 0.5-0.6MPa (during normal operation)
weight About 42KG
Total power 200W
way to control Touch screen + PLC
Gas source Pure compressed air
Injection pressure 0.4 MPa
Air consumption 280NL/min or less
Liquid type Industrial pure water
Liquid consumption 300cc/hour
Liquid storage capacity 800cc
Intake pipe/drain pipe ¢8 / ¢6
Nozzle tray specifications The default is a single row of 3 nozzles, 10 rows of 30 nozzles
Cleaning nozzle specifications 0402, 0201, 01005, 03015
noise 35-60 dB





Application:



  1. Yamaha placement machine nozzle
  2. JUKI pick and place machine nozzle
  3. FUJI SMT suction nozzle
  4. Samsung Mounter suction nozzle
  5. Panasonic Mounter suction nozzle
  6. Philips Mounter nozzle
  7. Mirea nozzle
  8. Sony Mounter suction nozzle
  9. Suction nozzle of Siemens placement machine
  10. Other SMT applicators

220V AC 200w SMT Nozzle Cleaning Machine for JUKI pick and place machine 0





The automatic nozzle cleaning machine can automatically complete the nozzle cleaning and blow-drying process, and is mainly used to clean and mount small components, such as: 0603, 0402, 0201, 01005 and other high-precision nozzles.


Fully automatic is the nozzle cleaning machine newly developed by our company. In the design process of the nozzle cleaning machine, we used our company's rich experience in fluid equipment development, looked forward to the development trend of the nozzle cleaning machine, and absorbed a large number of customer opinions and suggestions. Its advent created the nozzle cleaning The new concept of the machine.


The machine uses Mitsubishi PLC as the control core, adopts modular control, and adopts multiple protection measures in design, with high degree of automation, strong reliability and excellent performance. The cleaning system of this machine adopts pulse-type booster cleaning method, which is more efficient and clean than traditional models.



Main features of this machine:




○The appearance adopts streamlined design, beautiful and generous;



○Use 30 nozzles to clean at the same time to achieve high efficiency and energy saving;



○The whole inspection window is convenient for maintenance and operation;



○The parts in contact with water are all made of 304 stainless steel, which is anti-rust, anti-corrosion, firm and stable;



○Humanized design, can realize one-key start and stop on the external button;



○Using touch screen + PLC distributed control, stable and reliable performance;



○Easy to operate, friendly interface and can switch between Chinese and English at any time.



○With malfunction alarm and emergency braking system, with overload protection system;



○Use environmentally friendly and pollution-free industrial pure water (HP value 5-7 soft water);



○Centralized collection of waste, convenient for maintenance

220V AC 200w SMT Nozzle Cleaning Machine for JUKI pick and place machine 1

Compared with traditional cleaning:



1. Manual air gun



① The manual cleaning efficiency is low, the surface of the suction nozzle and the lumen cannot be cleaned, and the inner hole is easily damaged with a steel wire;



② The cleaning effect is very different;



③ The use of cleaning fluid and alcohol may penetrate and cause the reflective layer to fall off;




2. Ultrasonic cleaning



① Low cost and high efficiency;



② During the cleaning process, it is easy to cause the nozzles to collide with each other, causing the black coating on the surface to be damaged or fall off;



③ The cleaning fluid damages the surface coating of the nozzle, which greatly shortens the life of the nozzle;



④ Cannot clean the nozzle surface and lumen completely;



⑤ For the latest 01005 nozzle, the nozzle cannot be cleaned well, mainly because the inner hole of the nozzle is too small. During ultrasonic

cleaning, the vacuum bubbles cannot be discharged and the cleaning is not clean;



Economic benefits:


① Reduce the purchase cost of the nozzle;



After using the fully automatic SMT nozzle cleaning machine, it can solve the problem that the suction nozzle is too dirty and scrapped, so as to extend the service life.



② Reduce unnecessary labor;



Since the machine adopts fully automatic cleaning, no special person is required to be responsible, and the whole process is completed automatically by the machine.



③ Effectively reduce product defect rate and improve SMT productivity;



A large part of the production process is due to the dirty and uneven surface of the nozzle and the excessively dirty inner cavity, which causes throwing or placement shift, resulting in poor subsequent welding. After using the washing machine, the suction nozzle can always be protected in a new state, which greatly improves production efficiency.

220V AC 200w SMT Nozzle Cleaning Machine for JUKI pick and place machine 2

Equipment advantages



Reduce the purchase cost of the suction nozzle; after using the automatic nozzle cleaning machine, it can solve the problem that the suction nozzle is too dirty and scrapped, so as to extend the service life.



Reduce unnecessary labor; because the machine adopts fully automatic cleaning, no special person is responsible for it, and the whole process is completed automatically by the machine.



Effectively reduce product defect rate and improve SMT productivity; a large part of the production process is due to the dirty and uneven surface of the nozzle and the excessively dirty inner cavity that cause throwing or placement shift, resulting in poor subsequent welding. After using the washing machine, the suction nozzle can always be protected in a new state, which greatly improves production efficiency.



Completely solve the dirt and impurities that are difficult to clean by ultrasonic; will not be unclean due to the smaller and smaller nozzle aperture

There is no need to use chemical solvents, just use environmentally-friendly deionized water or distilled water for cleaning.



The operation is simple and convenient, automatic continuous cleaning and automatic drying;



To meet the trend of Industry 4.0 and SMT production line, the intelligent, less human, and efficient automatic nozzle cleaning machine can solve the problem of dirty and scrapped nozzles, so as to extend the service life.



Ideally, nozzle cleaning machines are used to make sure that cleaning will always be a breeze.



It uses a pulse action and pure water, so that you won’t be needing any chemical cleaning agents that can also damage your boards and other small parts in the long run. Plus, cleaning with just pure water is safer and greener to both the product and the people doing the cleaning.



Therefore, all SMT companies must consider investing in a nozzle cleaning machine to receive such benefits.



A nozzle cleaning machine is actually a particularly good investment for your SMT company.



It does not only make the cleaning work fast, but it is also very efficient, as it can clean the surfaces thoroughly in just a few pulses.



Here at CNSMT, we offer a wide variety of nozzle cleaning machines from the best brands and makers of it.

220V AC 200w SMT Nozzle Cleaning Machine for JUKI pick and place machine 3



We only carry the ones that are trusted by many, as we want all of our products to be in line with our mission, which is to be able to supply only top quality SMT line of products and accessories.



Features and functionalities of our nozzle cleaning machine will depend on the brand and model of the machine. But normally, here are the common functions of a nozzle cleaning machine:

  • Elegant, sleek, and almost compact in size, giving you the ability to move it around your factory and use it anywhere, whenever you need it.
  • It uses multiple (up to 30 nozzles) to make sure that cleaning is going to be fast and efficient.
  • It comes with a full view inspection window, for easy operation and maintenance.
  • It is made of high-quality stainless steel, coated with a corrosion resistant agent to make sure that your machine will last long even when used multiple times for a long time.
  • Easy to use start and stop buttons, making it very user-friendly during operations.
  • Some will have a touch screen panel for a more modern look.
  • It has a centralized container for the waste, for easier cleaning of the machine.

220V AC 200w SMT Nozzle Cleaning Machine for JUKI pick and place machine 4

Our line of nozzle cleaning machines will definitely come in different features and functionalities if you have specific questions about a certain model, kindly send us a message directly.



To know more about our nozzle cleaning machines, here are the different questions asked by our customers prior to making their purchase:



Question: I have been in the look out for the best nozzle cleaning machines in the market. What brands do you carry?



Answer: Here at CNSMT, we only carry the best brands of nozzle cleaning machines from the top-rated ones to the ones that are budget friendly.



Nonetheless, all brands for our nozzle cleaning machines are tested in time in terms of quality, so you do not have to worry when getting the ones that are down the line.



We just want to give you a variety of options, as we understand that each company will have their own set of budget when it comes to investing on SMT products and equipment.



Question: Is a nozzle cleaning machine easy to use?



Answer: Yes, it is! All of our nozzle cleaning machines are very user-friendly. It comes with easy to understand buttons to start and stop the cleaning process. Plus, all of our machines come with their own respective user manuals.

If further assistance is needed when it comes to operating your machine, please do not hesitate to contact us.



Question: I live overseas, are you able to ship it to me? If yes, how much will the shipping fee cost me?



Answer: We deliver worldwide. We have delivery partners who can deliver your orders fast and with maximum care.

Ideally, orders worldwide can take at a minimum of 10 days. But this may still vary depending on your actual location.

For us to be able to give you an estimate of the delivery time, please give us your exact delivery address.

We will also be able to give you a proper quote for the shipping fee once we have this information.

220V AC 200w SMT Nozzle Cleaning Machine for JUKI pick and place machine 5

Question: Can one man operate the machine?



Answer: In most cases, yes! The machine is designed to be used by a single person managing the controls / buttons.

It is not very complicated to use and understand. Nozzle cleaning machines are actually designed to make the production fast and efficient, because it decreases the amount of manpower during operations.



Question: Can it work with any type of pick and place machine nozzles?



Answer: We have different types of nozzle cleaning machines available. So whether you have a FUJI, Yamaha, Juki and other types of pick and place machines, we will be able to provide you with the best nozzle cleaning machine to clean your Pick and place machine nozzles.



Question: I would like to offer your products here in my country. May I do that?



Answer: Yes, you may! If you find our products interesting, and you feel that there is a large market and demand in your country, we will be more than happy to provide you with a steady line of supply not just for the nozzle cleaning machine, but for all other SMT equipment and accessories.

Feel free to get in touch with us, so we can provide you with a quote on bulk orders, so you may also benefit when it comes to your profit.



220V AC 200w SMT Nozzle Cleaning Machine for JUKI pick and place machine 6

If you cannot see the information that you need from the questions above, please do not hesitate to get in touch with us, so we can assist you further.



CNSMT is dedicated in bringing you the best brands with the best quality for nozzle cleaning machines. We are here to help you!
